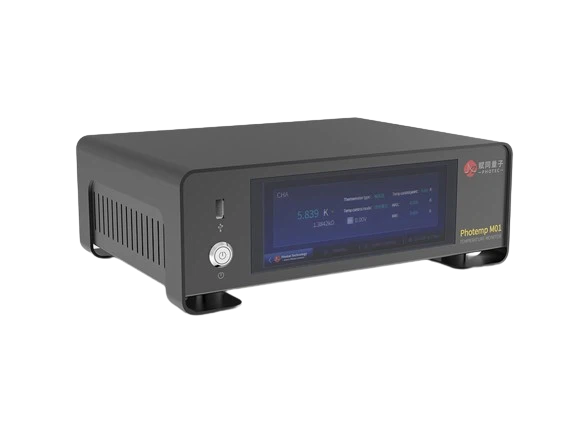

Photemp C Series Temperature Controllers
Photemp C series temperature controllers are characterized by high accuracy measurement, high adaptability and high power PID output. It is configured with up to 4 PID temperature control loops, and each loop output supports 38W (15Ω heating wire) low noise heater power. The inputs of each loop can be associated with any of the 8 thermometers and are adaptable to virtually all diode and resistance temperature sensors on the market.
Main Features
- Temperature control range: temperature measurement can be as low as 300mK, resolution up to 0.1mK;
- Number of channels: standard configuration 1\4\8-way temperature measurement channels, each temperature measurement channel is independent of each other;
- 4-way PID independent temperature control: 38W * 4
- Can realize continuous measurement and control from 300mK to 500K
- Supports multiple types of diode and resistance type temperature sensors,
- Thermometer excitation current can be adjusted in multiple steps to reduce thermometer self-heating;
- Support USB (serial port), RS485 communication.
- ASCII protocol, compatible with most manufacturers' protocols.
|
Input channels |
Standard 1, 4, 8 channels |
|
Input Accuracy |
It's about the temperature sensor. |
|
Measurement resolution |
It's about the temperature sensor. |
|
Update rate |
10 times/second |
|
Automatic range selection |
Automatically selects the appropriate range for positive or negative temperature coefficient resistance sensors. |
|
Temperature Curve |
Supports multiple calibration curves |
Sensor Input Configuration
|
Sensor Type |
Diode/Resistance |
|
Measurement Type |
4-lead differential |
|
Excitation |
Constant current with current flip function |
|
Supported Sensors |
Diode: Silicon, Gallium Arsenide |
|
Input Interface |
Db9 |
Temperature control
|
Control output channels |
1, 2, 4 channels |
|
Control Type |
Closed loop digital PID control with manual heater output or open loop control |
|
Update rate |
10/s |
|
Control Stability |
Sensor dependent |
PID control parameter control
|
P-Proportional (Gain) |
0-10000 |
|
I-integral (reset) |
0-10000 |
|
D-Differential (ratio) |
0-10000 |
|
Manual Setting Output |
0 ~ 24V, setting voltage resolution 0.01V |
Heating Output
|
Output Type |
PMW modulated 24V AC power supply |
|
Control Mode |
Closed loop digital PID control with manual heater output or open loop control |
|
Digital to analog resolution |
16-bit |
|
Maximum Power |
38W |
|
Maximum Current |
1.6A |
|
Compliance Voltage |
24V |
|
Grounding |
Output Reference Chassis Ground |
|
Heater Connector |
Dual Banana Connector |
|
Display Size |
6.8" TFT-LCD Capacitive Touch Screen |
