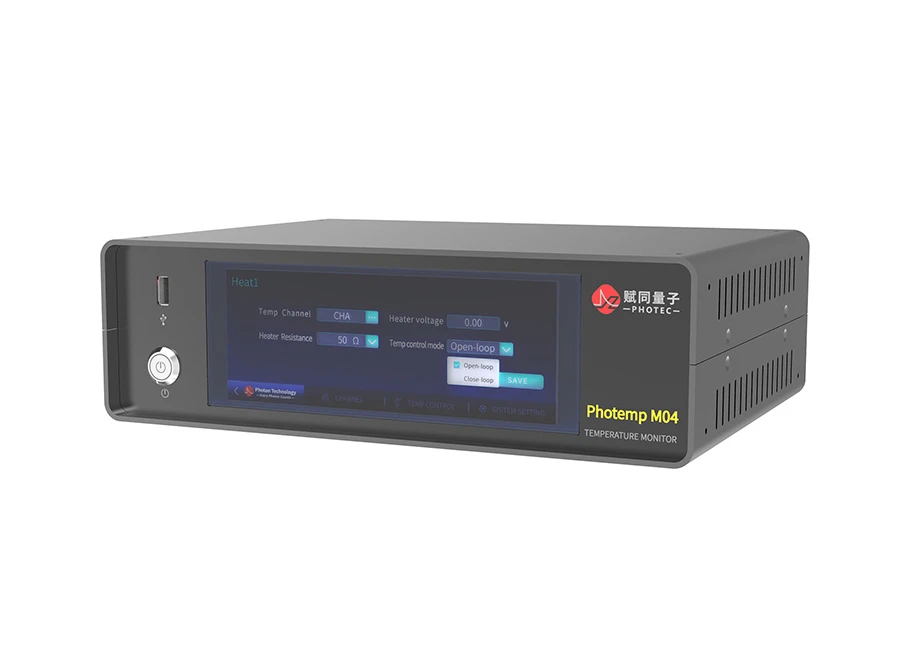

Photemp M Series Temperature Monitor
Main Features:
Temperature measurement down to 300mk, resolution up to 0.1mK.
1\4\8 channels of temperature measurement as standard;
Each temperature measurement channel is independent of each other;
Thermometer excitation current can be adjusted in multiple steps to reduce temperature and self-heating;
Support multiple types of diode and resistance type temperature sensors;
Support USB (serial port), RS485 communication.
ASCII protocol, compatible with most manufacturers' protocols.
Product Features:
Temperature measurement down to 300mk, resolution up to 0.1mK;.
Standard configuration 1\4\8 way temperature measurement channel;
Each temperature measurement channel is independent of each other;
Thermometer excitation current can be adjusted in multiple steps to reduce temperature and self-heating;
Support USB (serial port), RS485 communication.
ASCII protocol, compatible with most manufacturers' protocols.
The "Photemp M" series of temperature displays have extremely high resolution, accuracy and stability, and can display temperatures with an accuracy of up to 0.1 mK. The Photemp M series of temperature displays support the connection of diode and negative temperature coefficient resistance thermometers, and can be connected to up to 8 different types of thermometers at the same time, which brings great convenience to users who need to carry out multi-point measurements. This is a great convenience for users who need to make multi-point measurements.
Temperature Display Parameters
|
Number of input channels |
1,4,8 |
|
Display Accuracy |
0.1mK,0.1mV |
|
Analog to Digital Conversion |
16-bit |
|
Sensor Type |
Diode type/resistor type |
|
Measurement Type |
Four-wire method |
|
Input Thermometer Type |
Diodes: Silicon, Gallium Arsenide |
|
Display Size |
RTDs:Germanium, Carbon-Glass, CernoxTM, 和RoxTM |
|
6.8" TFT-LCD capacitive touch screen |
|
|
Storage Curves |
Allows storage of multiple temperature profiles, including two internally cured standard temperature profiles. |
|
Communication Protocols |
ASCII protocol, compatible with lakeshore protocol. |
|
Communication Interface |
RS485, USB serial port |
|
Input Voltage |
Tpy 220 VAC |
|
Overall Dimension |
220*300*96 mm |
