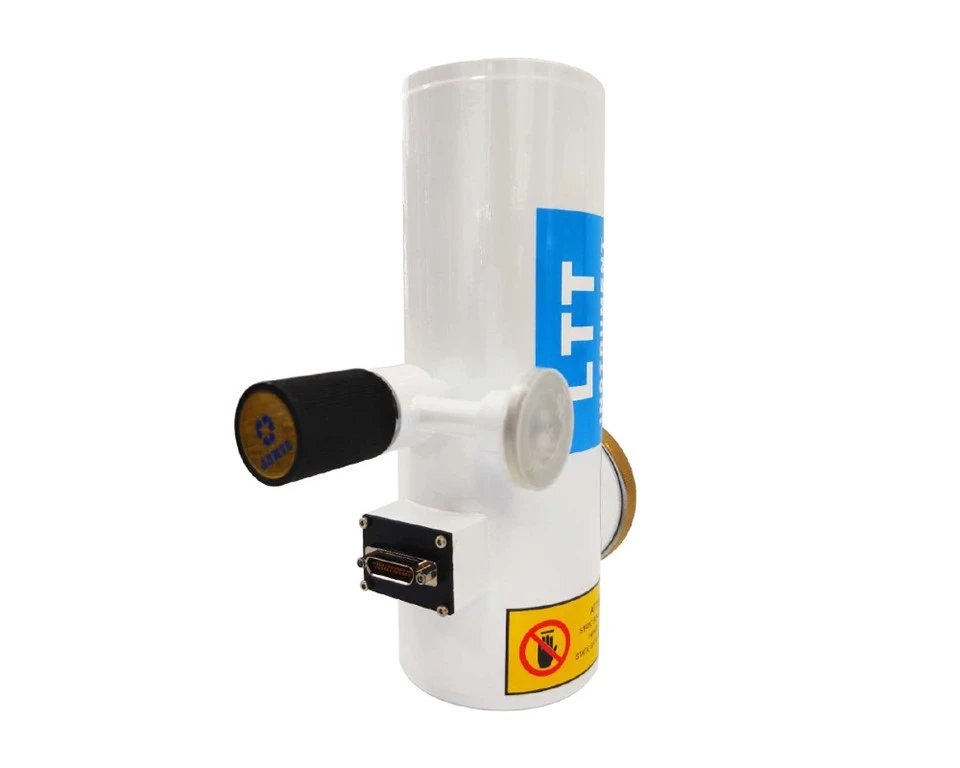

Detector Dewars
Product Description
Metal Detector Dewars for cooling research grade detectors are an important product for us.
The Metal Detector Dewar for cooling scientific grade detectors is one of our key products and is often used for cooling infrared, temperature radiation, CCD, HgCdTe and other detectors, which are cooled by means of metal conduction to the temperature of liquid nitrogen (-196°C/77K), and the electrical signals are transmitted via an electrical connector to the electrical measurement equipment.
Metal Detector Duval Parameters
|
Application - Optical Response - Detector Testing - Raman Spectroscopy - Device Testing - Device Package Testing - Infrared Testing |
Features - Stainless steel interior and vacuum housing - Side optical window or bottom optical window configurations - Multi-layer super-insulation for lower temperature radiation - Longer vacuum retention time - Low thermal conductivity construction and wiring - Extraction valve with vacuum locking mechanism for flexible use |
|
|
|
|
Duval standard configuration |
|
|
- 25-pin micro torque connector - 40mm diameter quartz window - KF16/DN10 Pumping Valve |
- 24PIN PCB Sample Stands - 25mm Diameter Sample Station - With bottom fixing plate |
|
|
|
|
Optional accessories - DN10 Pumping Valve - PCB sample soldering board (24PIN\48PIN) - Replaceable window sheet optical cover, window sheet size ≤ 40mm, window distance from the sample distance can be customized according to customer requirements - Infrared cold screen - Specialized Dewar bracket - Electrical adapter box |
|
