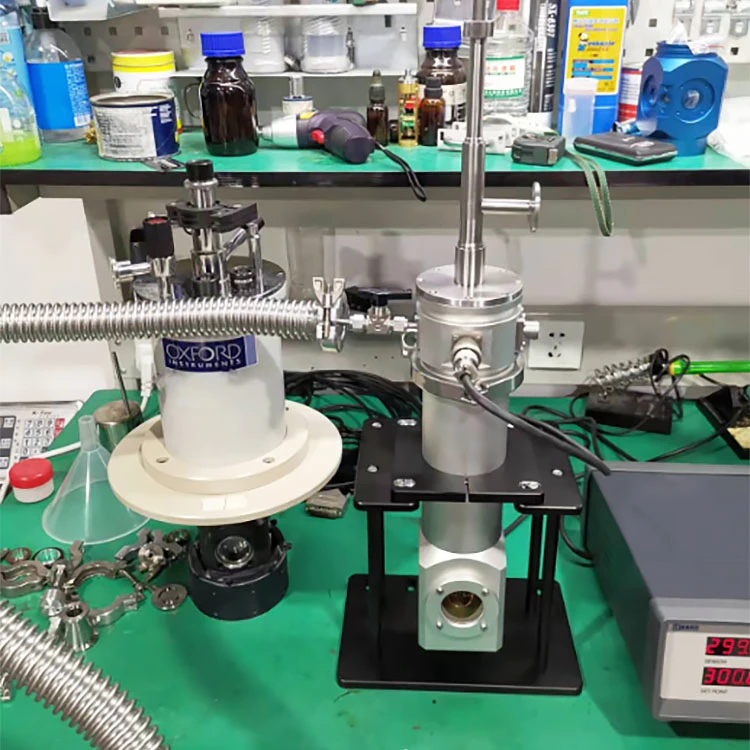

Liquid Nitrogen Cryostat – Wide Temperature Range Cryogenic Cooling System
Dexing Magnet's liquid nitrogen cryostat is engineered using the steady-state bubble principle, providing a highly efficient and stable cryogenic solution for various scientific and laboratory applications. This advanced system features a liquid nitrogen reservoir that regulates the gas-liquid interface by adjusting the cone-shaped gas plug. The result is minimized heat leakage and excellent thermal stability.
By fine-tuning the heating power through a precision temperature controller, the sample holder's temperature can be rapidly adjusted within a broad range of 65K to 800K, then accurately stabilized at the desired setpoint.
Key Features & Benefits
1. Broad Temperature Control Range (65K – 800K):
Enables rapid heating and cooling transitions with high efficiency, suitable for diverse experimental conditions.
2. Stable Vacuum Environment:
The sample is tested under ideal, vacuum-sealed conditions, eliminating external interference and ensuring accurate results.
3. Long-Lasting Vacuum Layer:
Equipped with low-temperature adsorbent in the vacuum interlayer to maintain vacuum integrity, prolonging the lifespan of the liquid nitrogen.
4. High-Precision Temperature Sensor:
Utilizes PT100 platinum resistance sensors, known for their excellent stability, sensitivity, and repeatability.
5. Customizable to Your Needs:
Available in various sizes and configurations for different scientific applications-optical, electrical, magnetic, and thermal. Tailor-made options to meet specific lab requirements.
6. Compact and Maintenance-Free:
No need for external pumps or compressors. Space-saving design with continuous, maintenance-free operation.
7. User-Friendly Sample Mounting:
Easy-to-install optical or electrical sample holders for fast and convenient setup.
The performance and characteristics ofLiquid Nitrogen Cryostat:
2.1 Wide temperature range (65K ~ 800K), high efficiency, fast cooling speed;
2.2 The sample has an ideal stable environment in vacuum;
2.3 Low temperature adsorbent is set in the vacuum interlayer to keep the vacuum for a long time and extend the use time of liquid nitrogen;
2.4 The temperature sensor uses PT100 platinum resistance with good stability and good repeatability;
2.5 Different sizes, different requirements of liquid nitrogen thermostat can be designed according to customer requirements. (Optical, electrical, magnetic, thermal experiments). A variety of options to meet different test requirements;
2.6 Easy to use, perfusion and secondary injection of liquid nitrogen; No pump, compressor and other equipment, saving laboratory space, continuous operation of the system without maintenance;
2.7 Optical sample holder can quickly install samples. Electric sample frame terminal beautiful and easy to use;
Parameters of Dexinmag series Liquid Nitrogen Cryostat
|
No. |
DXNC15 |
DXNC20 |
DXNC30 |
|
Liquid nitrogen storage capacity |
400 ml |
||
|
Ultimate vacuum |
10-4 Pa |
||
|

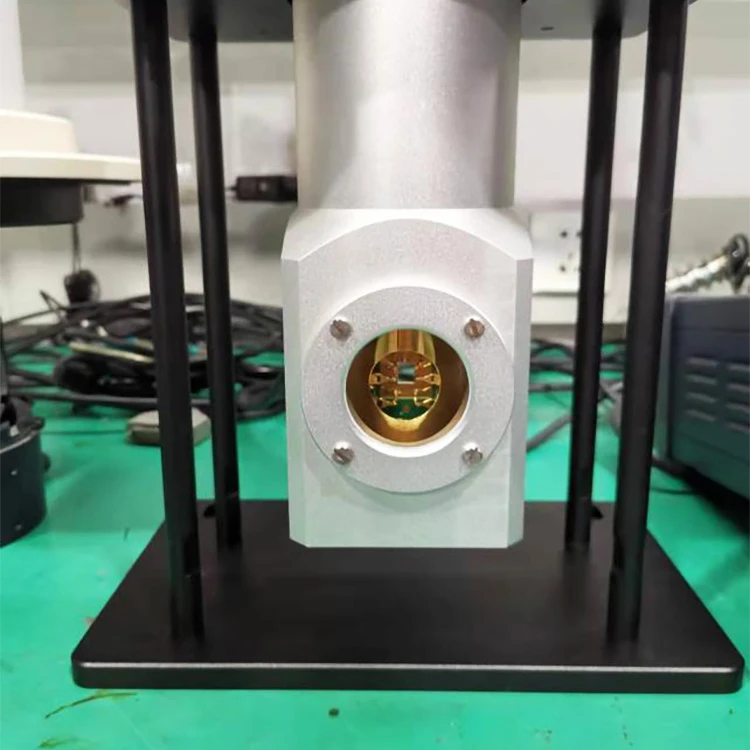

Optical window |
No |
No |
2-5,∅40mm*3mm |
|
Test sample quantity at the same time |
1 |
1 |
2 |
|
Temperature range |
65K-500K(Temperature zone can be added to 800K) |
||
|
Temperature Accuracy |
±0.1K |
||
Measurement Lead Quantity:Number of measurement leads: 8 (can be added).
Material of leads: four-color phosphor bronze low-temperature wire (optional low-temperature coaxial line).
Sample size: standard 30mm*30mm or below (sample table can be customized).
Test Connector: 8-core aviation plug (optional BNC, SMA connector, etc.).
Window Material:fused quartz or other materials such as ZnSe, KBr, TPX, etc. are optional.
Installation of Vacuum Cover:adopts the latest fast clamping method, which not only improves the convenience of replacing the sample but also avoids any influence on the normal use of the equipment due to repeated disassembly.

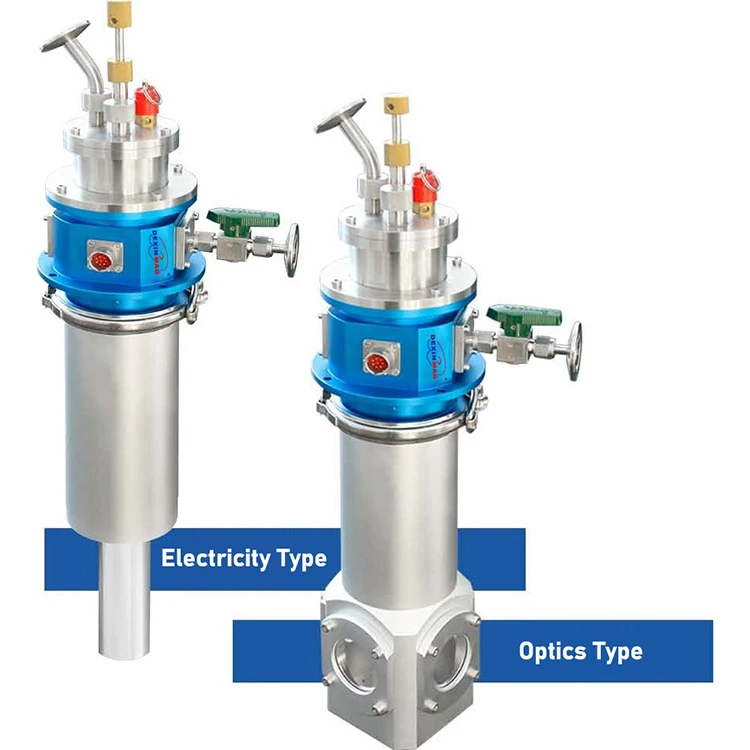

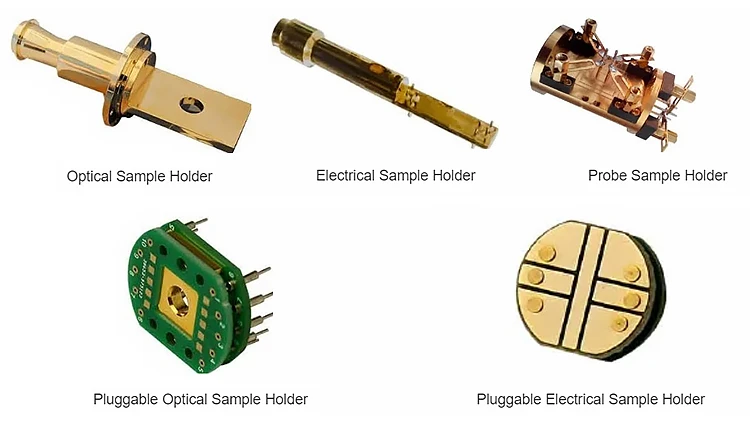

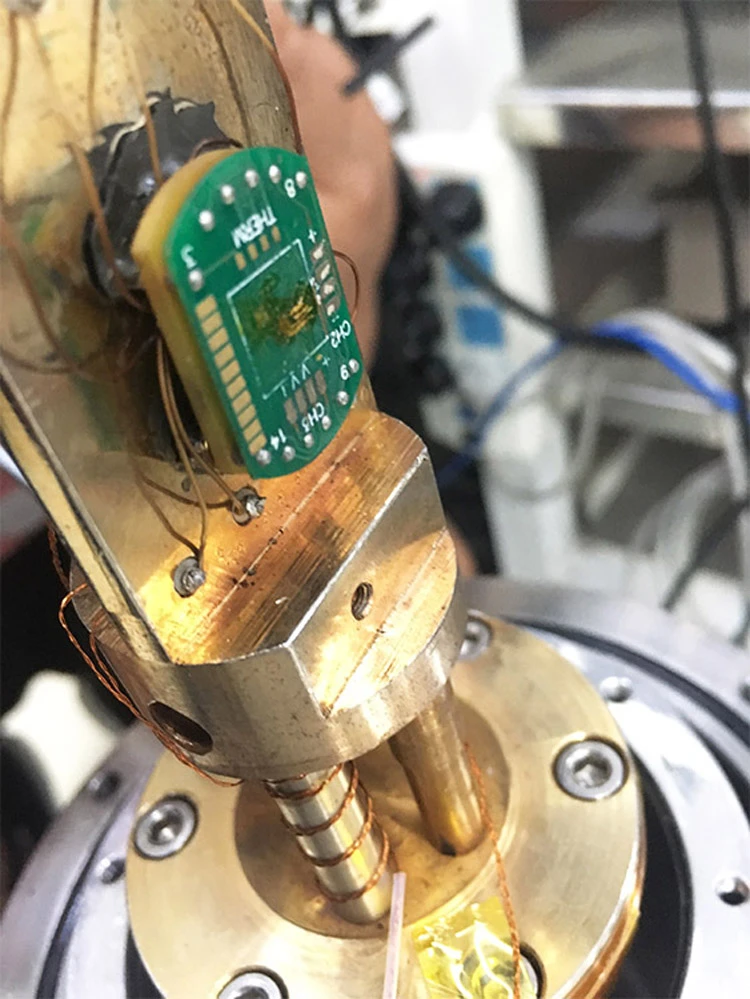

Sample Holder Types:standard electric type, standard optical type, probe type, insert type, and other options (can be customized).

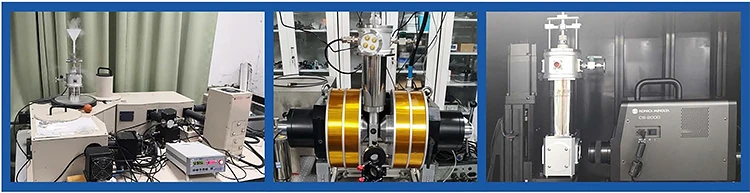

Main Applications:variable temperature detection, variable temperature + magnetic field, variable temperature + magnetic field + optics, cooperation with various spectrometers.
Other Special Types:atmospheric type, continuous flow type.
Comparison with closed cycle cryostat：
Refrigeration method: Liquid nitrogen cryostat uses liquid nitrogen as the cooling medium, while closed cycle cryostat uses compressors or other refrigeration devices.
Temperature control range: The temperature control range of liquid nitrogen cryostat is lower, up to -196 ° C, while the temperature control range of closed cycle cryostat is generally -40 ° C ~200 ° C.
Application: Liquid nitrogen cryostat is mainly used in the field of ultra-low temperature, and closed cycle cryostat has a wider application range.
Cost: Liquid nitrogen cryostat has a high cost performance in terms of performance, stability and price, which saves costs for users.

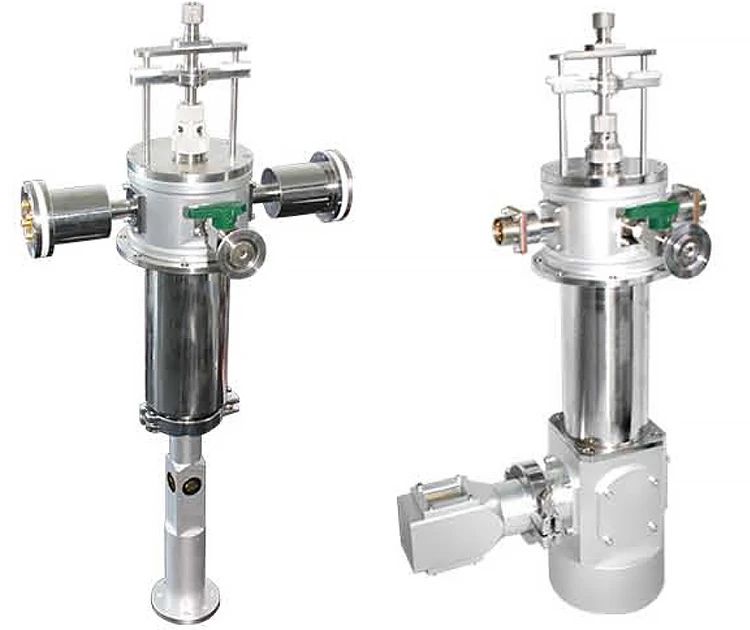

Customized Liquid Nitrogen Cryostat
