Closed-cycle Cryostat
Introduction
Closed-cycle Cryostat provided by Dexing Magnet is a variable temperature low temperature platform based on Japan SHI 4K refrigerator, which is used for magnetic, optical and electrical measurement in low temperature environment. It is a precision instrument that uses a refrigeration compressor or other refrigeration device to reduce the temperature of the system and delivers the cooled liquid or gas to the system through a circulating pump. When the temperature of the system reaches the set value, the thermostat will automatically shut down the refrigeration device and maintain the temperature of the system by heating the device.
The features of the Closed-cycle Cryostat ·
2.1 Accurate temperature control: Closed-cycle Cryostat is equipped with a high-precision temperature sensor and control system. It can accurately control the temperature of the system within the set range, usually with an accuracy of ±0.1℃.
2.2 Wide temperature range: The temperature control range of Closed-cycle Cryostat is generally -40℃~200℃, which can meet the needs of different applications.
2.3. Efficient cooling effect: advanced closed-circuit refrigeration technology is adopted to ensure that the cooling effect is stable and lasting during a long period of operation. Its internal use of efficient refrigeration system, through the accurate temperature sensor and control system, to achieve rapid response to the temperature and accurate control. Whether it is a scientific experiment requiring deep freezing, or an industrial process requiring minimal temperature fluctuations, Closed-cycle Cryostat can meet its needs.
2.4 Safe and reliable: the Closed-cycle Cryostat has perfect safety protection measures, including overload protection, short circuit protection, overvoltage protection, etc., to ensure the safety of the equipment during operation, and to prevent the system from overheating or undercooling.
2.5 Good compatibility: It can be seamlessly connected with various experimental instruments and process equipment to achieve precise temperature control. Whether it is low temperature reaction in the research laboratory, material performance testing, or freeze drying, low temperature storage and other processes in industrial production, Closed-cycle Cryostat can provide you with a reliable solution.

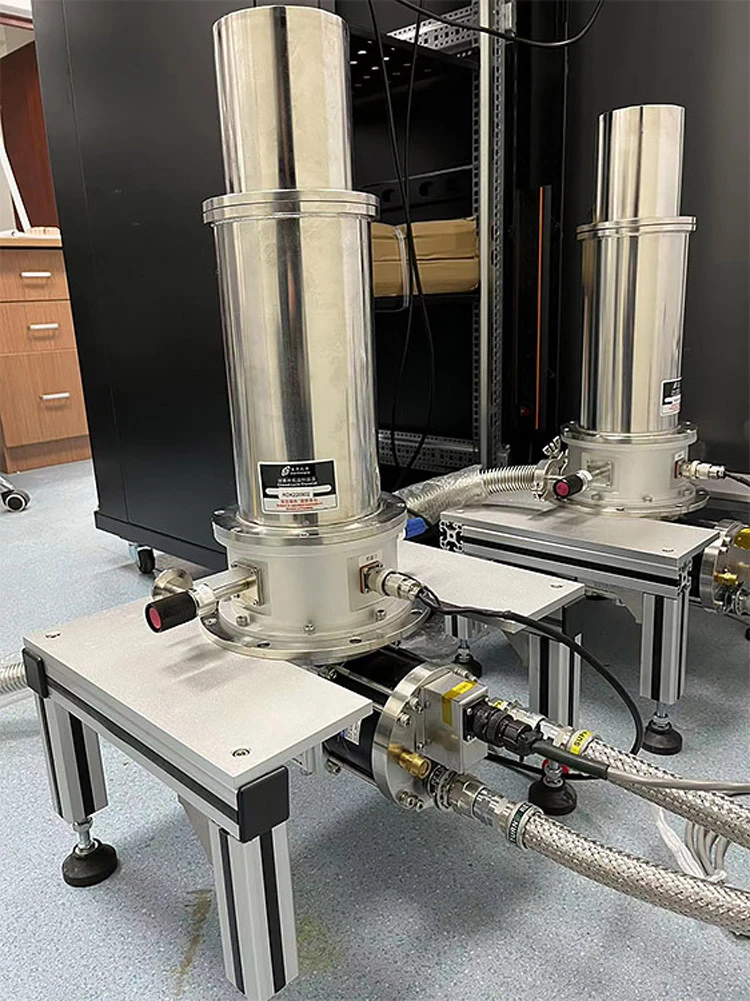

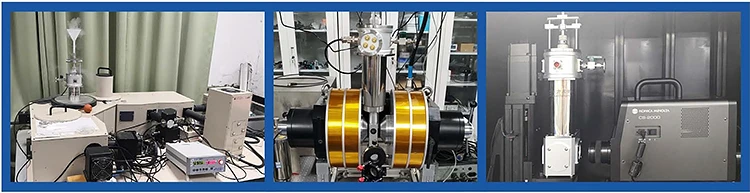

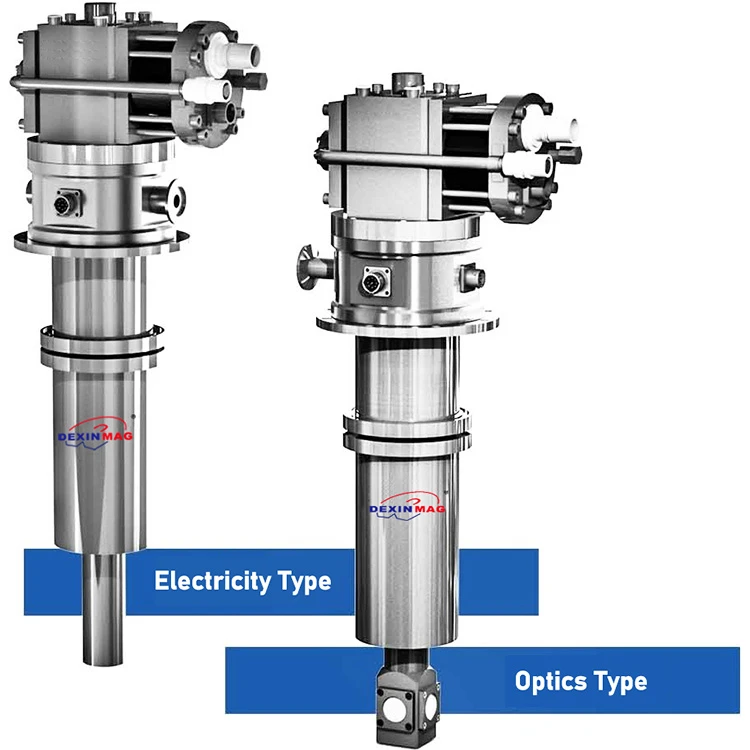

Users can choose the option or special custom, the introduction of light window, special workbench and length, combined with the user experiment system, to complete the magneto-optical, photoelectric, light reflection, light transmission, fluorescence, reluctance and other experiments. We offer a personalized, customized service to tailor the right thermostat solution to your needs and experimental environment. At the same time, we have also established a perfect after-sales service system to ensure that users can get a timely response and solution to any problems encountered in the process of use.
Specifications and Parameters
| Model | DX 101D | DX 101D-4W | DX 305D | DX 305D-4W | DX 408D2 | DX 408D2-4W |
| Temperature Range | 5K ~ 325K | 4.5K ~ 325K | 4K ~ 325K | |||
| Sample Environment | Vacuum | |||||
| Cold Head Model | RDK-101D | RDK-305D | RDK-408D2 | |||

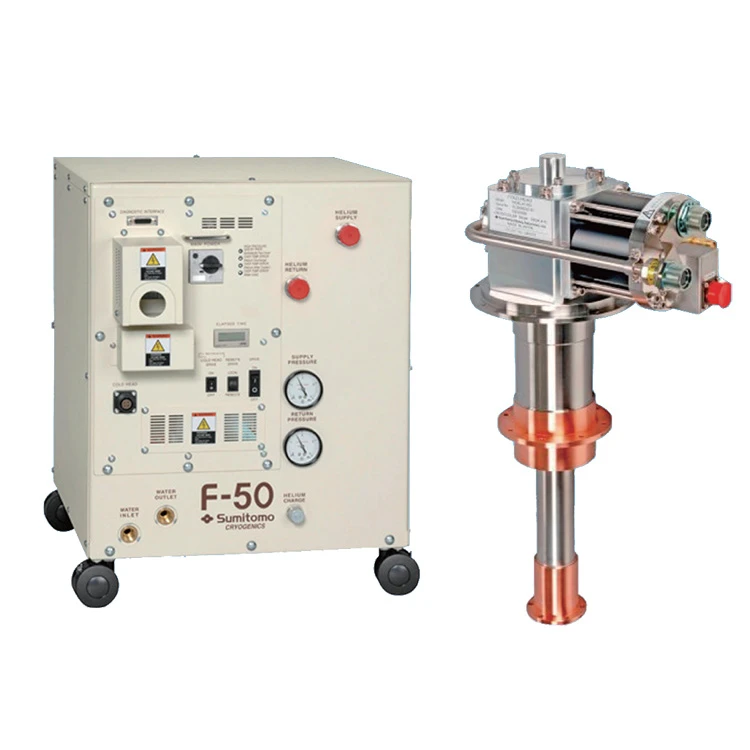

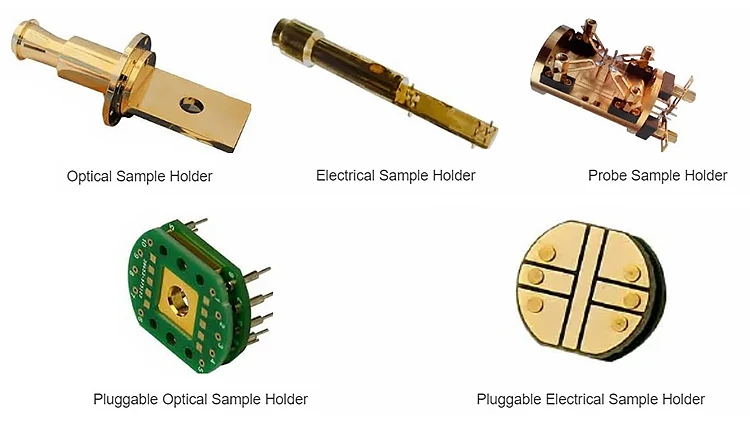

| Compressor Model | CNA-11C | CAN-31D | F50H | |||
| (air cooling) | (air cooling) | (water cooling) | ||||
| First Stage Cooling Capacity | 3.0W @ 60K (50Hz) | 15W @ 40K (50Hz) | 40W @ 43K (50Hz) | |||
| Second Stage Cooling Capacity | 0.1W @ 4.2K (50Hz) | 0.4W @ 4.2K (50Hz) | 1.0W @ 4.2K (50Hz) | |||
| Cooling Time from Room Temperature to 4.2 K | 150mins | 120mins | 60mins | |||
| Optical Window | None | 4 | None | 4 | None | 4 |
| Sample Holder Size (W * L) | 15 * 25 mm | 30 * 35 mm | 20 * 30 mm | 40 * 45 mm | 30 * 35 mm | 60 * 50 mm |
| Sample Base Wiring Terminal | 8 | None | 8 | None | 8 | None |
| Electrical Joint | 10 core vacuum | |||||
| Thermometers and Heaters | Silicon diode, 50W | |||||
| Required Vacuum | Less than 1Pa | |||||
| Power Supply | Single phase, 220V, 50Hz | Three phase, 380V, 50Hz | Three phase, 380V, 50Hz | |||
| Power Consumption | 1.2 ~ 1.3kW @ 50Hz | 3.8 ~ 4.6 kW @ 50 Hz | 6 5 ~ 7.2 kW @ 50 Hz | |||
| Ambient Temperature | 4~38°C | 5~35°C | ||||
| Dimension of Compressor (length * width * height) | 610 * 390 * 450mm | 901 * 520 * 520mm | 591 * 450 * 588mm | |||
| Weight of Compressor | 75kg | 95kg | 120 kg | |||
| Weight of Cold Head | 7.2kg | 16.0kg | 18.0kg | |||

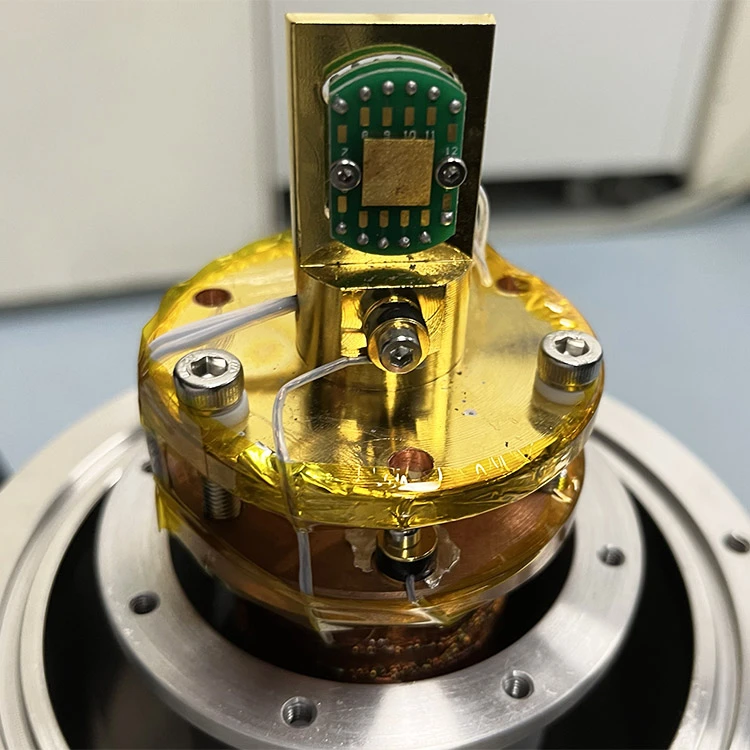

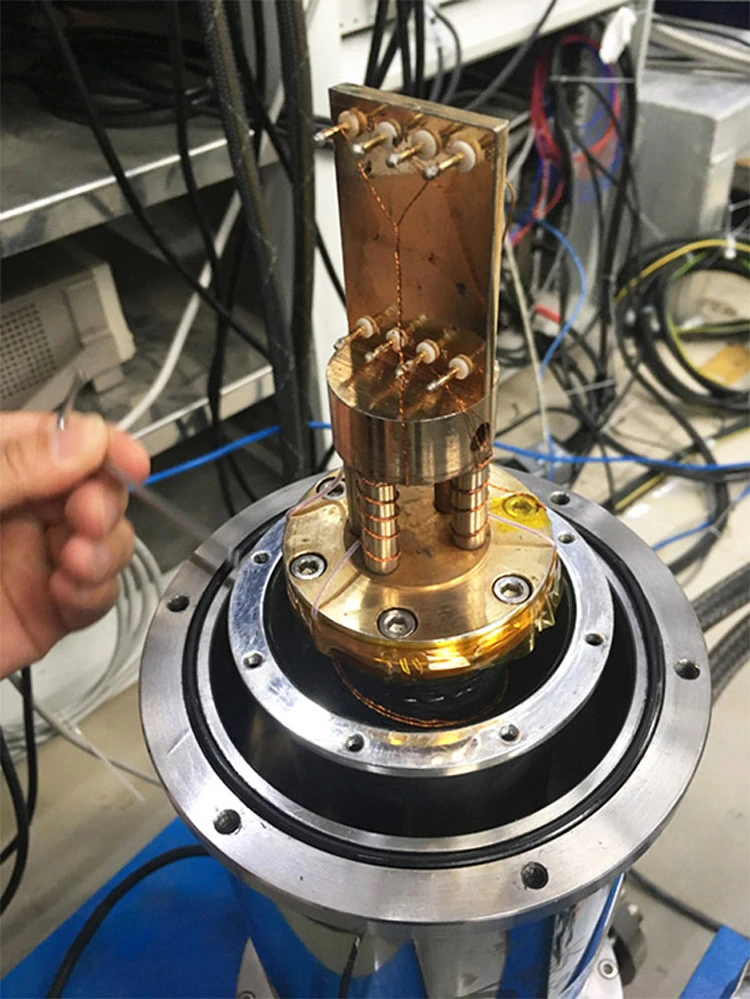

Sample chamber reference picture
