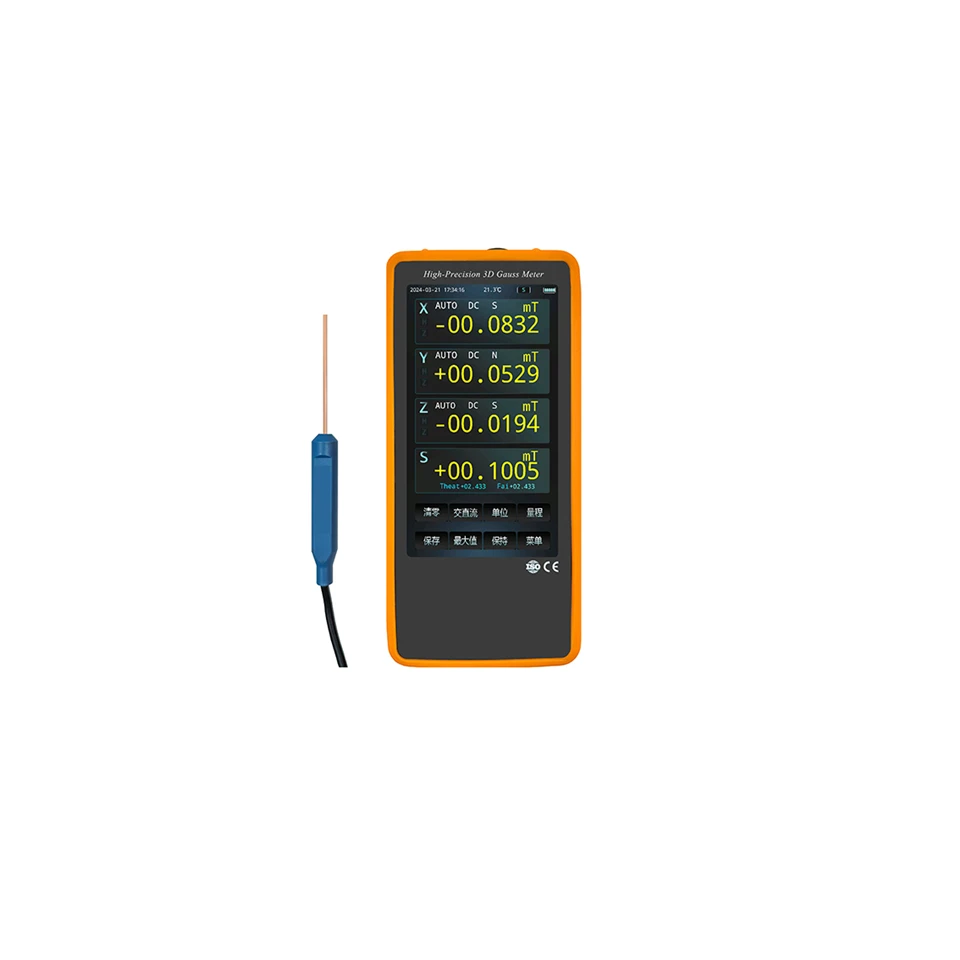

DX-65 High-Precision 3-Axis Portable Gaussmeter

The DX-65 utilizes the latest magnetic field measurement technology. It features a 5-inch capacitive touch screen (720x1280 resolution) with intelligent backlight adjustment and a fully tactile operation interface. It integrates a bilingual (Chinese/English) interactive system, enabling real-time display of 3-axis magnetic field measurements, temperature, angle, maximum value, minimum value, date, battery level, time, and other parameters.



1. High-Precision Measurement: Supports 3-axis magnetic field measurement with excellent orthogonal angle correction technology (better than 0.1°).

2. Intelligent Operation: 5-inch capacitive touch screen, supports Chinese/English language switching, intelligent backlight adjustment.

3. Multifunctional Data Acquisition:

• Supports peak acquisition (RS, BRB), FFT spectrum analysis, and graphical curve plotting.
• Supports vector summation, automatic/manual range switching.
• Data can be controlled and interacted with via command sets over the USB interface.

4. Probe Compatibility: Optional probes include the world's smallest package size (0.25mm) and high/low-temperature (-269°C to 200°C) 1D, 2D, and 3D probes.

5. High-Speed Acquisition: Supports variable speed acquisition from 0–300 samples/second with excellent measurement repeatability.

6. Calibration Certification: Complies with JF1832-2020 (1mT–2.5T) Gaussmeter calibration specification and JF2151-2024 Medical Magnetic Resonance Imaging System calibration specification.



1. Measurement Range and Resolution (DC Mode)

Range	Resolution
30 mT	0.0001 mT
300 mT	0.001 mT
3000 mT	0.01 mT
30000 mT	0.1 mT
50000 mT	0.1 mT

2. Accuracy

-DC Mode:

• 0–3 T: ±0.03% of reading ±0.003% of range
• 3–7 T: ±0.03% of reading ±0.003% of range
• 7–50 T: ±0.1% of reading ±0.003% of range

-AC Mode: ±1% of reading ±0.5% of range (0–50 kHz)

3. Temperature Coefficient

• ±0.007% / °C + 1 count

4. Unit Conversion

• 1 T = 1000 mT
• 1 mT = 1000 μT
• 1 Gs = 10 μT
• 1 mT = 10 Gs
• 1 Gs = 79.8 A/m

5. Probe Types

• Supports 1D, 2D, and 3D (X, Y, Z) probes
• Optional probes for low-temperature (-269°C) to high-temperature (200°C) operation
• Supports array probe combinations and integrated temperature sensors



• Display: 5-inch capacitive touch screen (720x1280)
• Communication Interfaces: Type-C (data interaction and command control), BNC (analog signal output)
• Power Supply: 2x 18650 batteries (parallel)
• Power Consumption: 4.2 W
• Continuous Operation Time: 5 hours
• Data Storage: Supports automatic/manual saving
• Filtering Methods: Average filtering, moving average filtering, no filtering
• Language Support: Chinese, English
• Operating Temperature: -10°C ~ +75°C (some probes support -269°C ~ +200°C)
• Additional Functions:

1. Buzzer alarm
2. Backlight adjustment (always on/auto screen-off)
3. FFT spectrum analysis (0–2048 Hz)
4. PC software supports data recording, graphing, alarm settings, automatic correction, etc.
