I. Products Overview

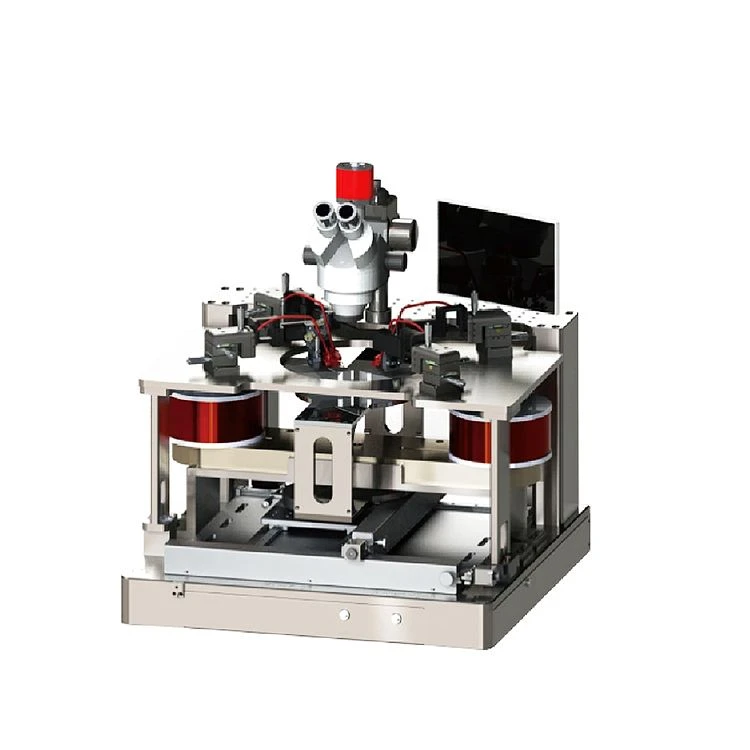

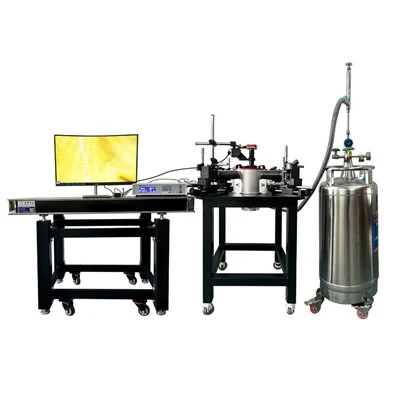

- The DX1PS3 is a wafer-level automated in-plane magnetic field probe stage.
- It is designed for accurate in-plane magnetic field measurements and probe testing at the wafer level.
- It supports testing of 12-inch wafers (compatible with 8-inch and 6-inch chips).
II. Core features
- Magnetic field direction: in-plane magnetic field.
- Magnetic field strength: In-plane magnetic field strength over 330mT.
- Probe type and number: supports 4 sets of DC probes or microwave probes.
- Sample stage parameters: XY electronically controlled travel ±150mm, adjustment accuracy 2um; T-axis manual adjustment ±5°, minimum adjustment accuracy 5°.
- Real-time monitoring: real-time monitoring of magnetic field strength, monitoring accuracy better than 1%, magnetic field resolution better than 0.02mT.
- Z-axis probe platform: provide fast lifting function to improve testing efficiency.
Detailed parameter introduction
| Model | DX1PS3 |
| Magnetic field direction | In-plane |
| Magnetic field strength | In-plane magnetic field>330mT |
| Is the air gap adjustable | No |
| Sample size | 12-inch wafer (downward compatible with fragmentation test) |
| Probe type and quantity | DC probes (set of 4) or microwave probes (set of 4) |
| Sample Stage Parameters | XY electric control travel ±150mm, adjustment accuracy 2 um; T-axis manual adjustment ±5°, minimum adjustment accuracy 5° |
| Microscope type | Monocular microscope |
| Product description | ▹ In-plane/perpendicular magnetic field probe station, except for the magnet, the structural versatility design magnetic field uniformity is ±1%@d1mm; ▹ Real-time monitoring and feedback of magnetic field strength, the monitoring accuracy is better than 1%, and the magnetic field resolution is better than 0.02mT; ▹ Holds up to 12-inch wafers and is backward compatible with 8-inch and 6-inch chips; ▹ Compatible with up to 4 sets of probes (RF or DC test); ▹ Provide Z-axis probe platform rapid lifting function to achieve efficient testing. |
| Equipment can provide upgrade points | The manual lifting function of the Z-axis probe platform can be upgraded to electric control |
III. Application Fields
- Applied to material characterization research, such as Hall effect measurement system, vibration sample magnetometer, etc.
- Suitable for hard magnetic materials, soft magnetic materials, hard alloy measurement.
- Can also be used for magneto-optical Kerr effect, magnetic field mapping, magnetic shielding and other functional materials measurement.
IV. Product Advantages
- Flexible structure: Flexible structure design except for the magnet, magnetic field uniformity is ±1%@φ1mm.
- High accuracy: real-time monitoring of magnetic field strength with accuracy better than 1% and resolution better than 0.02mT.
- Strong compatibility: Supports multiple wafer sizes and probe types to meet a variety of testing needs.
- Efficient Testing: Provides Z-axis probe platform fast lifting function to improve testing efficiency.
V. Deliver, Shipping and Serving
- Specific delivery, shipping and servicing details are not directly mentioned on the website.
- However, usually such products will include packaging, transportation to the designated location, installation instructions and after-sales service.
- Customers may contact Dexinmag for specific delivery and service options.
