3 axis digital gauss meter
Introduction
The DX-360 Gauss Meter is an advanced device that accurately measures the magnetic field strength in both AC and DC environments. It offers a range of features that make it suitable for various applications, including research and development, manufacturing, and quality control.
One of the key advantages of the DX-360 Gauss Meter is its high level of accuracy. Its main characters are high resolution ( 0.1mG 10nT ), high precision ( + 0.15%). This level of precision makes it ideal for applications that require precise measurements, such as in the aerospace and defense industries.
In addition to its accuracy, the DX-360 Gauss Meter is also highly versatile. It can measure both DC and AC magnetic fields, making it suitable for use in a range of applications, including testing electromagnetic compatibility (EMC) and measuring magnetic fields in electric motors.
Other notable features of the DX-360 Gauss Meter include its compact size and easy-to-use interface. It has a large, easy-to-read LCD display and its lightweight design makes it easy to carry around and use in different settings.
Overall, the DX-360 Gauss Meter is a reliable and accurate tool that excels in a variety of applications. Its precision, versatility, and ease-of-use make it an ideal choice for anyone who needs to measure magnetic fields in both AC and DC environments.
Features of DX-360 Gauss tesla meter
|
5 ¾-bit resolution on VGA color panel |
Automically capture max./min.value |
|
Easy use menu-driven mode |
Relative mode,graphical display of real-time measurement |
|
vector superposition measured value and angle |
Auto-zero, automatic/manual range |
|
Probe Auto Calibration / Auto Memory operation mode / Probe temperature compensation |
IEEE-485 or RS-232 interface |
|
Automatic zero, temperature compensation |
Date, Time and Brightness setting |
|
dozens of optional square or circular probes |
High capacity for data storage |
|
Automatically identified probe coefficients and numbers |
Threshold alarm filter |
|
Optional units: Gauss, Tesla, Oe, A / m |
Data reading, the operation mode of memory |
Specification
|
Model-360 Specifications |
||
|
Range |
3G (300µT)/ 300G (30mT)/ 3kG/(300mT) /30kG (3T) /100kG/(10T) |
|
|
Resolution |
0.1mG(10nT) |
|
|
Accuracy (display value) |
One dimensional DC |
±0.05% of reading , ±0.005% of range |
|
Three dimensional DC |
±0.15% of reading , ±0.005% of range |
|
|
AC |
±1% of reading , ±0. 5% of range |
|
|
Frequency Range |
DC mode |
DC |
|
AC mode |
20Hz to 30kHz |
|
|
Frequency display range |
DC to 25kHz |
|
|
Analog Output (x,y,x) |
Output Voltage |
±3V F.S. |
|
Connectors |
Standard BNC |
|
|
Additional effects |
Temperature Coefficient |
±(0.015% ±1 count)/ ºC |
|
Temperature range |
Working temperature |
0ºC to 50ºC |
|
Storage temperature |
-20ºC to 60ºC |
|
|
Panel Display |
VGA,800 x 480 Pixel, 7" color screen |
|
|
Communication Interface |
RS-232 Standard 9-pin D-type connectors |
|
|
IEEE-485 Standard 9-pin GPIB-type connectors |
||
|
Supply power |
Voltage： 100/120v 200/240v Frequency： 50-60 Hz |
|
Probes: three-dimensional probe, two-dimensional probe, uniaxial probe, transverse probe

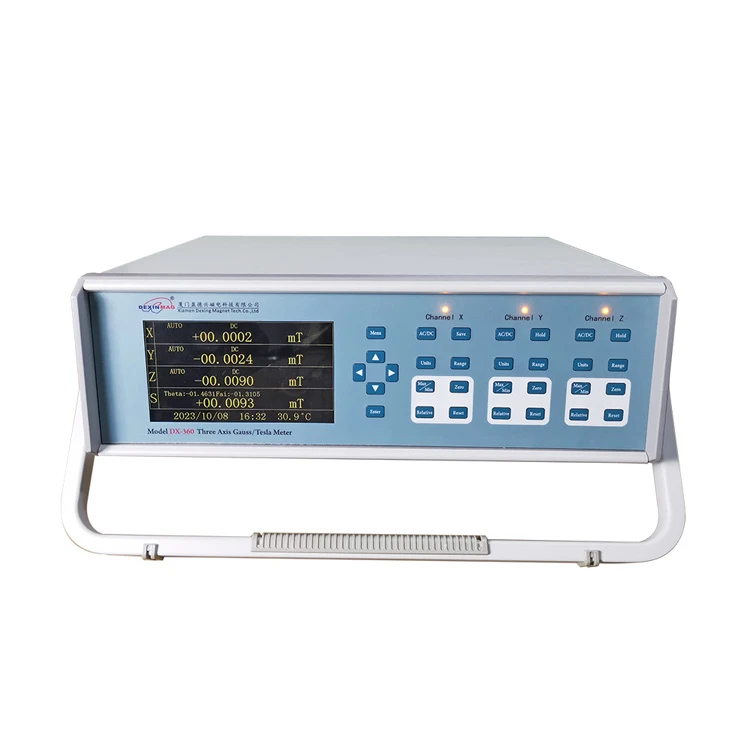

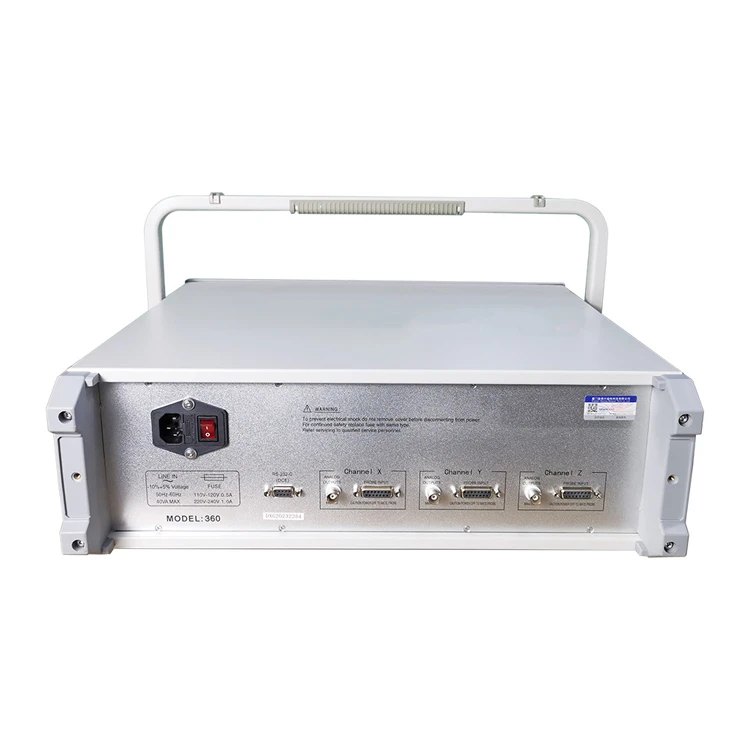

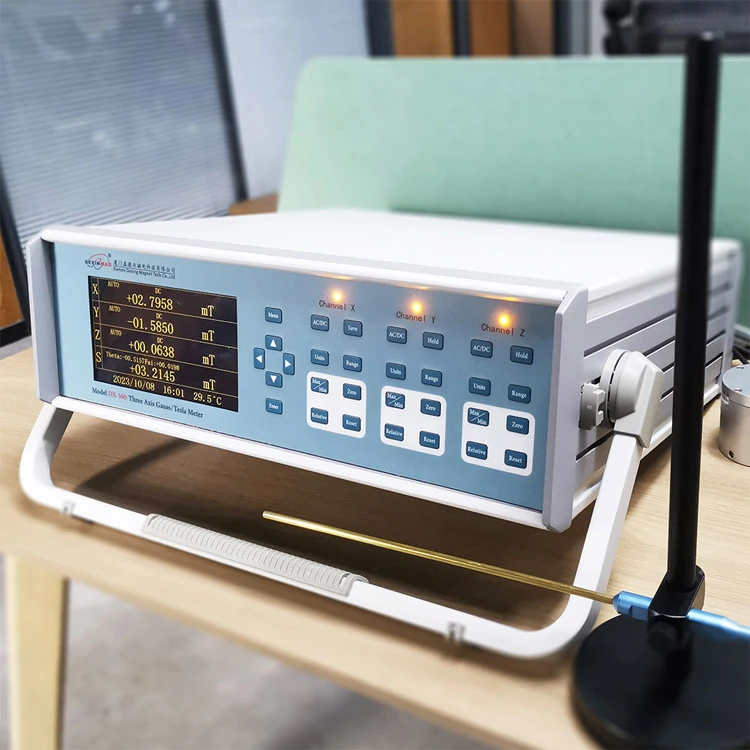

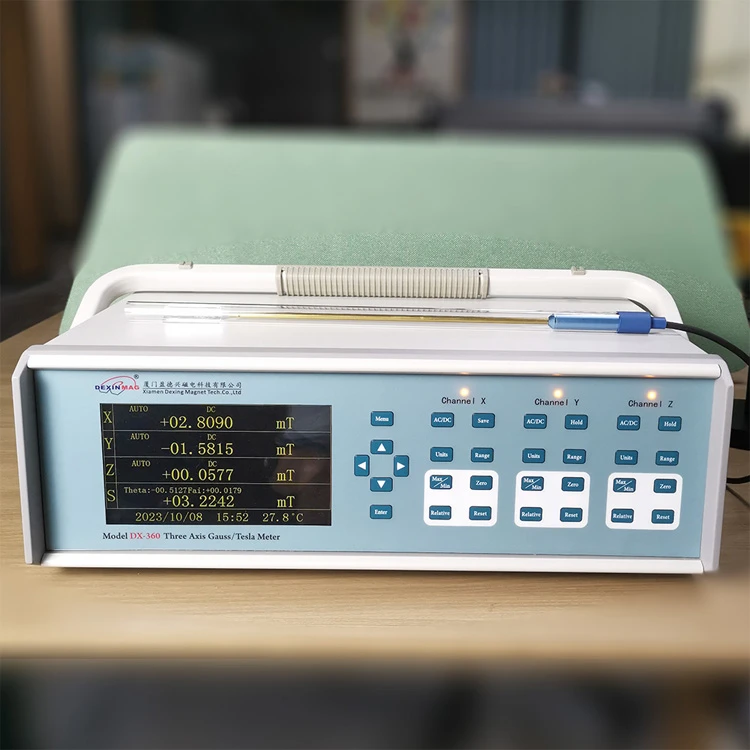

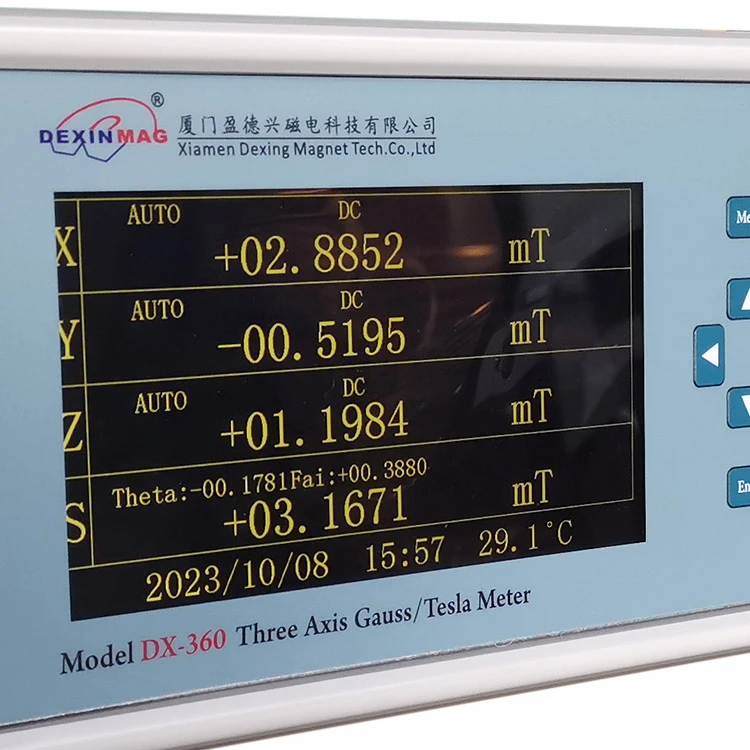

Reference pictures
