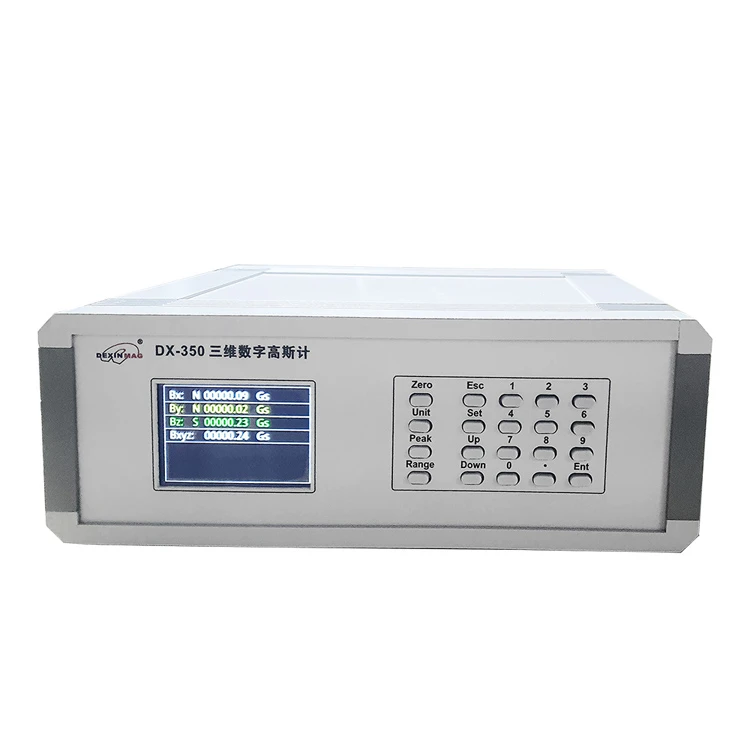

3D Gaussmeter

The DX-350 three channel digital Gaussian meter adopts advanced ARM microprocessing technology, and through multi-channel synchronous acquisition and processing technology, it can simultaneously display the magnetic induction intensity in x, y, and z directions, and automatically calculate and display the Bxyz vector superposition value. The instrument has locking functions such as maximum, minimum, and peak values. The DX-350 three channel digital Gaussian meter is equipped with a TFT true color display screen and 7-digit digital display, and has an ultra-high resolution display characteristic of 0.01Gs in a 3T range. The instrument provides multiple magnetic field units for display: Gs, mT, Oe, kA/m, T, etc. And equipped with standard USB communication interface and upper computer measurement software, supporting large capacity data storage and real-time transmission, optional automation interface (designed to match customer needs), suitable for secondary development, it is a three channel high-precision digital Gaussian meter developed for magnetic material production, research institutes, aerospace and other units.

2.1 Equipped with a 3.5-inch TFT true color screen, 7-bit display, with a minimum resolution of 0.01G in a 30000G range;

2.2 Equipped with automatic display of magnetic field N/S polarity function;

2.3 Can switch to mT (millivolts), Gs (Gaussian), KA/m, Oe (Oster), T (Te) with just one click;

2.4 Equipped with one click reset function, no need for manual adjustment;

2.5 Equipped with automatic peak measurement and maintenance function;

2.6 Equipped with standard USB communication interface and optional software to form an automatic measurement system;

2.7 Optional automation interface (designed to match customer needs), suitable for secondary development;
