3D Equal Diameter Coils
Introduction

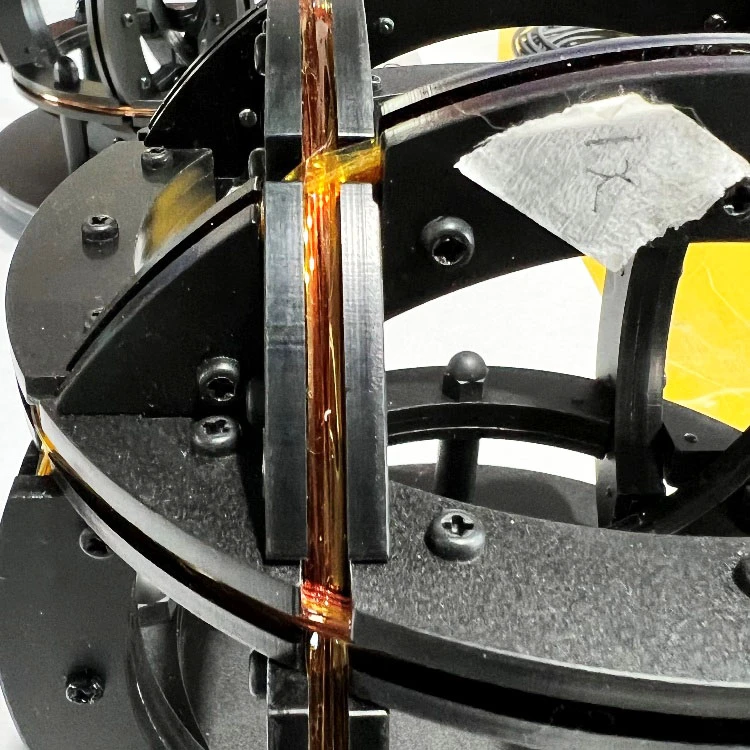

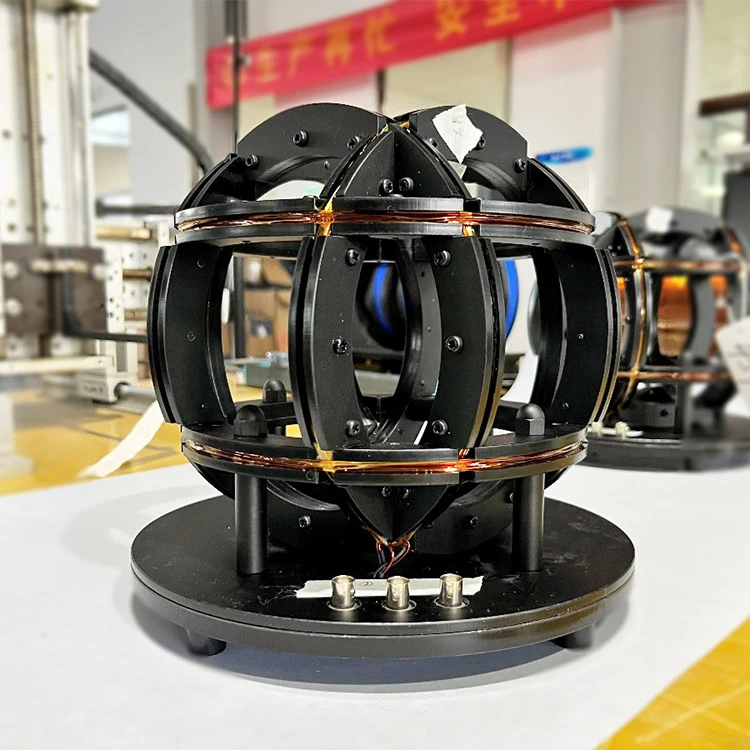

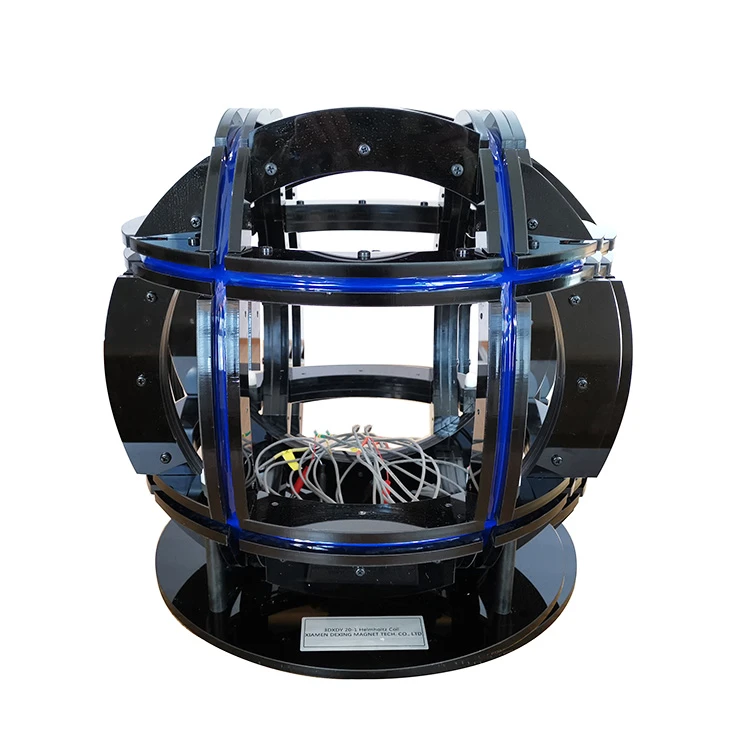

The 3DXHDC three-dimensional equidiameter Helmholtz Coil is an excellent product manufactured by our company. This product is specially designed with the same diameter, number of turns, and coil constant in all three dimensions, making it unique and highly efficient.
This coil has a unique design that ensures that the magnetic field generated by it is uniform in all directions, making it suitable for a wide range of applications. It is commonly used as a calibration standard for magnetic field measurements, magnetic susceptibility studies, and magnetic resonance imaging.
Our 3DXHDC Helmholtz Coil is made of high-quality materials, ensuring that it is durable, reliable, and highly resistant to wear and tear. Additionally, its compact and lightweight design makes it easy to transport and install, making it an ideal choice for field operations.
Overall, the 3DXHDC three-dimensional equidiameter Helmholtz Coil is an essential tool for researchers and scientists working in the field of magnetism. Its unique design and high-quality construction make it an ideal choice for a wide range of applications, and we are confident that it will deliver excellent results to our customers.
Suitable for shielded chambers, simulating magnetic fields inside shielded chambers; The purpose of three-dimensional equal diameter magnetic field coils is: suitable for applications that require consistency in coil constants; Applicable to the application of volume consistency in three-dimensional uniform areas; Applicable to magnetic field requirements below 2Gs; The diameter range of a three-dimensional equal diameter coil is 100mm~1000mm
Specification Parameter of Equal Diameter 3D Helmholtz Coil
| Model | Diameter | Center magnetic | Uniformity | Uniform zone sphere | Each dimension | Weight |
| (mm) | field (Gs) | % | diameter (mm) | power range (W) | (Kg) | |
| 3DXHDC10-1 | 200 | 1 | 0.1 | 25 | 2 | 1.5 |
| 1 | 50 | |||||
| 3DXHDC12.5-1 | 250 | 1 | 0.1 | 35 | 3 | 2.5 |
| 1 | 60 | |||||
| 3DXHDC15-1 | 300 | 1 | 0.1 | 40 | 4 | 3 |
| 1 | 70 | |||||
| 3DXHDC17.5-1 | 350 | 1 | 0.1 | 50 | 5 | 3.5 |
| 1 | 85 | |||||
| 3DXHDC20-1 | 400 | 1 | 0.1 | 55 | 5 | 4.6 |
| 1 | 100 | |||||
| 3DXHDC22.5-1 | 450 | 1 | 0.1 | 60 | 6 | 9.8 |
| 1 | 110 | |||||
| 3DXHDC25-1 | 500 | 1 | 0.1 | 70 | 7 | 11 |
| 1 | 120 | |||||
| 3DXHDC30-1 | 600 | 1 | 0.1 | 85 | 9 | 16 |
| 1 | 140 | |||||
| 3DXHDC35-1 | 700 | 1 | 0.1 | 100 | 11 | 20 |
| 1 | 170 | |||||
| 3DXHDC40-1 | 800 | 1 | 0.1 | 110 | 15 | 24 |
| 1 | 200 | |||||
| 3DXHDC45-1 | 900 | 1 | 0.1 | 120 | 18 | 32 |
| 1 | 220 | |||||
| 3DXHDC50-1 | 1000 | 1 | 0.1 | 140 | 20 | 40 |
| 1 | 250 |
Typical cases
|
Model |
Parameters |
Reference picture |
|

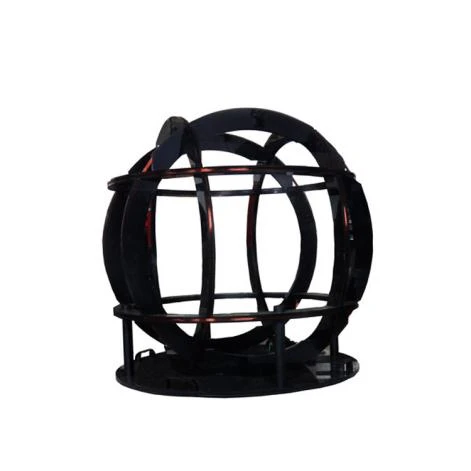

3DXHDC12.5-1 |
Three-dimensional spherical coil diameter of 250mm, 1Gs per dimension; Uniform zone diameter: 35mm; Uniformity: 0.1%; Power supply per dimension: 3W; Use in a shielded cylinder(diameter:300mm). |
|
|

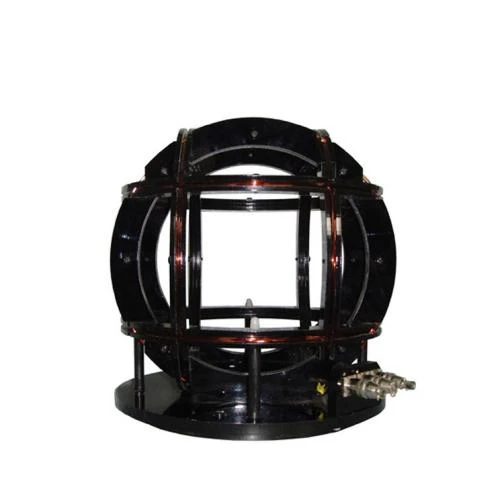

3DXHDC50-1 |
The diameter of the three-dimensional equal-diameter coil is 1 meter; The highest magnetic field strength of one axis is 100,000 nT; The 1-2nT adjustment step can be realized with the measurement and control software and the high precision control field power supply. This system is used to simulate the reproduction of a geomagnetic field, and it can also be used for active shielding of a geomagnetic environment. Uniform zone: Φ125*125mm; Uniformity: 0.1%; Power Supply: 20W. |
|
|

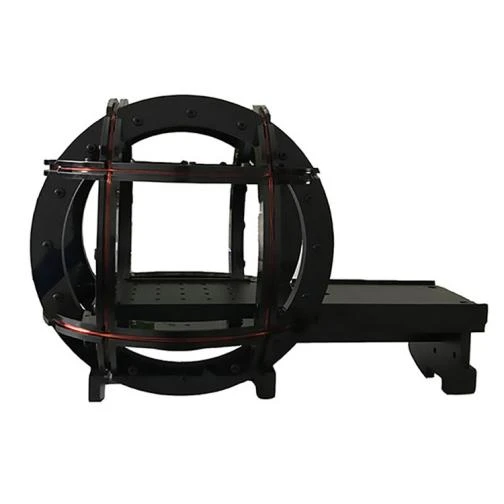

3DXHDC15-1 |
Three-dimensional equal diameter is 300mm; Generates a low-weak magnetic field of 125KHz for the detection of remote car keys; The three-dimensional coil constant is the same, and the resistance and the number of turns are the same; Uniform zone: Φ70*70mm; Uniformity: 1%. |
|
|
3DXHDCF15-1 |
Three-dimensional equal diameter is 300mm; Generates a low-weak magnetic field of 125KHz for the detection of remote car keys; The three-dimensional coil constant is the same, and the resistance and the number of turns are the same; Uniform zone: Φ70*70mm; Uniformity: 1%.W.. |
|
Reference customers:
4.1McGill University
4.2University of Leeds
4.3The University of Utah
4.4The University Of Memphis
4.5University of York
4.6Seoul National University
4.7 University of York
4.8 The University of Illinois
