High Uniformity Combined Helmholtz Coil

Model

Parameters

Reference picture

DX4Y32-30

Buckel four-ring coil

Center magnetic field strength: 30Gs;

Magnetic field uniformity: ΔH/H=5*10-4;

Uniform zone: Φ120*260mm;

The average diameter of the coil: 640mm;

Working hours: 24 hours;

Power Supply: 180W (6A30V)

DX3Y50-2

Maxwell three-ring coil

Center magnetic field intensity: 10Gs;

Magnetic field center uniformity: 5*10-4;

Uniform zone: Φ200*200mm;

The maximum diameter of the coil: 1000mm;

AC and DC;

The coil can be rotated and tilted.

DX4F90-5

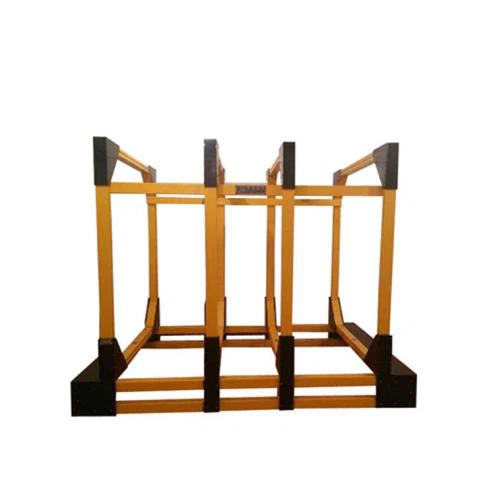

Four-ring square coil

Center magnetic field strength: 5 Gs;

Uniformity of the magnetic field: ΔH/H=5*10-3;

Uniform zone: Φ500*1000mm;

Side length: 1800mm;

Power Supply: 540W (6A90V)

DX6Y10-1

Buckle six-ring coil

Center magnetic field strength: 1.0Gs;

Uniformity of the magnetic field: ΔH/H=1*10-3;

Uniform zone: Φ40*100mm;

The average diameter of the coil: 200mm;

Total length: 260mm.

DX8Y10-1.2

One-dimensional eight-ring coil

Center magnetic field intensity: 1.2Gs;

Uniformity of the magnetic field: ΔH/H=1*10-3;

Uniform zone length: 500mm;

The average diameter of the coil: 540mm;

The total length is 1600mm.
