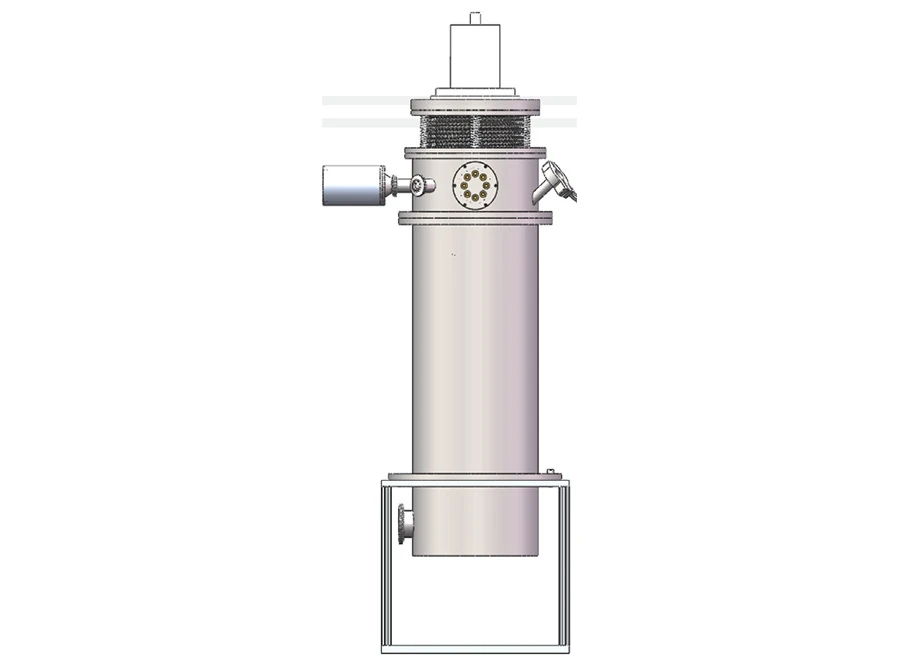

Cryostats
- Main Features:
- Temperature range: 300mK-4.2K
- Low Temperature Cooling: 50μW@300mK; 100μW@850mK; 0.1W-1.2W@4.2K
- RF interface: SMA
- Number of interfaces: 4-32
- DC interface: on request
- Number of interfaces: configured on request

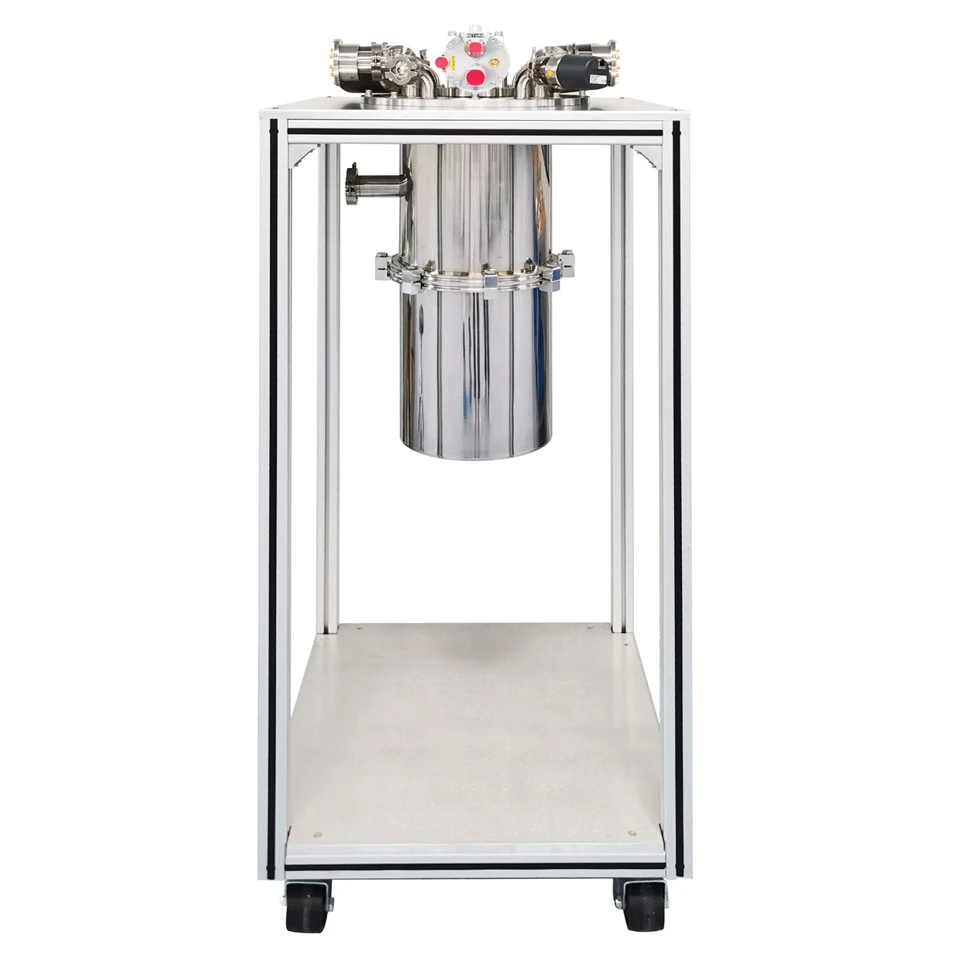

P-CS-0.3/1 K Series
The cryostat temperature zone can cover 0.3 K to 4.2 K and supports user customization. Based on the G-M chiller with adsorption refrigeration module, the P-CS-0.3/1 K series can provide 100 μW of cooling capacity at 300/850 mK.
|
Performance Parameters |
P-CS-1K-ProC |
P-CS-0.3K-ProC |
|
Minimum temperature |
850mK |
300mK |
|
Chiller program |
G-M and sorption |
G-M and sorption |
|
Cooling capacity |
100μW @ 850mK |
100μW @ 350mK |
|
Temperature stability |
±25mK |
±25mK |
|
7*24H continuous operation |
Yes |
Optional |
|
RF connector |
SMA |
SMA |
|
DC Interface |
Optional |
Optional |
|
Optical Interface |
FC optional fiber or customized free space coupling |
|

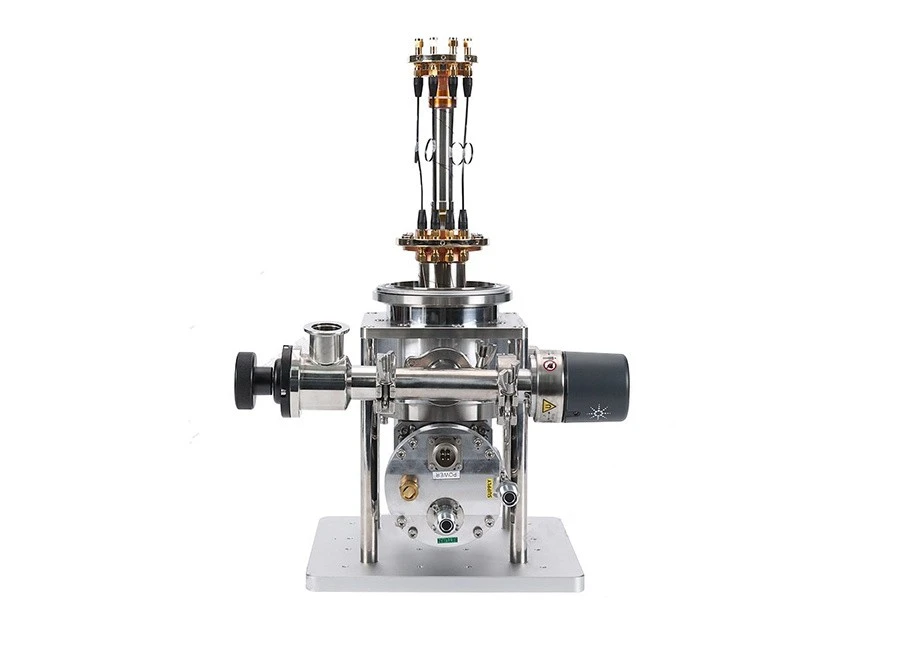

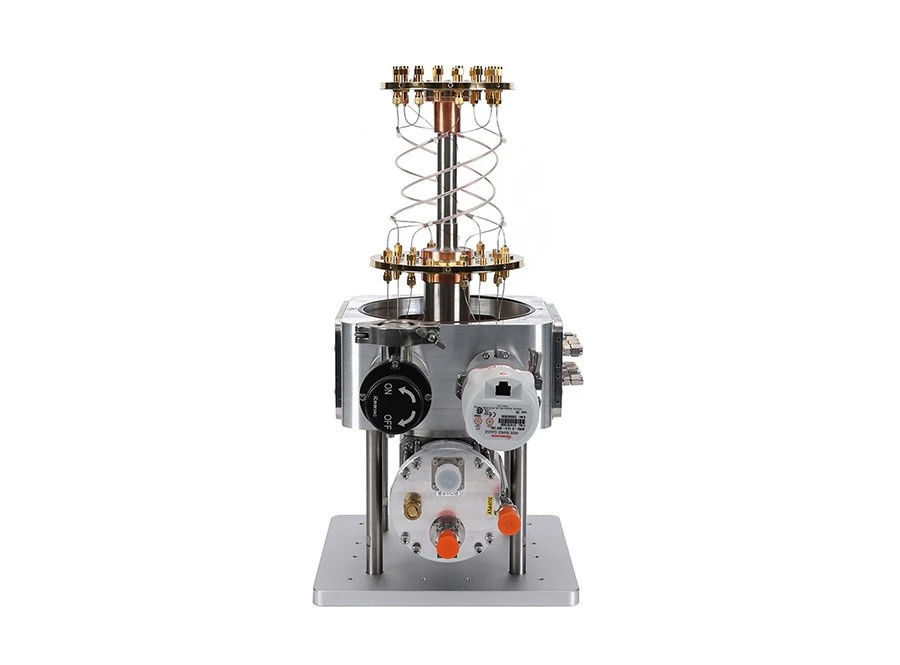

-CS-4K Series
Cryostat temperature zones can cover 0.3 K to 4.2 K and support user customization. Based on the G-M chiller, the P-CS 4K series products are available with a cooling capacity of 0.1 W to 1.0 W at 4.2 K. The P-CS 4K series products are available with a cooling capacity of 0.3 K to 4.2 K and support user customization.
|
Performance Parameters |
P-CS-4K-Mini |
P-CS-4K |
|
Minimum temperature |
2K~4.2K |
2K~4.2K |
|
Chiller program |
GM |
GM |
|
Cooling capacity |
0.1~1W @ 4.2K |
0.1~1W @ 4.2K |
|
Temperature stability |
±5mK |
±5mK |
|
7*24H continuous operation |
Yes |
Yes |
|
RF connector |
SMA |
SMA |
|
DC Interface |
Optional |
Optional |
|
Optical Interface |
FC optional fiber or customized free space coupling |
|
