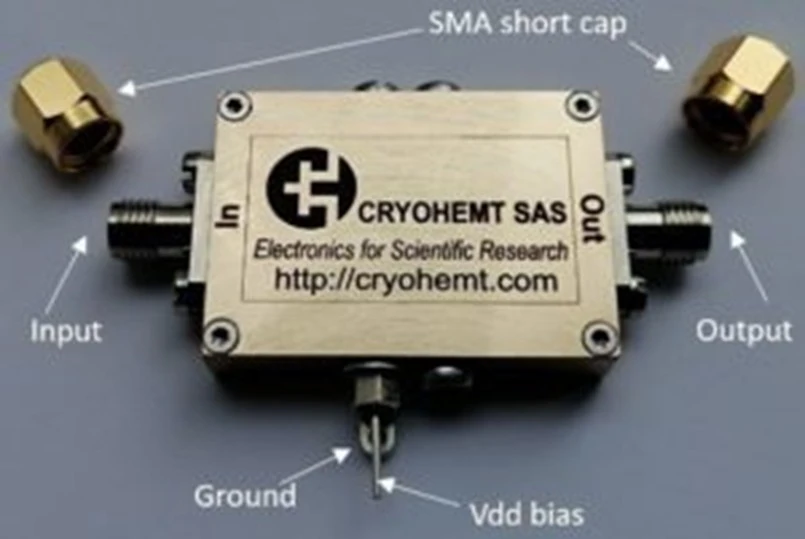

Low Noise Cryogenic Amplifiers
We provide very low noise cryogenic amplifiers based on HEMT technology, which can work stably at a very low temperature of 20 mK, and can achieve a very low noise current of aA/Hz½ and a very low noise voltage of sub-nV/Hz1/2 at a specific frequency, which can be applied in cutting-edge scientific researches, such as cryogenic detector readout, scanning tunneling microscope, and quantum computation, etc. We have published dozens of high-level papers by the related users, including 4 papers in Science, 4 papers in Nature Physics.
|
Product Features |

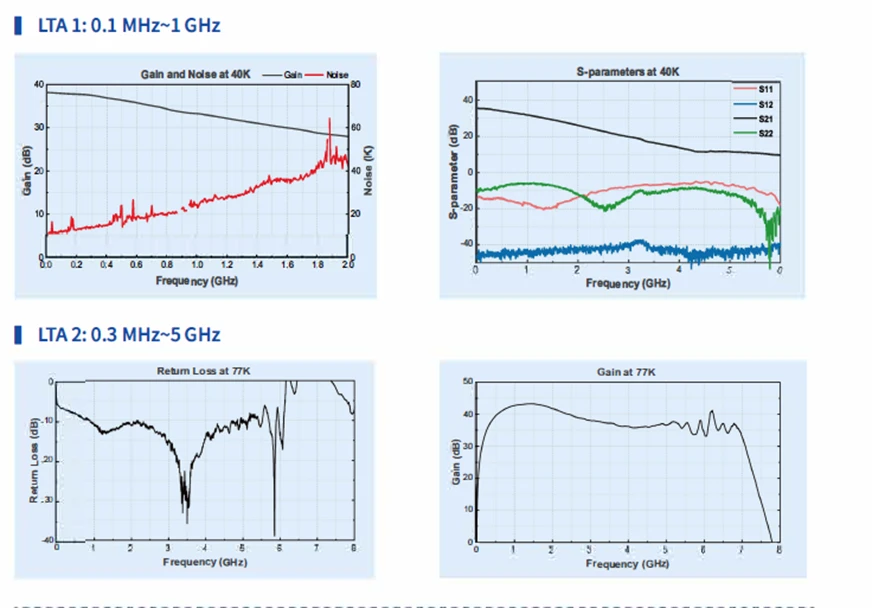

LTA1:0.1MHz~1 GHz |
LTA2:0.3 MHz~5 GHz |
|
RF Bandwidth |
0.1 MHz~1 Gz |
0.3 MHz~5GHz |
|
Noise Figure |
25K@40 K, 15K@4 K |
150 K@300 K |
|
Noise Figure |
0.36 dB@40 K, 0.2 dB@4 K |
1.8 dB@300 K |
|
Gain |
35 dB@4 K, ＞30 dB@77 K |
35dB@77 K |
|
Operating Temperature |
4 K to 325K |
4 K to 325 K |
|
Typical DC Power |
3.5V/6mA |
3 V/25 mA |
|
RF Connectors |
SMA(Female) |
SMA (Female) |
|
DC Connectors |
3-pin,2.54mm |
Parameters
|
Vds |
Min |
0 |
0 |
|
Max |
4 V |
4 V |
|
|
Typical |
3.5 V |
3 V |
|
|
Ids |
Min |
/ |
/ |
|
Max |
30 mA |
40 mA |
|
|
Typical |
6mA@3.5V |
25 mA@3V |
|
|
Vgs |
Min |
/ |
/ |
|
Max |
/ |
/ |
|
|
Typical |
/ |
/ |
|
|
RF Input Power |
-10 dBm |
-10 dBm |
|
|
Operating Temperature |
Min |
4 K |
4 K |
|
Max |
325 K |
325 K |
|
|
ESD Rating (HBM) |
+2000 V (Class 2) |
