DX-2012F Multi-Axis Automated Magnetic Field Analysis Platform
Overview
The DX-2012F represents a cutting-edge solution for advanced magnetic field analysis, designed to deliver precision measurements across complex spatial configurations. Ideal for aerospace, medical imaging, and industrial R&D applications, this platform enables comprehensive 3D mapping of static and dynamic magnetic fields with unparalleled accuracy.
Key Features
- Precision Engineering
Spatial measurement range: 200mm³ (customizable up to 4000mm for specialized projects).
Motion resolution: 0.00039mm (linear axes), 0.0002° (rotational axes).
Multi-axis configurations: Supports 5-axis setups for enhanced flexibility. - Advanced Sensing Technology
Modular Hall probes (1D/2D/3D) paired with digital Gauss meters (0.05%–0.20% accuracy).
Tested and certified by national metrology institutes for reliability. - Automated Workflow

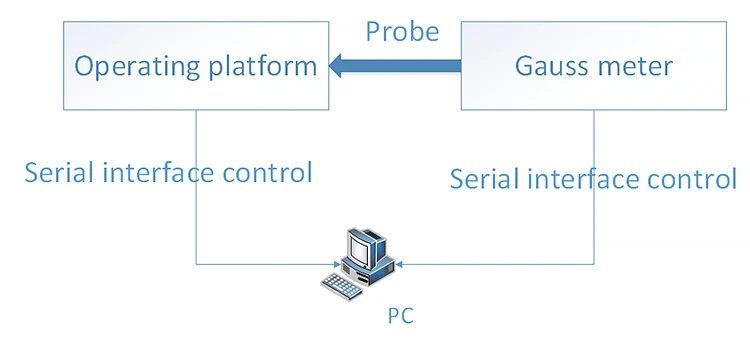

PC-controlled operation with customizable scan paths and motion parameters.
Real-time 3D visualization and automated data logging (Access database integration). - Adaptive Design
Configurable translation/rotation modules for diverse measurement scenarios.
Expandable software for remote monitoring and task automation.
Technical Specifications
Motion System
- Linear Axes (X/Y/Z): Travel 50–4000mm | Resolution: 0.00039mm
- Rotational Axes (T/θz): 360° range | Resolution: 0.0002°
Gauss Meter Models
- DX-360: ±0.15% accuracy | Range: 10nT–30T
- DX-210: ±0.10% accuracy | Range: 10nT–30T
- DX-180: ±0.05% accuracy | Range: 10nT–30T
- DX-160: ±0.20% accuracy | Range: 100nT–3T
Applications
- Motor/actuator magnetic profiling
- Superconducting material analysis
- MRI field optimization
- Aerospace component testing
Service & Support
- Global Shipping: Air, sea, and express delivery options.
- Maintenance: Annual calibration recommended; probe replacement services available.
- Environment: Operates under standard conditions (ambient temperature, minimal EMI).
FAQ
- Probe Compatibility: Interchangeable probes (various sizes/sensitivities) supported.
- Calibration Schedule: Annual recalibration ensures sustained accuracy.
- Environmental Requirements: Stable operation in standard labs; avoid strong EMI sources.
