Magnetic Gauss meter
Introduction
The DX-190 Gauss meter is a highly accurate instrument suitable for the vast majority of application fields, with the functions of automatic zeroing and automatic range. The maintenance mode can be selected as maximum, minimum, peak, and valley. The instrument can simultaneously measure and display multiple parameters. With high-precision analog output (± 3.0V). The measurement units can be Gs, mT, A/M, or Oe. The instrument comes with USB-232, BNC, CAN, and industrial control interfaces. High resolution capacitive touch color graphic display, measurement graphic display, Gaussian meter self drawing, full menu operation, 6-digit reading, resolution of 0.1 μ T. The maximum range is 30T, and the basic accuracy is ± 0.05%. The standard configuration is the PC version of Gauss Meter Drawing Software, which comes with a high-precision digital probe with temperature compensation. Optional Android version mobile app communication for testing, storage, communication, drawing, remote control automation all-in-one machine, high-precision high-speed digital and analog signal output.
2.Features of DX-190 Gauss tesla meter
2.1. 7.0 inch 1024 * 600 high-resolution capacitive touch IPS intelligent screen with excellent human-machine interaction interface, more convenient and fast operation
2.2. Switchable units: mT, Gs, Oe, A/m
2.3. Multiple transmission speeds of 10, 20, 50, 100, 200, 500, and 1000Hz are available for serial port selection
2.4. Multiple measurement modes: DC, AC_ L (up to 25Kbps), AC (effective value mode 500K, Bandwidth), Ethernet high-speed mode
2.5. Multiple information displays: magnetic field, frequency, temperature, maximum, minimum, peak, valley, datetime
2.6. High-speed Ethernet with up to 25Kbps sampling for a more intuitive real-time waveform display
2.7. Multiple communication methods are available: isolated USB serial port, isolated CAN, analog BNC, Ethernet WIFI/Bluetooth
2.8. Global wide range AC power supply 100~240VAC 50/60Hz
2.9. Dedicated small aviation plug can automatically recognize probe information, and is equipped with multiple sensors: Hall sensor (Normal temperature, high and low temperature), magnetoresistive sensors
2.10. Industrial control specialization scheme: capable of multiple CAN network communication, external triggering, and early warning industrial control output
2.11. Provide a wide range of operation instruction sets for easy secondary development
Specifications of DX-190 Gauss tesla meter
|
Range |
±300KG (30T) |
|
Resolution |
1mG |
|
Accuracy (display value) |
DC: DC reading ±0.05% ±0.005% of range; |
|
AC: ±1% ±0.05% of the AC reading range |
|
|
Frequency Range |
DC mode DC |
|
AC mode (effective value) 0-100kHz |
|
|
Frequency display range: 1 to 9999Hz |
|
|
Analog output (x, y, z) |
Output voltage: ±3VF.S. |
|
Analog interface |
BNC±3T |
|
Additional impact |
Temperature coefficient ±(0.01%±1 count)/ °C |
|
temperature range |
Operating temperature 0 °C to +50 °C |
|
Storage temperature -20 °C to +60 °C |
|
|
Communication Interface |
USB-232, CAN, Ethernet, WIFI, BLE, industrial control interface |
|
Panel display |
7.0 inches 1024*600 high resolution |
|
power supply |
100~ 240VAC 50/60Hz |
|
Probe selection |
DX-190 Gauss meter can be equipped with conventional and high and low temperature resistant one-dimensional probes, single-axis probes, and transverse probes. |
Application

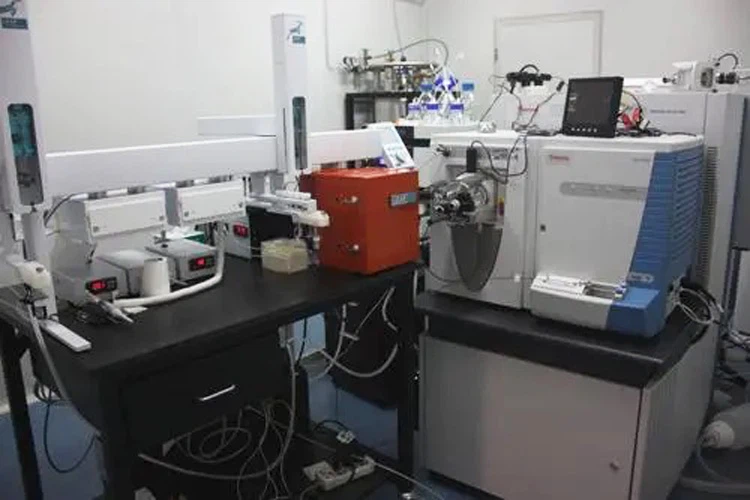

4.1 Scientific research
4.2 Military industry

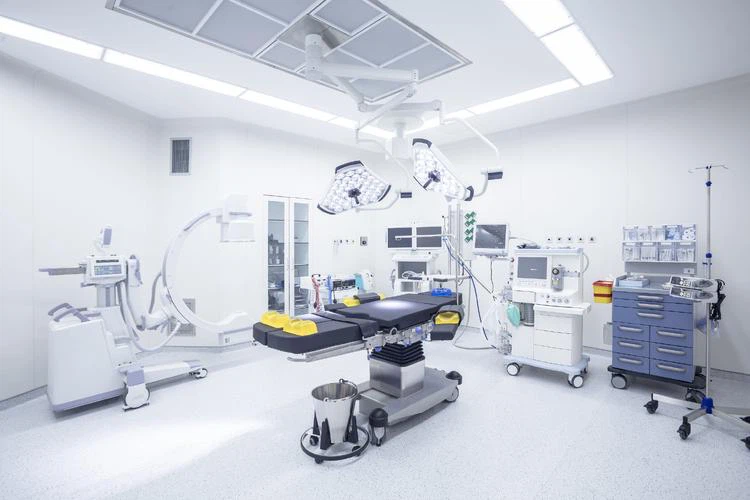

4.3 Medical field

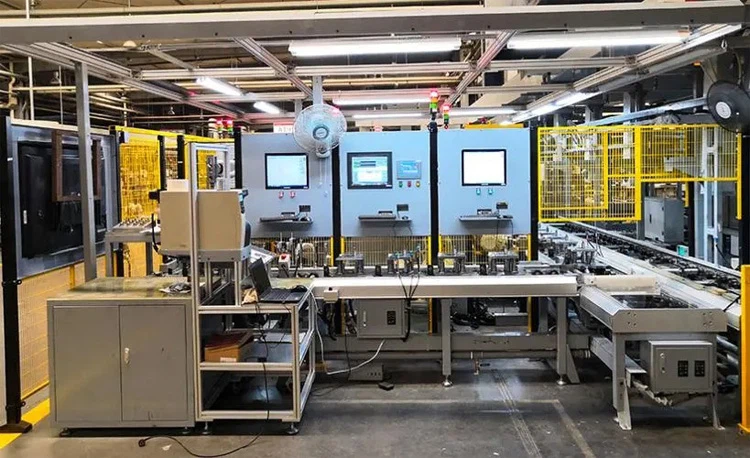

4.4 Production industry
The Interface of Mapping Software

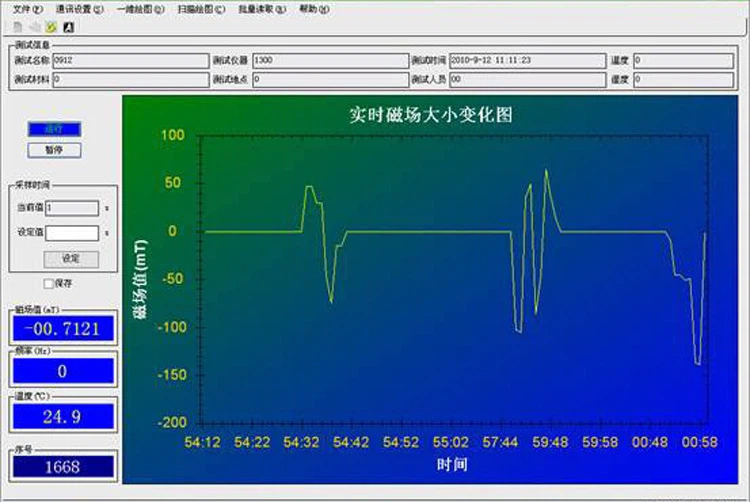

Mapping software interface

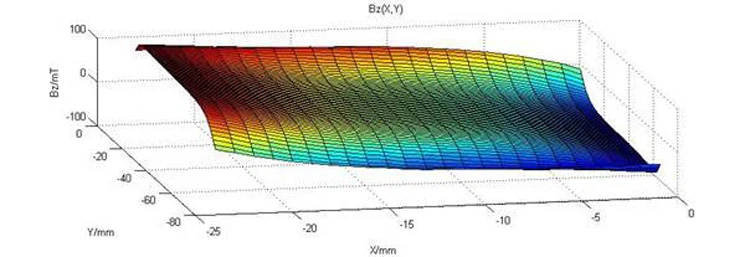

Picture 1: D plot of rectangular magnets

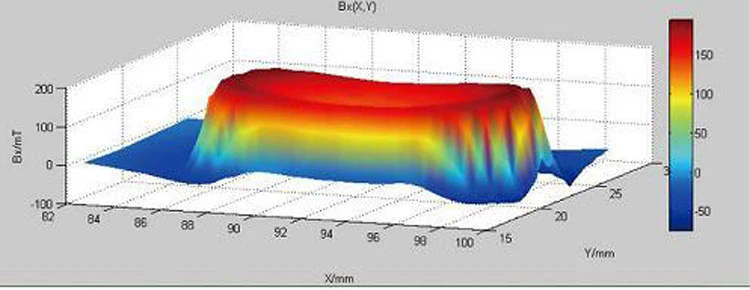

Picture2: D plot of elliptic magnets

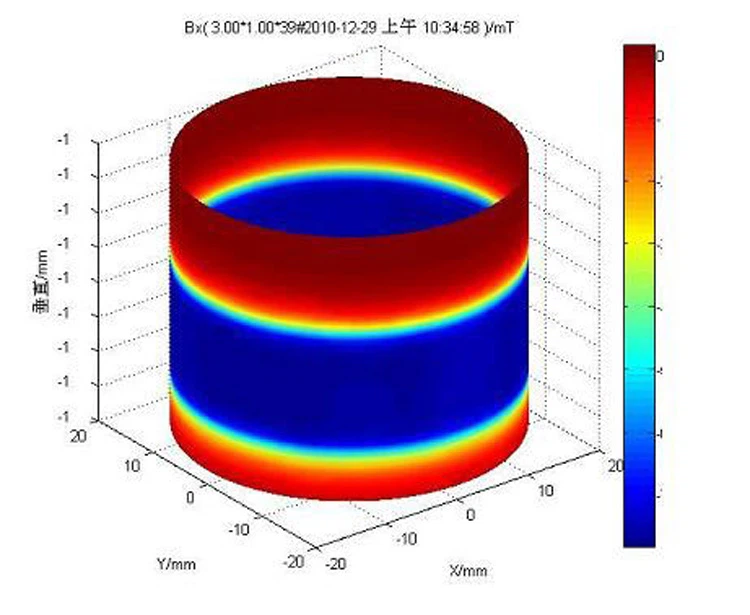

Picture3: D plot of cylindrical magnets

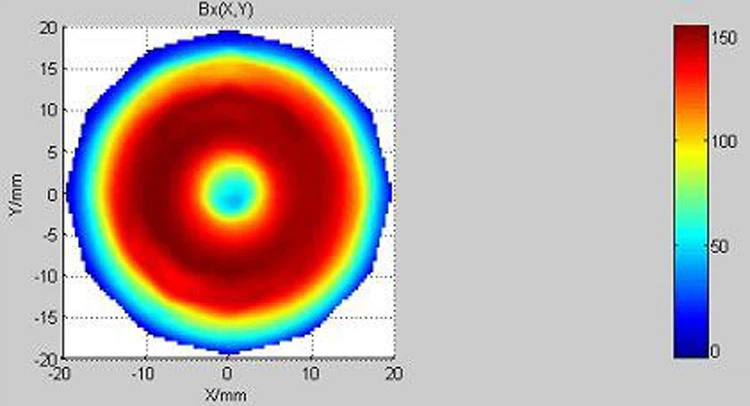

Picture4: D plot of circular magnets

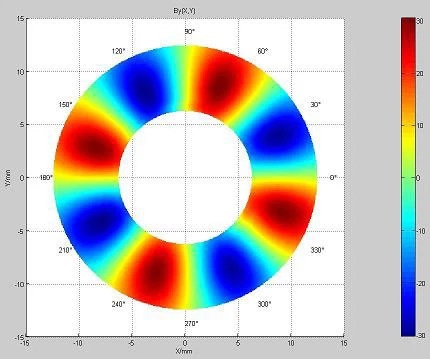

Picture5: D plot of multipole ring magnets

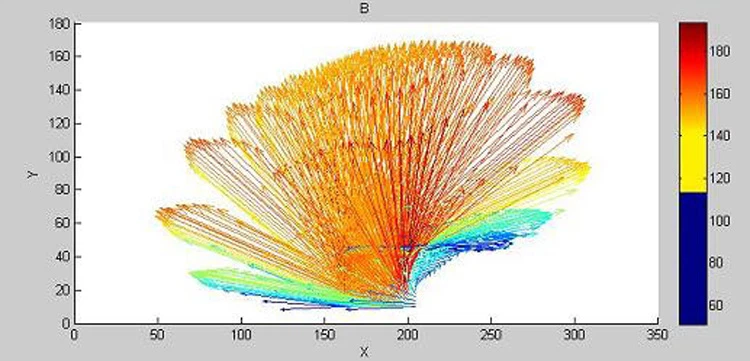

Picture6: Magnets 3D distribution vector diagram
