AC and DC Gauss Tesla Meter

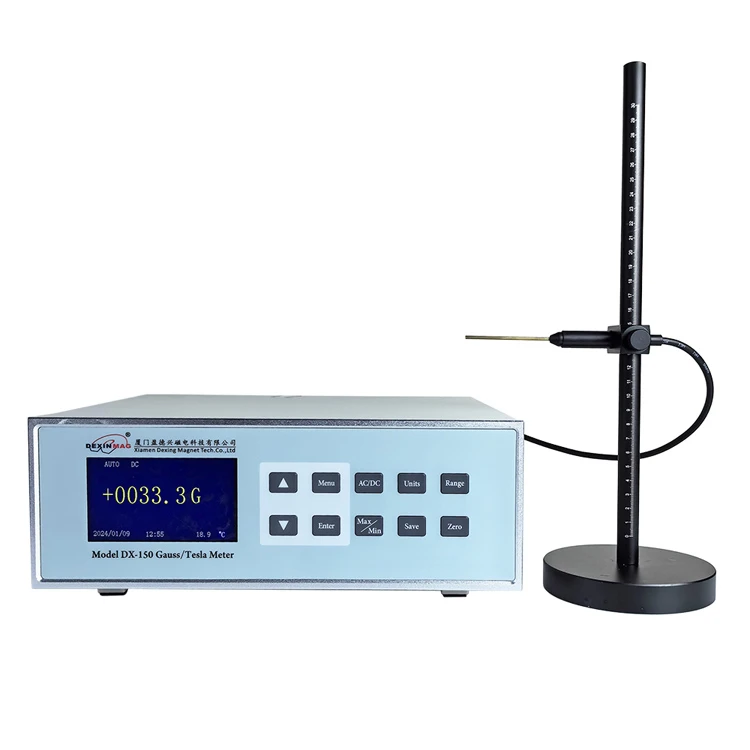

DX-150 AC and DC Gaussmeter

The DX-150 is a cutting-edge instrument engineered for precise measurement of both static and dynamic magnetic fields across diverse environments. Combining portability with laboratory-grade accuracy, it serves as an essential tool for professionals requiring reliable flux density analysis in research, industrial, or field applications.

• Dual-Mode Detection: Seamlessly switches between AC (20Hz-20kHz) and DC field measurements
• Enhanced Readability: Crisp 128x64-pixel LCD with 4.75-digit resolution
• Adaptive Scaling: Auto-ranging with manual override for specialized scenarios
• Multi-Unit Display: Instant toggle between Gauss and Tesla units
• Smart Calibration: Automated probe calibration with 30+ sensor options
• Data Management: 500-record storage with timed/instant capture modes

| Measurement Scope | 0.1Gs - 30kGs (DC) / 1Gs - 30kGs (AC) |
| Precision Tolerance | ±0.3% +0.05%FS (DC) / ±2% +0.5%FS (AC) |
| Thermal Stability | ±0.03% per °C within 0-50°C operational range |
| Connectivity | RS-232 interface with adjustable baud rates |
| Power Requirements | 200-240V AC, 50-60Hz universal input |

• Peak Capture: Real-time tracking of maximum/minimum flux values
• Threshold Alerts: Programmable alarms for critical field strengths
• Temporal Analysis: Built-in clock with temperature compensation
• Modular Design: Supports ultra-thin (1mm) probes for surface measurements

• Advanced Material Studies: Characterize magnetic composites & alloys
• Defense Systems: Validate EM shielding effectiveness in military hardware

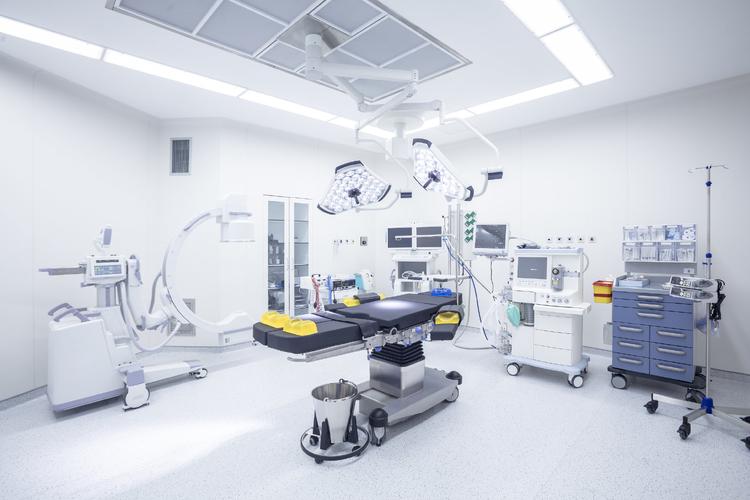

• Medical Equipment: Calibrate MRI ancillary components

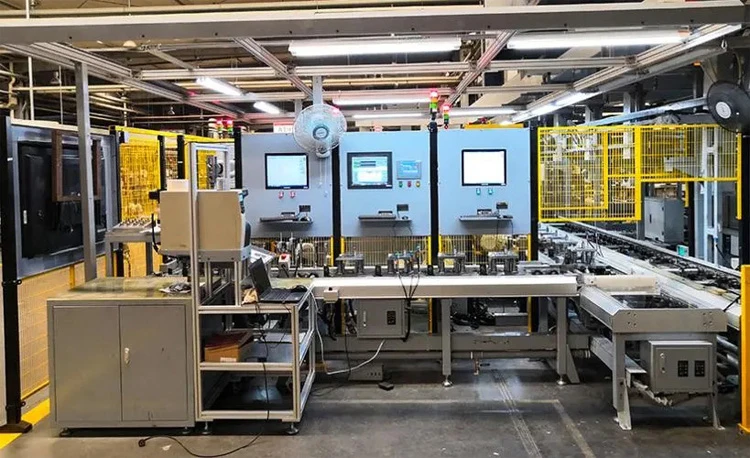

• Manufacturing QC: Monitor production-line magnetizers & demagnetizers

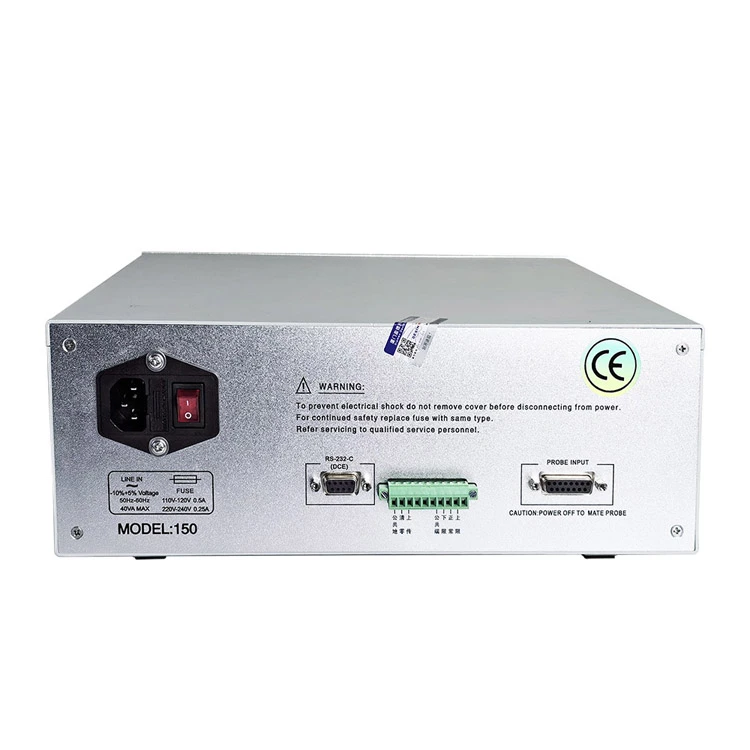

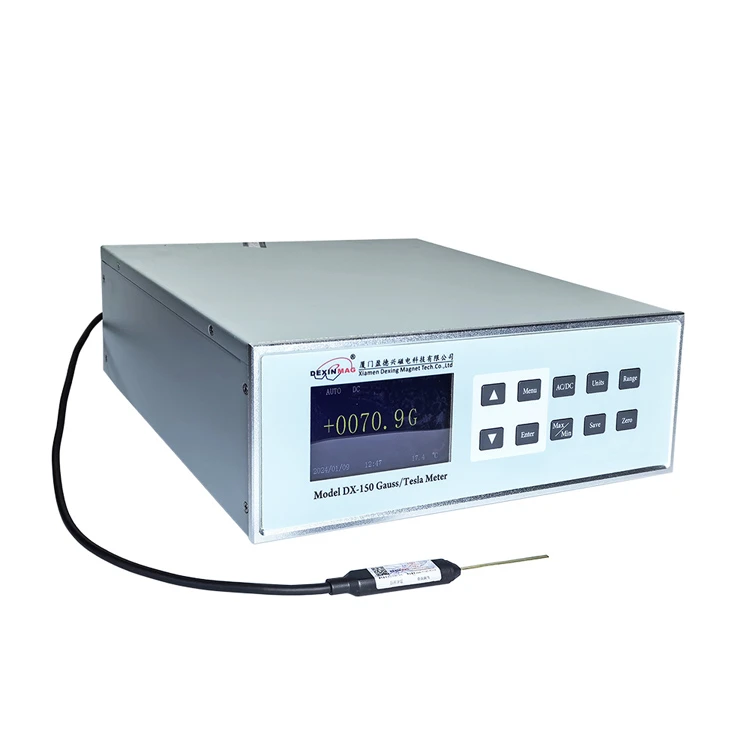

1. Compact 450g chassis with tri-view interface (front/back/side ports)
2. Intuitive menu navigation with tactile feedback controls
3. Ruggedized casing compliant with MIL-STD transit protection

• Data Logging: Scheduled captures (1-60s intervals) with timestamp review
• Freeze Frame: Instantaneous measurement locking for critical analysis
• Multi-Probe Support: Pre-configured profiles for specialized sensors

This instrument redefines portable magnetometry through its fusion of precision engineering and user-centric design, enabling accurate field characterization across scientific and industrial disciplines.
