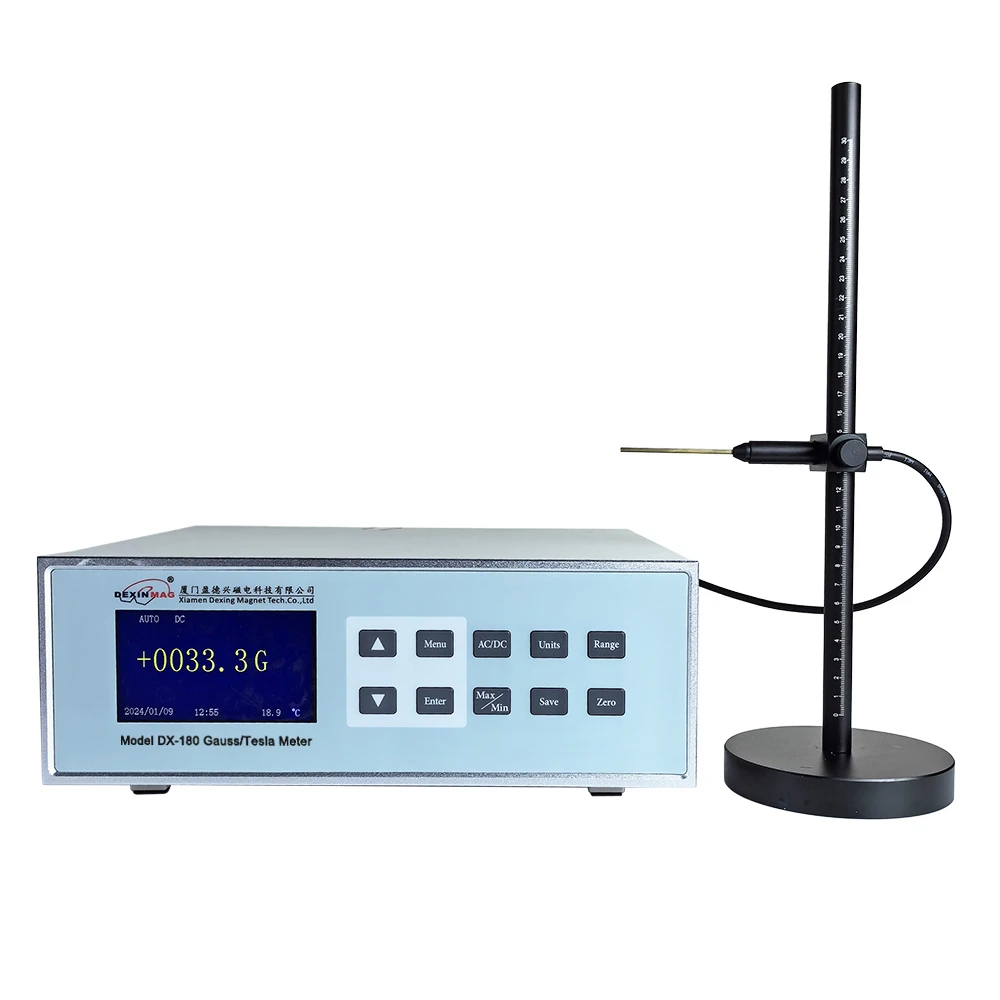

DX-180 Ultra-Precision Gauss/Tesla Meter
Model: DX-180
Advanced DC/AC Magnetic Field Analysis
Overview
The DX-180 redefines magnetic field measurement with unmatched accuracy for industrial, scientific, and medical applications. Engineered with cutting-edge sensor technology, this device delivers precise DC/AC field analysis through a high-sensitivity magnetometer paired with real-time digital processing. Its intuitive interface and multi-functional capabilities make it indispensable for quality assurance, R&D, and industrial diagnostics.
Key Innovations
- Dual AC/DC Measurement: Seamlessly switch between static and dynamic field analysis.
- 5¾-Digit VGA Display: Vibrant color screen with adjustable brightness and timing.
- Smart Calibration: Auto-zero, probe recognition, and temperature compensation.
- Data Management: Auto/manual storage, historical review, and RS-232C output.
- Custom Mapping: Integrated software for 2D/3D field visualization (rectangular, cylindrical, multi-pole magnets).
- Versatile Probes: 0.8mm ultra-thin standard sensor + 20+ specialized options.
- Remote Control: Wired/wireless operation up to 1,500 meters.
Technical Specifications
| Parameter | Details |
|---|---|
| Measurement Ranges | 0.1mG–30Gs / 1mGs–300Gs / 0.01Gs–3kGs / 0.1Gs–30kGs / 1Gs–100kGs* |
| Resolution | 0.1mGs (0.01μT) |
| Accuracy | DC: ±0.05% + 0.005% range; AC: ±1% + 0.5% range |
| Frequency | DC mode / AC mode (2Hz–100kHz) |
| Output | ±3V analog (BNC), RS-232 interface |
| Temperature | Operational: 0–50°C; Storage: -20–60°C (±0.015% accuracy/°C compensation) |
| Power | 200–240V AC, 50–60Hz |
| Display | 3.5" Full-color LCD (320×240 pixels) |
| *Requires probe replacement (auto-detected). |
Industry Applications
- R&D Labs: Material characterization, sensor calibration.
- Aerospace/Defense: Component testing, EMI compliance.
- Medical Tech: MRI calibration, equipment validation.
- Manufacturing: Quality control, stray field detection.
Functional Highlights
- Dynamic Graphing: Real-time field strength visualization.
- Alarm System: Threshold alerts for out-of-spec conditions.
- Range Modes: Auto-scaling or manual selection (3 ranges).
- Unit Flexibility: Gauss, Tesla, A/M, Oe.
- Peak Capture: Max/min/peak/valley hold functions.
Software Integration
- Included Suite: Full data acquisition tools for field mapping.
- Visualization: 2D/3D vector diagrams for complex magnet profiles.
Application
4.1 Scientific research
4.2 Military industry
4.3 Medical field
4.4 Production industry
The Interface of Mapping Software
Mapping software interface
Picture 1: D plot of rectangular magnets
Picture2: D plot of elliptic magnets
Picture3: D plot of cylindrical magnets
Picture4: D plot of circular magnets
Picture5: D plot of multipole ring magnets
Picture6: Magnets 3D distribution vector diagram
