Silicone Gasket Seal Welding Machine
Feature:
Light weight
Work efficiency：200-350 sets / shift
Package dimension: 2520*780*1600mm
Product Introduction
The silicone gasket seal welding machine is used for the silicone gasket corner welded.
Silicone gasket seal welding machines is a modern equipment designed to improve efficiency and accuracy in the production of silicone gaskets. These silicone gasket welder use the latest welding technology to join silicone gaskets with precision, ensuring that your gaskets are welded in the highest standard.
The silicone gasket welding machines is highly versatile, which can be used to weld a variety of silicone gasket shapes and sizes after equipped the different mold, making them ideal for use in a wide range of industries, including the automotive, aerospace, and electronics sectors.
Another key advantage of these machines is their ability to work with a range of materials, such as silicone rubber, silicone foam, or silicone sponge. making them a valuable investment for any business that requires high-quality, reliable silicone gaskets.
The feature of the silicone gasket welding machine
- Easy operation
- Light weight
- It is widely used in fridge room gasket, car gasket, container gasket.
The main parameters:
|
Dimensions |
2440*1200*1500mm |
|
Horizontal clamping stroke |
50mm |
|
Longitudinal clamping stroke |
80mm |
|
Electric heating system power |
3.2 KW |
|
Work efficiency |
200-350 sets / shift |
|
Power supply voltage |
220V 50Hz (can be customized according to customer requirements) |
Main configuration：
2.1 Heating bar ------------ φ12 × 120mm 2.2 Contactor ------------Siemens 2.3 Time Relay --------- Xin Ling 2.4 Mold material --------------4Cr13 2.5 Pneumatic Components -------------- china

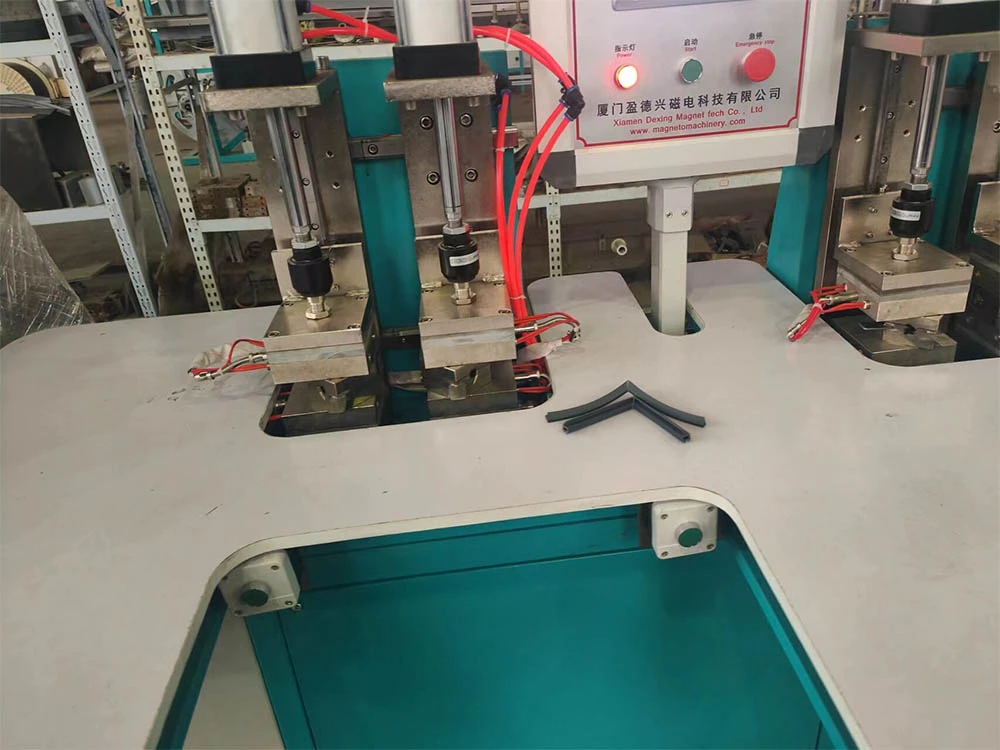

Welding mold of the Silicone Gasket Seal Welding Machine

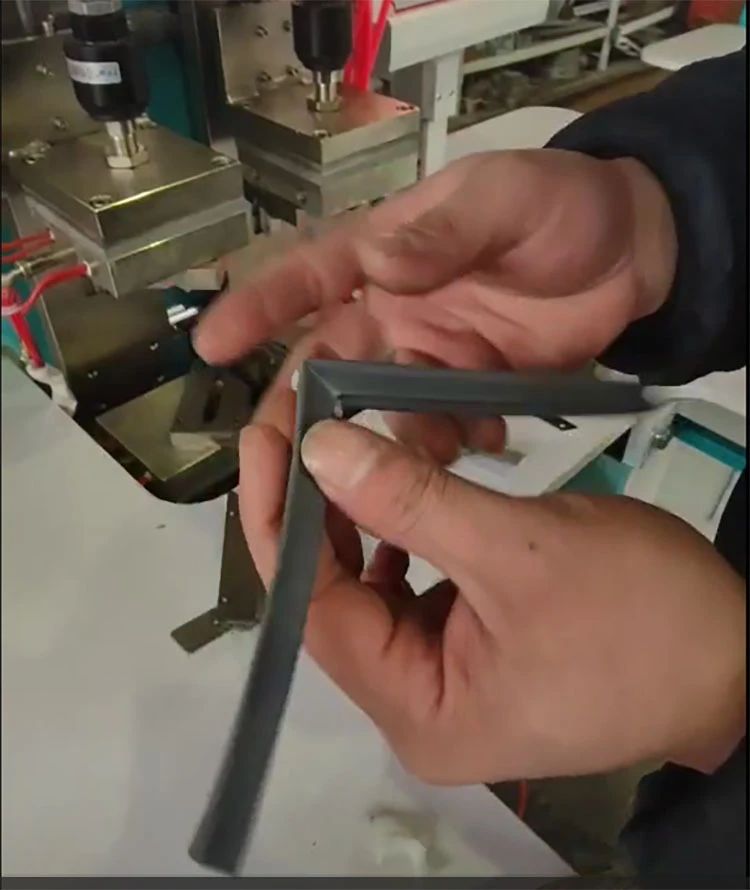

Welding effect of the silicone door gasket welding machine:
Package picture of our equipment:
Reference customers

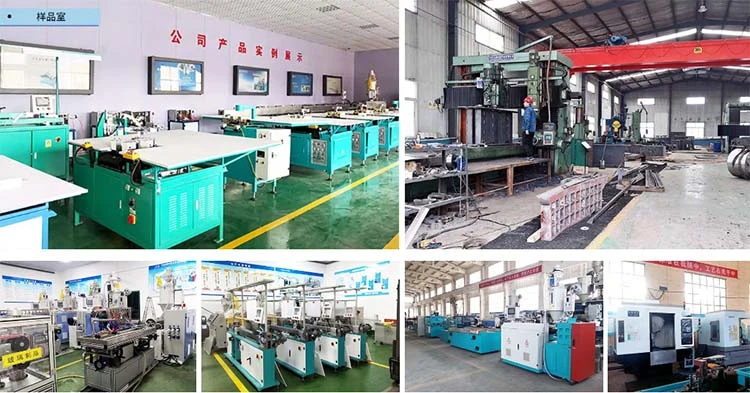

The display of our workshop
After sales service
The warranty period of our system is 12 months.
We could offer the accessories free during warranty period (shipping cost is excluded out of China).
If there is any problems during usage of our system, we would make feedback in 24 hours.
Dexing Company would offer the lifelong service for every system.
FAQ
Warmly welcome friends from all over the world to visit, investigate and negotiate business.
