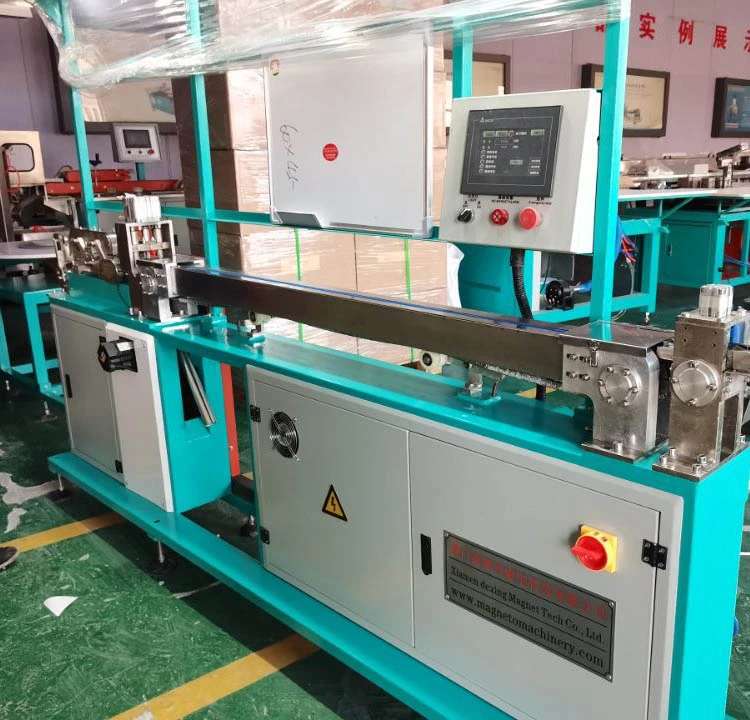

Magnet Strip Inserting Machine

• Automated PLC-driven operation
• Adjustable cutting length (45° edge precision)
• Synchronized conveyor integration
• ±0.1mm tolerance accuracy
• Speed range: 1-20 meters/minute

This advanced automated solution revolutionizes magnetic strip integration for appliance sealing components. Engineered for refrigerator door gaskets and similar applications, the system combines precision engineering with industrial automation to streamline magnetic core insertion into PVC profiles. Its modular design enhances manufacturing consistency while minimizing manual intervention.

Precision Cutting Module

• Laser-calibrated servo cutting mechanism
• Angled edge preparation for seamless joint alignment

Automated Insertion Unit

• Pneumatic-guided placement system
• Real-time magnetic polarity verification

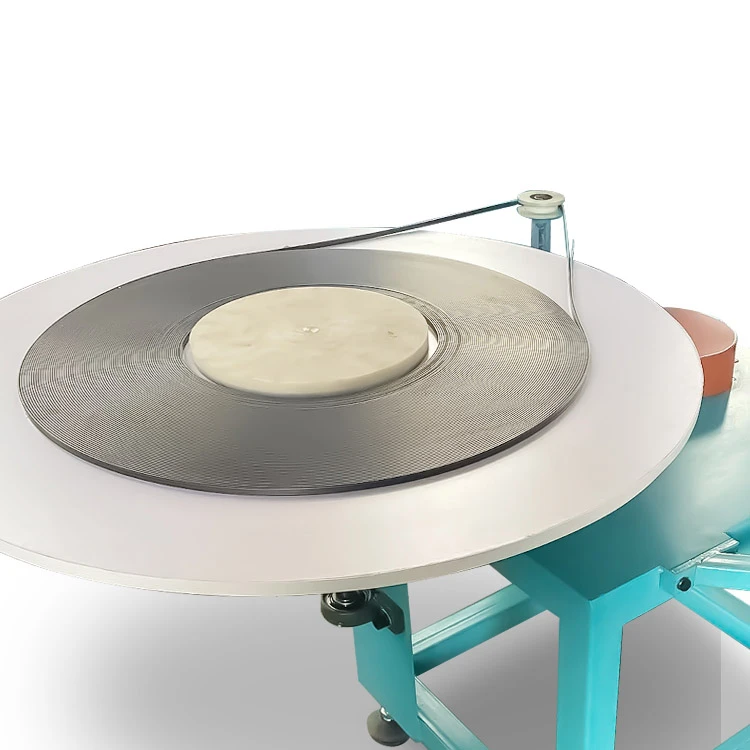

Material Handling System

• Roller-based strip feeding with tension calibration
• Fault detection sensors for continuous operation

Operational Framework

1. Power Requirements: Customizable 3-phase 380V/50Hz configuration
2. Energy Consumption: 1.6kW peak load
3. Dimensions: Modular units (3200×600×1230mm primary; 800×580×780mm auxiliary)

Control Architecture

1. Central Processor: Delta programmable controller
2. Interface: HMI touch panel for parameter configuration
3. Drive System: Variable frequency servo coordination

Safety Components:

• Schneider protection relays
• CHINT circuit breakers (6-10A range)

Quality Assurance & Support

• 12-month comprehensive warranty
• Priority technical response within 24 hours
• Lifetime maintenance support
• Replacement parts program (excludes international shipping)

Industrial Advantages

• 68% reduction in material waste vs manual methods
• Scalable production speeds for batch flexibility
• Cross-compatible with multiple gasket profiles
• Maintenance-friendly component layout

Note: Operational training and installation calibration included with procurement.
