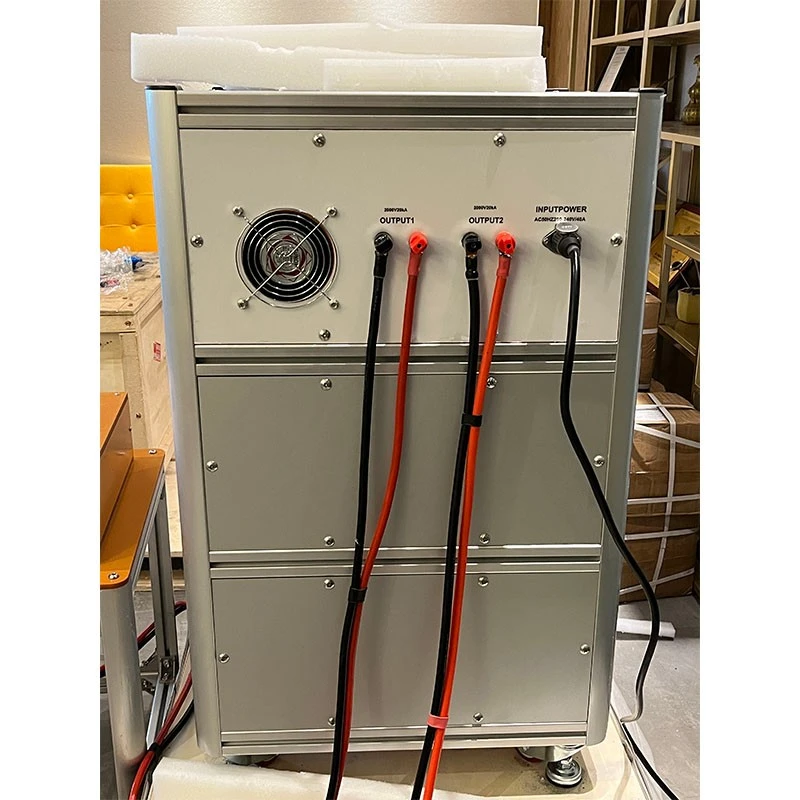

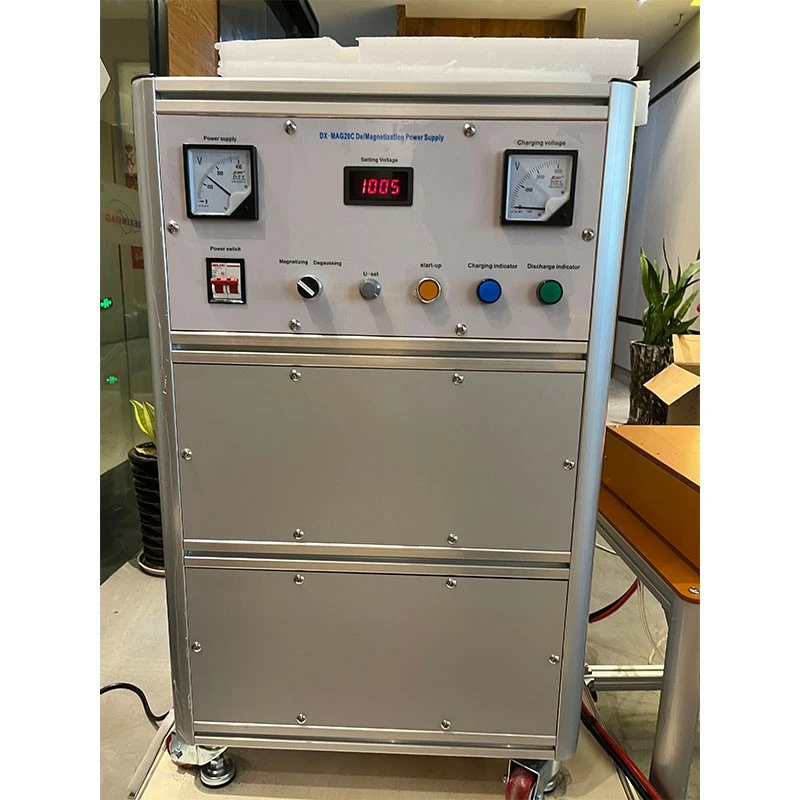

Capacitive Pulse Magnetizer

DX-MAG series capacitive pulse magnetizer is a precision instrument designed for efficient magnetization. This series of products combines advanced technology with reliable quality and is an ideal choice for magnetizing permanent magnet products in industries such as speaker production, DC motors, DC fans, stepper motors, rubber magnets, and toys.

DX-MAG capacitor pulse magnetizer consists of high-voltage oil-immersed pulse capacitors, thyristor rectifiers and precision control circuits. The AC power is first boosted by an isolation transformer, then converted into DC power by a rectifier to charge the capacitor, and the high-voltage DC power is stored in the capacitor.

When the capacitor reaches the set voltage, the charging circuit is automatically disconnected. Subsequently, under the control of the thyristor, the high-power discharge energy is released through the magnetizing coil, generating a strong magnetic field to saturate the magnet. This process ensures the continuity and stability of magnetization.

1. Low energy consumption: The electromagnetic flux recovery technology is used to reduce energy consumption and reduce coil heating effectively.

2. High efficiency: The capacitive pulse system makes the magnetization efficiency three times higher than that of traditional magnetizers.

3. Customized fixture: The magnetization fixture can be designed according to user needs to ensure high precision and durability.

In today's rapidly changing business environment, providing excellent customer service is a key cornerstone for building lasting customer relationships. We firmly adhere to the "customer-centric" concept and conduct comprehensive and detailed evaluations of various modes of transportation, including air, sea and land transportation. We are committed to developing tailor-made solutions to accurately meet the unique needs of our customers and continue to pursue excellence and exceed customer expectations. We ensure that every shipment can be delivered to the destination on time, safely and accurately, thus providing all our valued customers with a worry-free and reliable delivery experience. We know that customer satisfaction and trust are our most valuable assets and the driving force for our continuous progress.

Question 1: How does the DX-MAG capacitor pulse magnetizer achieve efficient magnetization and reduce energy consumption?

Answer:

High-voltage oil-immersed pulse capacitor: High-voltage oil-immersed pulse capacitor is used to store high-voltage DC energy, ensuring that high-energy pulses are released in an instant to achieve rapid magnetization.

Discharge control: By precisely controlling the SCR (silicon-controlled rectifier), the high energy stored in the capacitor is discharged efficiently, ensuring that the magnetic field is strong and short in duration and reducing energy consumption.

Discharge magnetic flux recovery technology: This technology can reduce coil heating, thereby further reducing energy consumption and improving magnetization efficiency.

Question 2: How does the DX-MAG capacitor pulse magnetizer ensure magnetization accuracy and stability during the magnetization process?

Answer:

High-precision fixture design: High-precision fixtures are designed according to user needs to ensure that the magnet is in a stable position during the magnetization process and improve magnetization accuracy.

Control system optimization: Using advanced control systems to accurately control parameters such as voltage and current during the magnetization process to ensure the stability and accuracy of the magnetization process.

Electromagnetic field numerical calculation: Through electromagnetic field numerical calculation, the magnetic field distribution during the magnetization process is simulated and optimized to ensure uniform and stable magnetic field strength and improve magnetization accuracy.

Question 3: How does the DX-MAG capacitive pulse magnetizer deal with the magnetization problem of high internal coercive force permanent magnets?

Answer:

Large-capacity capacitors: Large-capacity capacitors are used to store sufficient energy to ensure that sufficient magnetic field strength can be provided when magnetizing high internal coercive force permanent magnets.

Optimization of magnetization circuit parameters: Accurately calculate and optimize the parameters of the magnetization circuit to ensure that the expected magnetic field strength and magnetization effect can be achieved when magnetizing high internal coercive force permanent magnets.

Magnetization head design: According to the characteristics of high internal coercive force permanent magnets, a special magnetization head is designed to ensure uniform and stable magnetic field distribution and improve magnetization accuracy and efficiency. At the same time, the cooling system of the magnetizing head is strengthened to ensure that the magnetizing head can maintain stable operation during the high-intensity magnetizing process.
