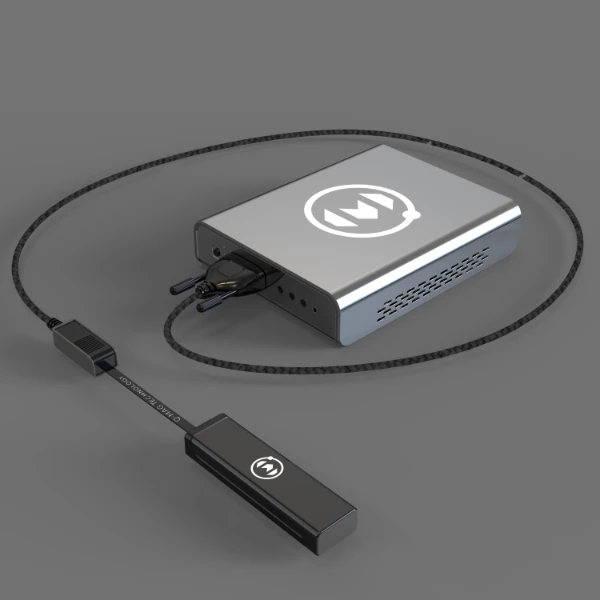

LCZ-01 Zero-Field Atomic Magnetometer
Overview
The LCZ-01 represents a cutting-edge atomic magnetometer leveraging the Spin-Exchange Relaxation-Free (SERF) principle, recognized for achieving the highest magnetic field sensitivity available. This compact device integrates advanced laser control systems, precision non-magnetic heating technology, and optimized atomic vapor cells to deliver exceptional performance in a miniaturized form factor. Engineered for both research and industrial applications, it offers a complete solution with intuitive control software and real-time data processing capabilities, ensuring seamless operation regardless of user expertise.
Core Features
- Ultra-High Sensitivity: Measures magnetic fields as low as 15 fT/√Hz (typical), enabling detection of biomagnetic signals and subtle electromagnetic phenomena.
- Compact & Robust Design: Miniaturized architecture ideal for field deployment and space-constrained environments.
- Dual-Axis Operation: Supports Y-axis, Z-axis, or simultaneous Y/Z-axis measurements for flexible spatial analysis.
- Integrated Thermal Management: Precision heating maintains optimal vapor cell performance with surface temperatures under 50°C.
- Multi-Output Interface: Digital (USB/Ethernet) and analog outputs for compatibility with diverse data acquisition systems.
- User-Friendly Software: Comprehensive suite for device control, calibration, noise filtering, and real-time visualization.
Technical Parameters
|
Parameter |
Specification |
|
Sensitivity |
15 fT/√Hz (typ.); 25 fT/√Hz* |
|
Dynamic Range |
±4 nT |
|
Bandwidth |
1 Hz – 70 Hz |
|
Measurement Modes |
Y-axis, Z-axis, Y/Z-axis |
|
Outputs |
Digital, Analog (±10 V range) |
|
Surface Temperature |
<50°C during operation |
|
Max Ambient Field |
<60 nT (shielding recommended) |
|
Power Requirements |
24 V DC, <50 W |
|
*Note: Sensitivity of 25 fT/√Hz shown under specific test conditions; typical operational sensitivity is 15 fT/√Hz.* |
|
FAQ
Q: What applications benefit most from the LCZ-01's sensitivity?
A: Its 15 fT/√Hz sensitivity makes it ideal for biomagnetism (e.g., magnetocardiography), geophysical surveys, non-destructive testing, and fundamental physics research requiring ultra-low field detection.
Q: Can it operate without magnetic shielding?
A: While functional in ambient fields <60 nT, optimal performance requires minimal interference. For high-noise environments (e.g., urban areas), passive/active shielding is recommended.
Q: How does dual-axis (Y/Z) measurement enhance data accuracy?
A: Simultaneous Y/Z-axis detection captures vector field components without device repositioning, critical for mapping field gradients or studying dynamic magnetic sources.
Q: Why is thermal management critical for SERF magnetometers?
A: Atomic vapor cells demand precise temperature control to maintain optimal density and minimize spin-exchange collisions. The LCZ-01's sub-50°C surface design ensures stability without external cooling.
