The DX-530 portable digital flux gate meter is magnetic field measurement equipment that integrates high precision, high stability, and ease of use. It uses advanced fluxgate technology to accurately measure weak static and low-frequency vector magnetic fields, providing users with accurate and reliable magnetic field data. The DX-530 portable digital flux gate meter comes with two 220v 50hz power interfaces to power the equipment in the kit.
The power supply unit can supply power to the fluxgate and provide the same gate signal output interface. The acquisition unit can collect the fluxgate signal output by the power supply unit. The computer can read and save the data collected by the acquisition unit. The fluxgate probe can measure the data in the measuring range magnetic field, a series of supporting equipment and documents (power adapter of a portable computer, power adapter of acquisition card, BNC connecting wire, network cable, software instructions, schematic diagram of line connection, etc.), triangle bracket is used to fix the probe outdoors, data reading software is installed in the computer to read and collect data, to facilitate your accurate measurement.
Product Characteristics
High precision measurement: Advanced fluxgate technology ensures the accuracy and reliability of the measurement results. It can provide stable and high-precision magnetic field data in the laboratory or the field environment.
Portable design: small size, lightweight, easy to carry and operate. Users can easily put it in a backpack or toolbox and take magnetic field measurements anytime.
Digital display: In real-time, a high-resolution LCD screen can display key information such as magnetic field strength and direction. The interface design is simple and clear, making it convenient for users to read the data quickly.
Multiple measurement modes: To meet users' different measurement needs, the system supports a variety of measurement modes, including single-point measurement, continuous measurement, scanning measurement, etc.
Data storage and export: The built-in large-capacity memory can store a large number of measurement data. At the same time, it supports data export to computers or other devices through the USB interface, which is convenient for users to analyze and process data.
Long-term battery life: Low power consumption design, with high-performance lithium batteries, to ensure the long-term battery life of the product. Even in a continuous working state, it can maintain stable operation for a long time.
Parameters
|
DX-530 Portable Digital Flux Gate Meter |
|
|
Acquisition frequency |
10-60k hz |
|
Resolution |
0.1nT |
|
Range |
±100μT/±1000μT |
|
Continuous working time |
Above 3 hours |
|
Number of data stores |
Save more than 10w pieces continuously by computer (depending on computer configuration) |
|
Laptop |
ThinkPad x270 |
|
Fluxgate probe |
Barrington mag-690 (it can be replaced in special-use environments such as high temperature and waterproof) |
|
Suitcase size |
46*19*37cm |
Work information

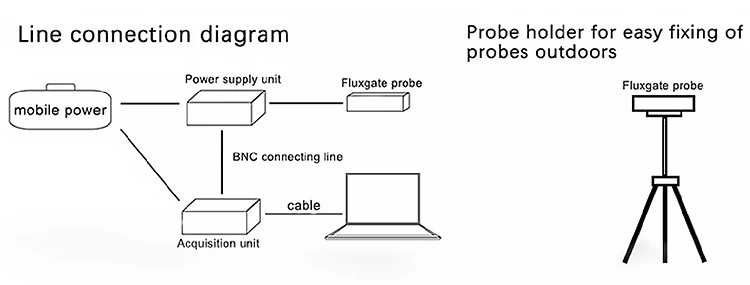

The acquisition unit and the power supply unit are powered by the mobile power supply; the fluxgate probe is connected to the power supply unit through its own 15-pin connection line; the power supply unit is connected to the acquisition unit through three BNC signal lines; the acquisition unit is connected to the computer through the network cable; the computer is connected to the software connection acquisition unit for data reading; the computer can be charged through the mobile power supply when the computer power is insufficient. The real-time waveform and value can be observed through computer software, and the saved data can be viewed, exported, and used for spectrum analysis and other operations.
Deliver, shipping and serving
In today's rapidly changing market environment, providing impeccable customer service is critical to fostering lasting customer relationships. We adhere to the "customer-centric" policy and carry out rigorous and comprehensive assessments of various transportation routes such as rail, road and water. Our mission is to curate the right solution to precisely meet our customers' unique needs, always aiming to meet their expectations, and to ensure that every delivery reaches its destination on time, safely and accurately.
FAQ
Question 1: What is the data output format of the DX-530 portable digital flux gate meter?
A: TheDX-530 portable digital flux gate meter supports various data output formats, including ASCII text, CSV, Excel, and more. Users can choose the appropriate output format according to their needs and import the data into the corresponding software or system for processing and analysis.
Question 2: How does the DX-530 portable digital flux gate meter resist interference from external magnetic fields?
A: The DX-530 portable digital flux gate meter uses advanced fluxgate sensor technology and is designed for excellent magnetic field resolution and stability. We use high-performance magnetic shielding materials to reduce the impact of external magnetic fields on the sensor. Our software algorithms include dynamic filtering and interference cancellation capabilities to identify and eliminate interference from external magnetic fields in real-time.
Question 3: How does the DX-530 portable digital flux gate meter connect to a computer or other device?
A: The DX-530 portable digital flux gate meter supports connection to a computer or other device via USB or Bluetooth. Users may use the included software or third-party software to receive and process measurement data. In addition, we provide an API interface for users to integrate measurement data into their own systems.
