Magneto-optical Electromagnet

According to user requirements, we have the capability to design and produce various special-shaped, special-purpose electromagnets. These electromagnets can be customized to suit different usage scenarios, experimental requirements, and working environments, and can be assembled with different equipment. They are engineered to maintain the highest possible magnetic field and achieve maximum deformation.

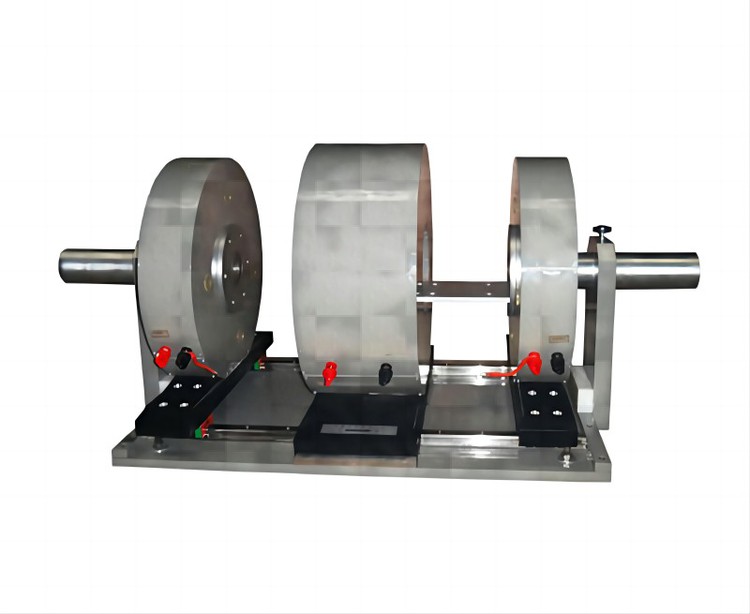

DXDY-75

1. Structure: The magnetic field of the three magnetic coils of the electromagnet is the same in the axial direction, and the middle line bag is hollow, fixed on the track, and the two sides of the line bag can move along the track to facilitate the placement of the sample. When the three line packages are close together, the magnetic circuit is closed. The magnetic field space diameter is 200mm, the length 200mm and the magnetic field direction is parallel to the ground.
2. the highest magnetic field H ≥ 0.1T.
3. power supply 10A 120V

DXDY-60

1. Structure: Electromagnetic single wire package double yoke upright seat, horizontal magnetic field direction, wireless package side pole punch hole, aperture 5mm. Upper yoke iron microscope lens hole, aperture 30mm;
2. The magnetic field air gap is 30mm, and the highest magnetic field is≥ 0.45T.
3. Power supply 20A 20V

DXDY-175

1. The electromagnet structure adopts a double-wire wrap-around magnetic circuit with a fixed air gap and the magnetic field is in the horizontal direction. The electromagnet is placed on the floor vehicle and can be moved back and forth on the track.
2. As shown in the figure, the pole tip is approximately 140mm from the top of the wire package, the magnetic pole area is approximately 80*80mm2, and the fixed air gap is not less than 65mm. The magnetic pole and wire package dimensions guarantee incident and reflected light at 90° in the magnetic field. Adoption.
3. In the air gap of ≥ 65mm with the use of power, in the maximum power, the magnetic field is≥ 0.5T, and the magnetic field in the center of the air gap has a uniform area of 20 * 20mm2 or more.
4. Power supply 5KW

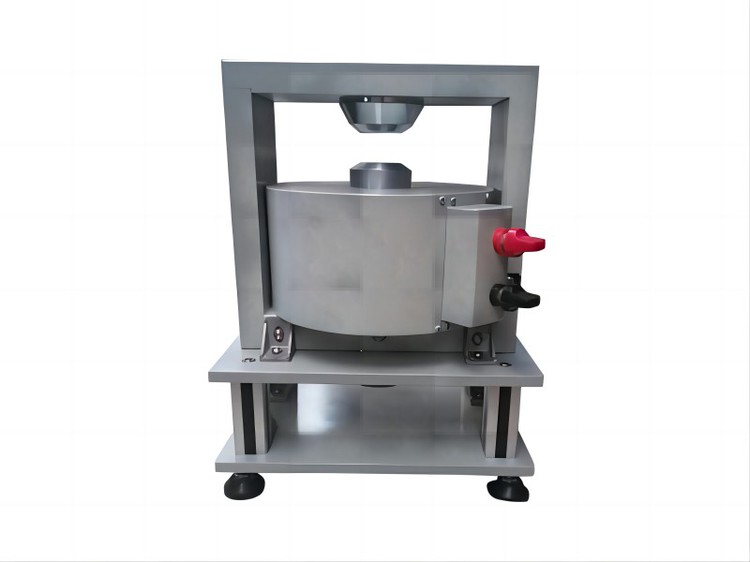

DXDY-80

1. Structure: Electromagnetic single wire package double yoke vertical seat, vertical magnetic field direction, wireless package side pole headshot hole, aperture 40mm, pole surface aperture 10mm. Lower pole adjustable;
2. The magnetic field air gap is 10mm, with the highest magnetic field H ≥ 1.0T.
3. Power supply 20A 20V

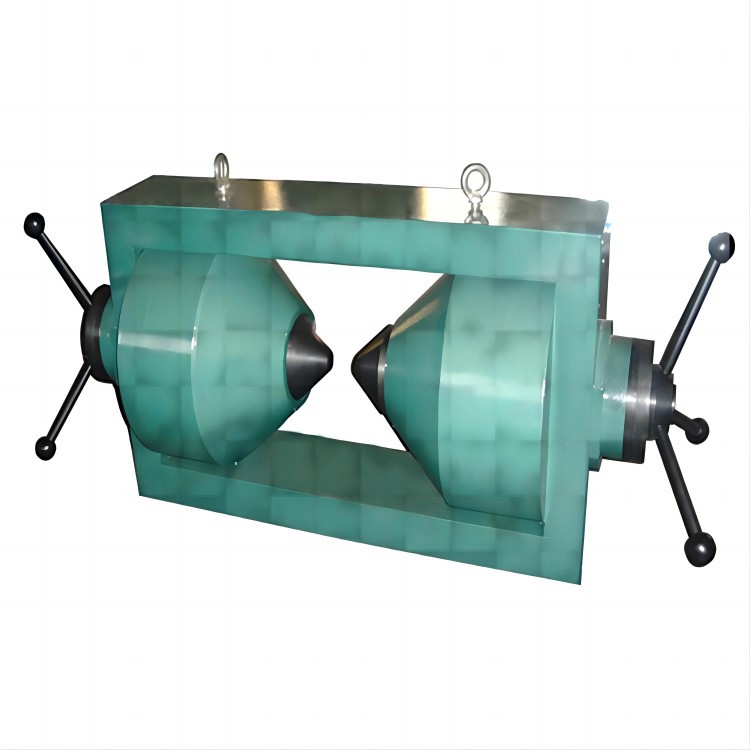

DXDY-130T

1. Structure: Kerr magneto-optic effect electromagnet, the double yoke is placed vertically, the magnetic field direction is horizontal, and the air gap is adjustable. The tower winding is made of wire winding to ensure that the angle between incident light and reflected light is greater than or equal to 90 degrees;
2. The magnetic field air gap is 10mm, with the highest magnetic field H ≥ 2.5T. When the air gap is 30mm, the magnetic field H ≥ 1.4T. 3, power supply 40A 80V.
