Product Introduction

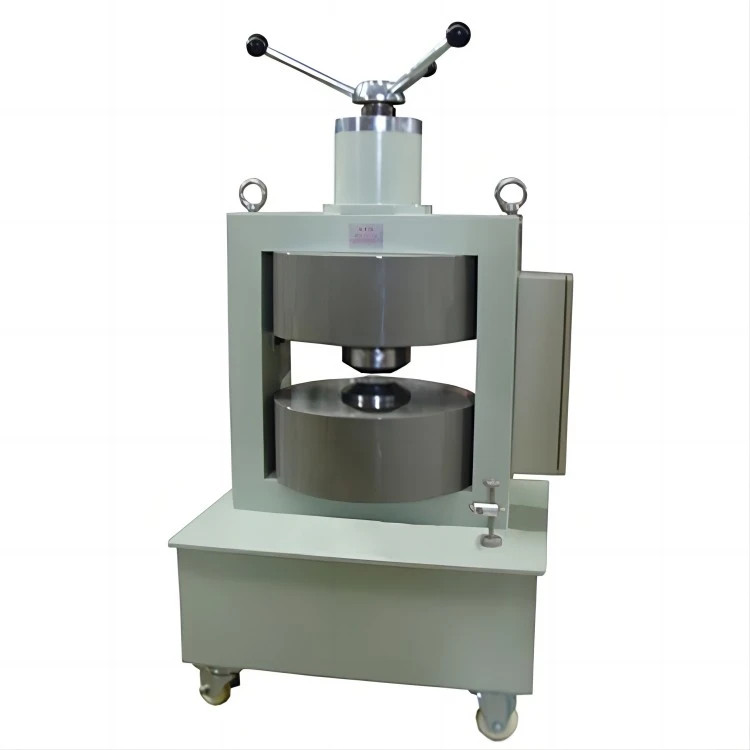

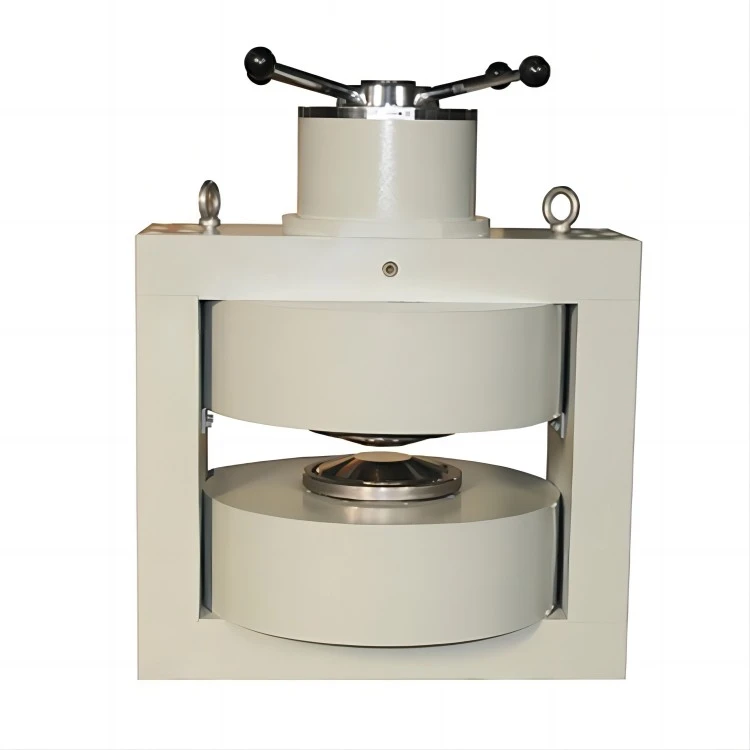

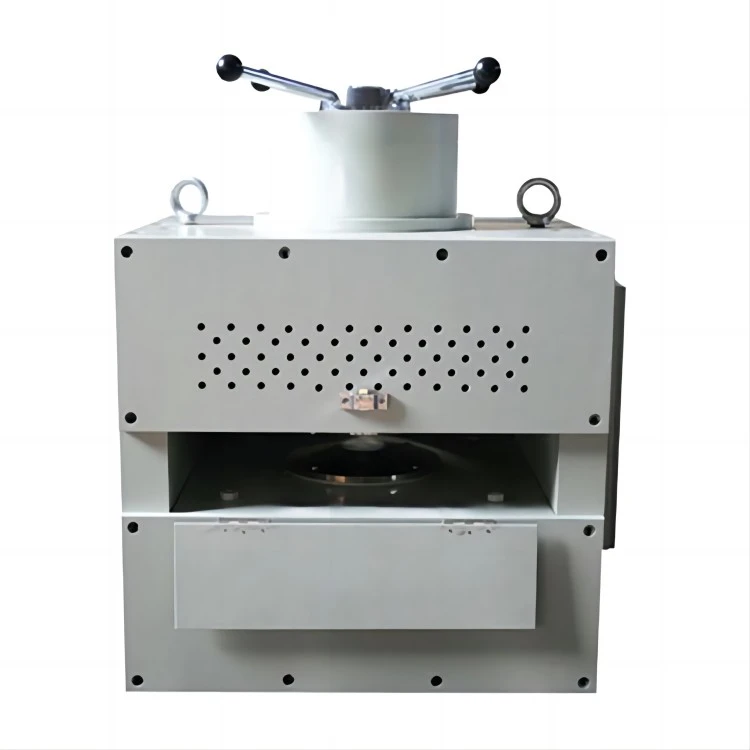

The DXSBV series electromagnet is a customized electromagnet from Dexinmag, with a unidirectional adjustable magnetic field air gap and a double yoke structure to form a closed magnetic circuit, which has good rigidity and a perpendicular magnetic field direction; Standing upright, the sample can be placed on the plane of the lower pole head, making it convenient to take and place the sample, suitable for multiple repeated measurements. Widely used in Hall effect research, magnetoresistance effect research, magnetostriction research, torque magnetometer, force magnetometer, magnetic susceptibility measurement device, magnetic material measurement device, as well as magnetization and demagnetization of magnetic devices.
|
Name of each part |
||||
|
1:Cross Yoke |
2:Stand Yoke |
3:Wire Package |

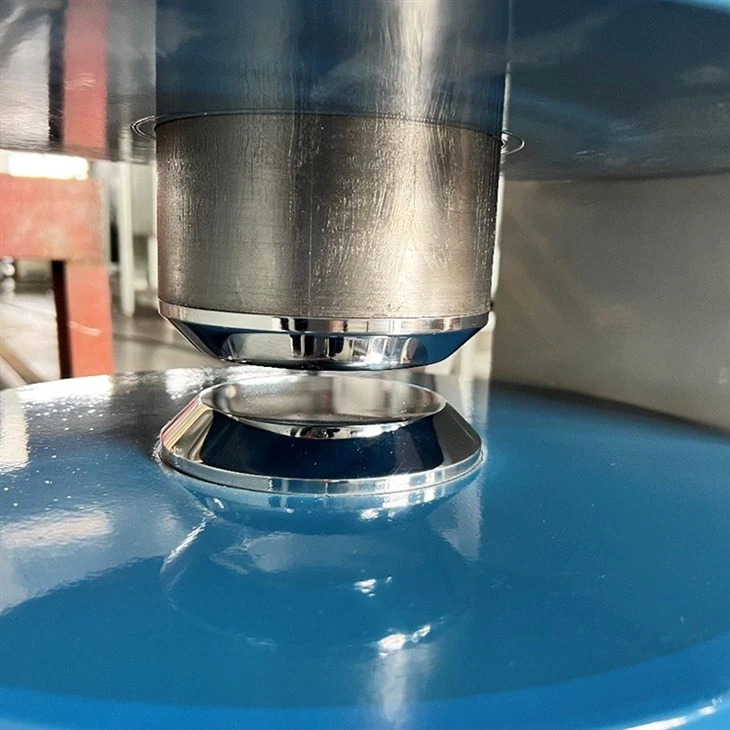

4:Pole Face |
5:Pole |
|
6:Banner |
7:Columm Sleeve |
|||
|
A:Line Pack Spacing |
B:Air Gap |
C:Center Height |
D:Center Horizontal distance |
E:Wire package diameter |
Product Parameter (specification)
Main specifications:
|
DXSBV Electromagnet Series Main Dimension DXSBV electromagnet |
|||||||
|
Model |
Pole Diameter pole diameter |
A |
B |
C |
D |
E |
Weight Weight |
|
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(Kg) |
|
|
DXSBV-50 |
50 |
80/Custom |
0-60 |
145 |
130 |
180 |
40 |
|
DXSBV-80 |
80 |
100/Custom |
0-80 |
190 |
180 |
260 |
135 |
|
DXSBV-100 |
100 |
120/Custom |
0-100 |
200 |
200 |
300 |
200 |
|
DXSBV-130 |
130 |
120/Custom |
0-100 |
250 |
240 |
260 |
430 |
|
DXSBV-175 |
175 |
120/Custom |
0-100 |
300 |
315 |
470 |
630 |
|
DXSBV-200 |
200 |
120Custom |
0-100 |
300 |
325 |
490 |
930 |
|
DXSBV-220 |
220 |
120/Custom |
0-100 |
310 |
405 |
610 |
1060 |
|
DXSBV-250 |
250 |
120/Custom |
0-100 |
320 |
340 |
540 |
1920 |
|
DXSBV-280 |
280 |
150/Custom |
0-120 |
360 |
415 |
670 |
2570 |
|
DXSBV-300 |
300 |
150/Custom |
0-120 |
360 |
470 |
740 |
3580 |
|
DXSBV-380 |
380 |
200/Custom |
0-120 |
495 |
620 |
850 |
6800 |
Technical parameters:
|
Model |
pole diameter |
Air gap adjustable range |
Standard Pole Head Pole Face Diameter |
Typical Air Gap |
Standard Pole Head Magnetic Field |
power |
|
SBV-50 |
Φ50 |
0-80 |
Φ50 |
10 |
1 |
0.3KW |
|
SBV-80 |
Φ80 |
0-80 |
Φ80 |
20 |
0.9 |
0.6KW |
|
SBV-100 |
Φ100 |
0-100 |
Φ60 |
10 |
2 |
2.0KW |
|
Φ100 |
10 |
1.5 |
||||
|
SBV-130 |
Φ130 |
0-120 |
Φ60 |
10 |
2.5 |
3.8KW |
|
Φ100 |
30 |
1.2 |
||||
|
SBV-175 |
Φ175 |
0-120 |
Φ80 |
10 |
2.4 |
6.5KW |
|
Φ100 |
30 |
1.8 |
||||
|
SBV-200 |
Φ200 |
0-140 |
Φ80 |
10 |
2.6 |
10.0KW |
|
Φ120 |
30 |
1.9 |
||||
|
SBV-250 |
Φ250 |
0-140 |
Φ120 |
25 |
2.3 |
12.0KW |
|
SBV-280 |
Φ280 |
0-140 |
Φ120 |
25 |
2.6 |
12.0KW |
Case Showcase:
|
Model |
Main Indicators |
Reference picture |
|
DXSBV-130 |
1. Structure: The electromagnet is a double-yoke monotone upright seat, the pole is unidirectionally adjusted to the variable air gap, and the magnetic field direction is perpendicular to the ground. 2. The diameter of electromagnet pole is φ 130, equipped with a pole head with a diameter of 60mm, the spacing between wire packages is 120mm, and the air gap can be adjusted from 0 to 100mm. 3. When the air gap is 10mm, the magnetic field H≥ 2.6T. Electromagnet internal cooling water cooling structure, when the magnetic pole spacing is 25mm, the magnetic field is 1.7T, the sustainable working time is 30 minutes; scanning magnetic field can work for a long time. 4. Magnetic field uniformity: when the magnetic field is 15mm air gap, the magnetic field uniformity is better than 0.1 in the area of Φ10*10mm3 in the center. 5, wire package resistance is 5.0 ohms, rated power supply power 3.0KW 6. User power supply: 30A150V. |
|
|
DXSBV-200 |
1. Structure: The electromagnet is a double-yoke monotone upright seat, the pole is unidirectionally adjusted to the variable air gap, and the magnetic field direction is perpendicular to the ground. 2. The diameter of electromagnet pole is Φ200mm, the diameter of pole head is 80mm, the distance between wire and package is 120mm, and the air gap can be adjusted from 0 to 100mm. 3. When the air gap is 10mm, the magnetic field H≥ 2.8T. Electromagnet internal cooling water cooling structure, when the magnetic pole spacing of 30mm, the magnetic field is 2.3T, the sustainable working time is 10 minutes; scanning magnetic field can work for a long time. 4. Magnetic field uniformity: when the magnetic field is 20mm air gap, the magnetic field uniformity is better than 0.1 in the region of Φ10*10mm3 in the center. 5, wire package resistance is 5.0 ohms, rated power 8.0KW 6. User power supply: 50A240V. |
|
|
DXSBV-250 |
1. Structure: The electromagnet is a double-yoke monotone upright seat, the pole is unidirectionally adjusted to the variable air gap, and the magnetic field direction is perpendicular to the ground. 2. The diameter of electromagnet pole is Φ250mm, the diameter of pole head is 120mm, the distance between wire and package is 120mm, and the air gap can be adjusted from 0 to 100mm. 3. When the air gap is 10mm, the magnetic field H≥ 2.6T. Electromagnet internal cooling water cooling structure, when the magnetic pole spacing of 30mm, the magnetic field is 2.2T, the sustainable working time is 10 minutes; scanning magnetic field can work for a long time. 4. Magnetic field uniformity: When the magnetic field is 20mm air gap, the magnetic field uniformity is better than 0.1 in the region of Φ20*20mm3 in the center. 5, wire package resistance is 5.0 ohms, rated power 10.0KW 6. User power supply: 50A240V. |
|
