Adjustable-Gap Laboratory Electromagnet System
Overview

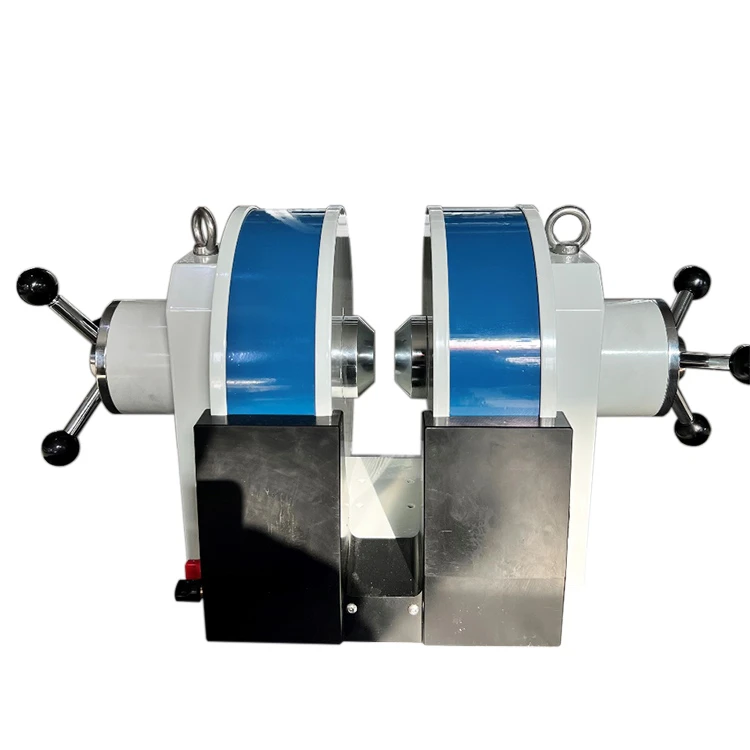

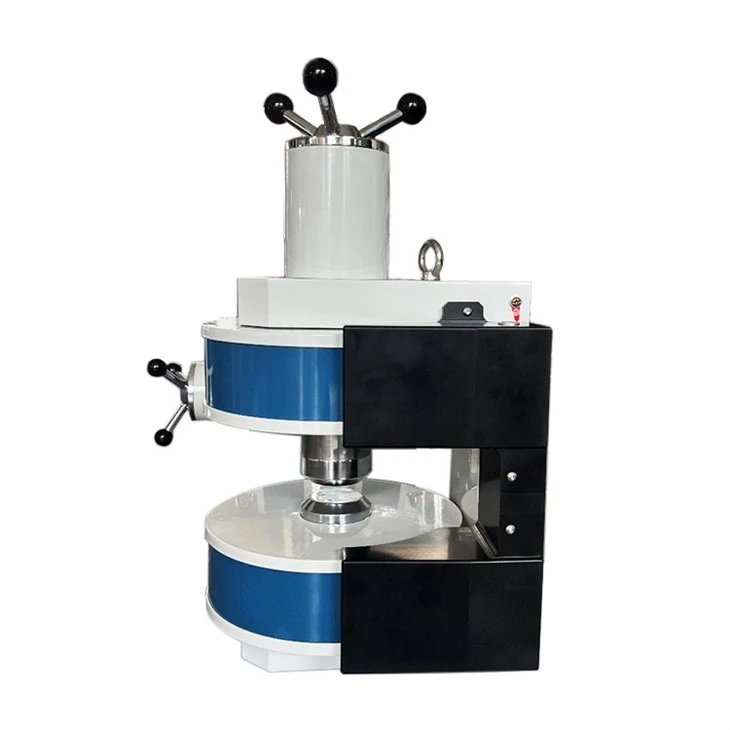

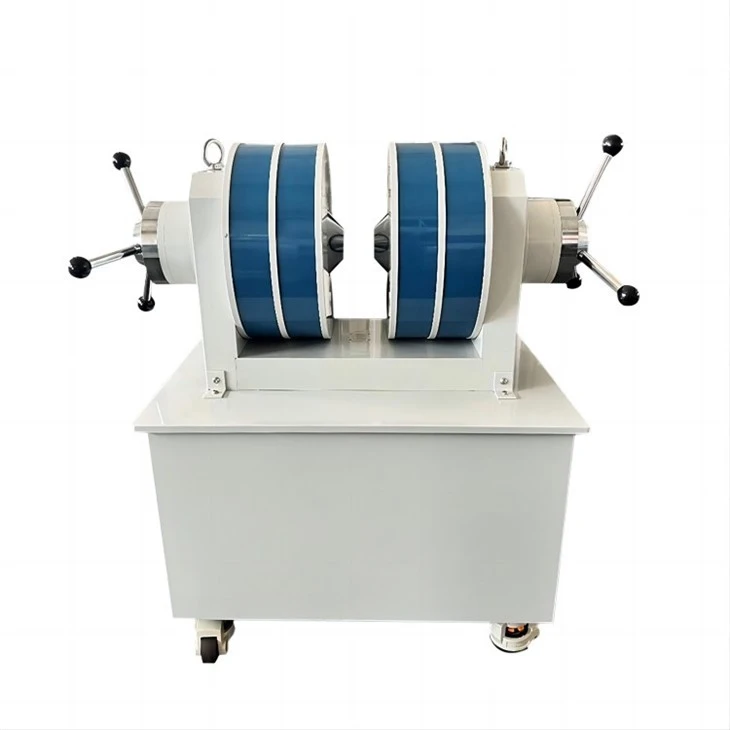

The DXWD series electromagnet (U-core design) features a versatile single-yoke framework with horizontal magnetic orientation and a vertically mounted structure. Its bidirectional adjustable air gap and open workspace simplify sample handling and integration with auxiliary instruments, making it ideal for precision magnetic studies. Applications include Hall effect analysis, magnetoresistance testing, torque/vibration magnetometry, and material characterization.

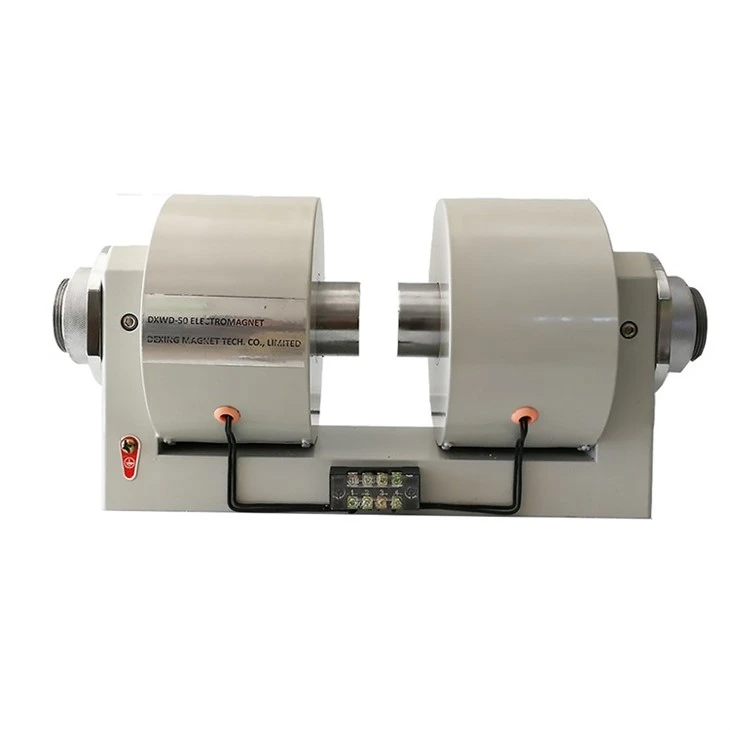

Key Components
- Cross Yoke
- Vertical Support
- Coil Assembly
- Pole Face
- Magnetic Pole
- Adjustment Mechanism
- Column Housing

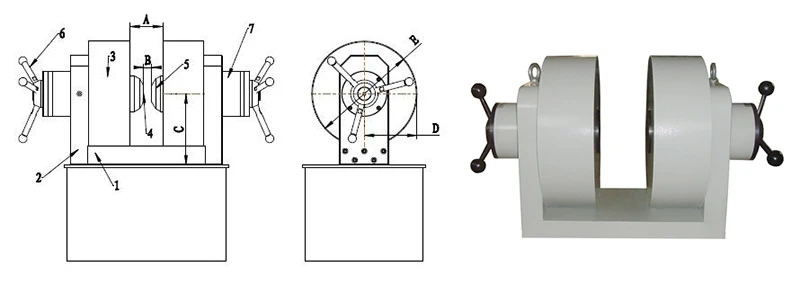

Design Metrics
- Coil Spacing (A)
- Adjustable Gap (B)
- Central Height (C)
- Horizontal Span (D)
- Coil Diameter (E)
Technical Specifications
| Model | Pole Diameter (mm) | Air Gap Range (mm) | Max Field (T) | Power Rating | Weight (kg) |
|---|---|---|---|---|---|
| DXWD-50 | 50 | 0–80 | 0.9 @10mm | 0.3 kW | 40 |
| DXWD-100 | 100 | 0–100 | 1.8 @10mm | 1.6 kW | 200 |
| DXWD-130 | 130 | 0–120 | 2.3 @10mm | 3.0 kW | 430 |
| DXWD-200 | 200 | 0–140 | 2.6 @10mm | 8.0 kW | 930 |
| DXWD-380 | 380 | 0–180 | 2.2 @40mm | 20.0 kW | 6800 |
Notes:
- Field strength varies with air gap size.
- Natural cooling ensures stable operation (<30°C rise at rated load).
Application Highlights

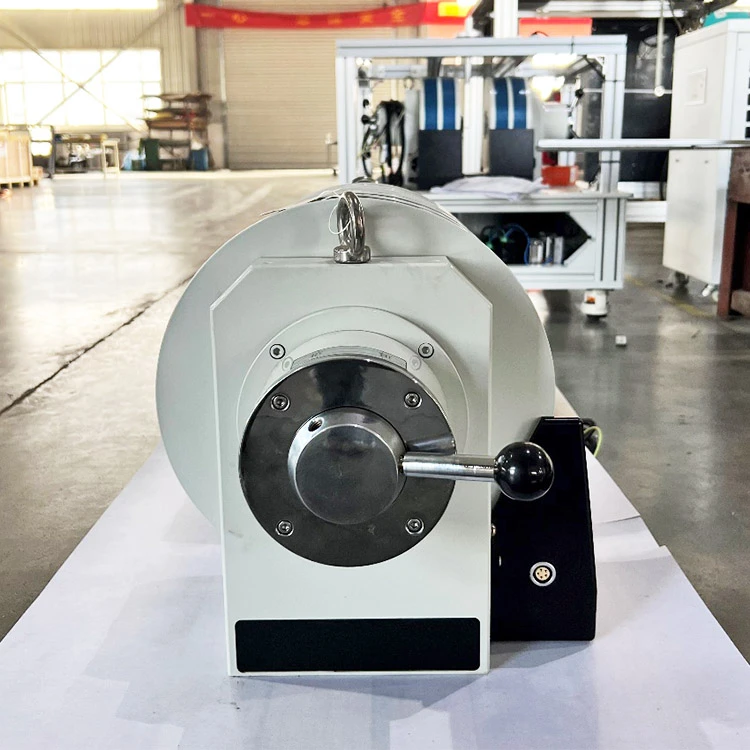

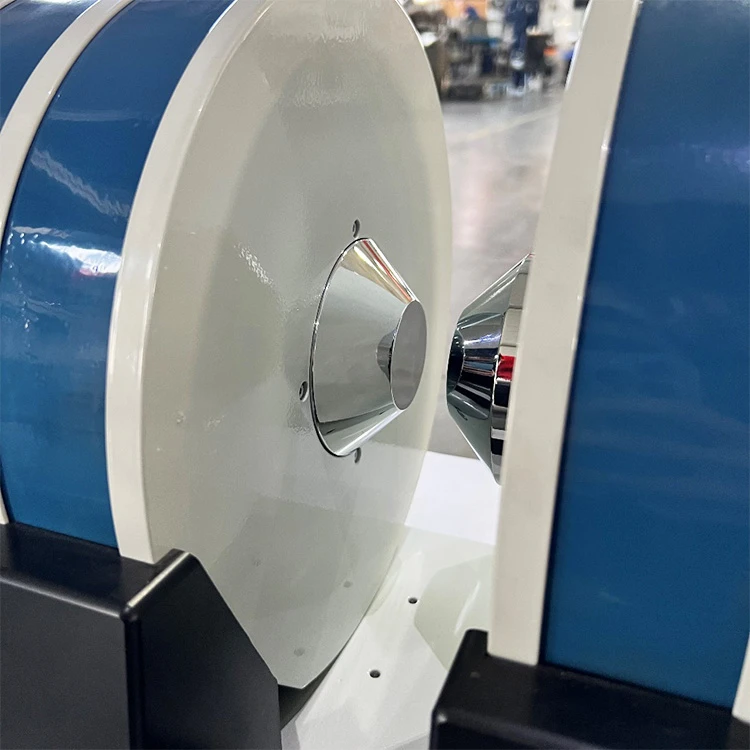

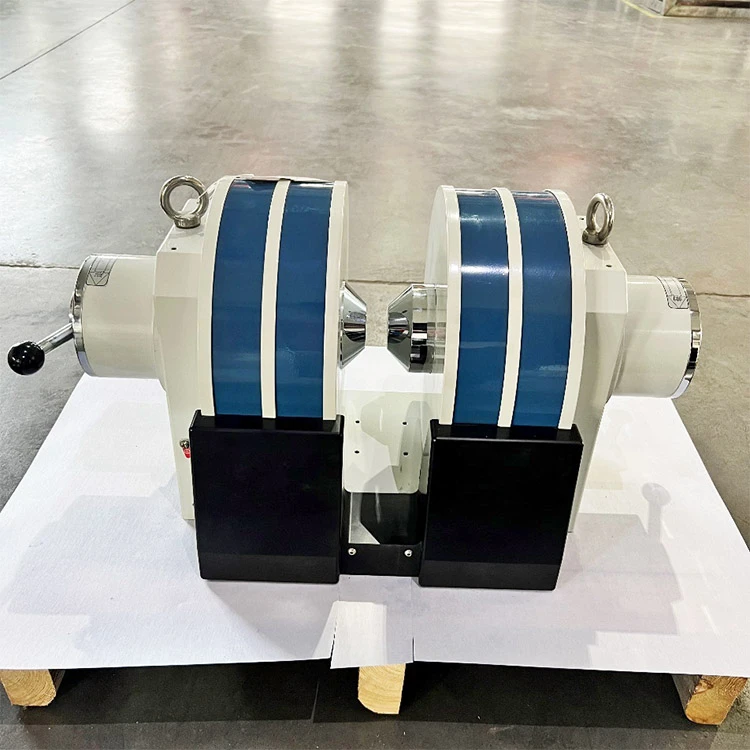

1. DXWD-100 Compact Research Model
- Adjustable gap (0–100mm) with 100mm pole.
- Delivers 1.6T at 10mm gap; operates at 1.0T for 30+ mins.
- Compact design (200kg) suits benchtop setups.

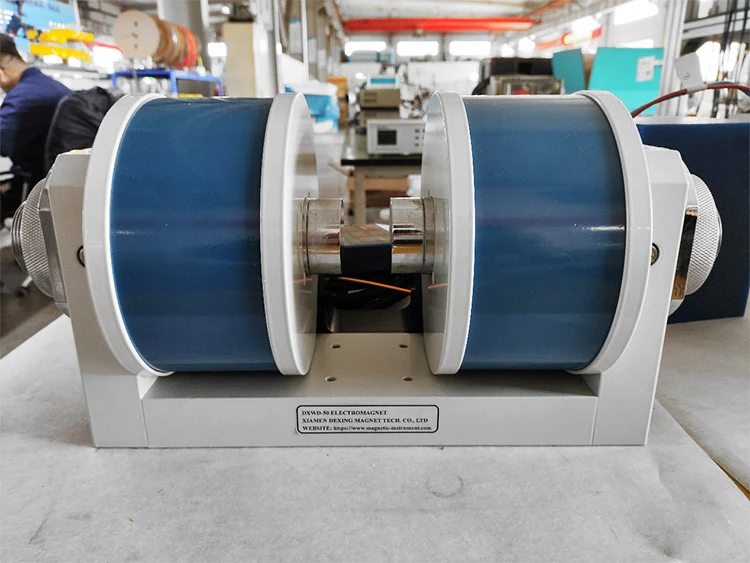

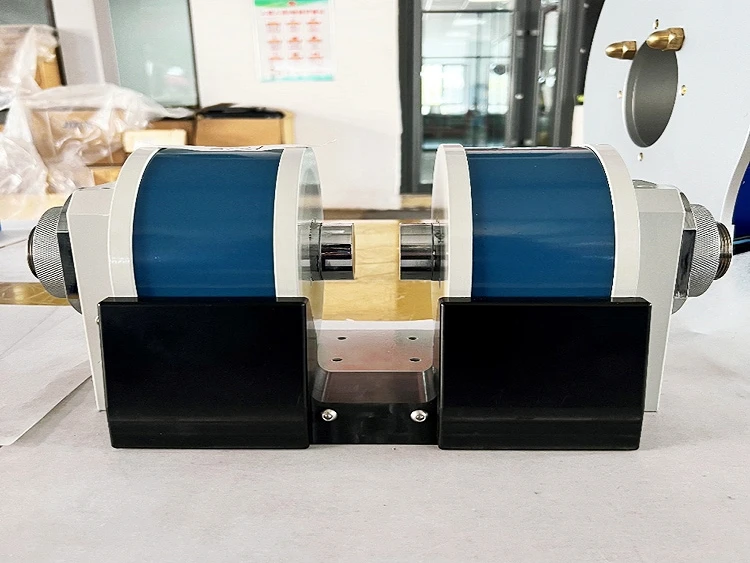

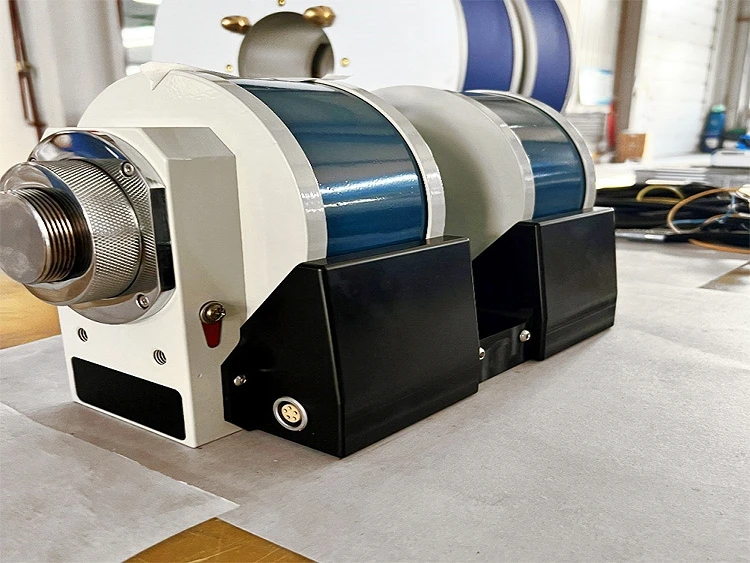

2. DXWD-50 Entry-Level Unit
- 50mm pole, 80mm max gap.
- Achieves 1.0T at 10mm gap; ideal for prolonged low-field experiments.

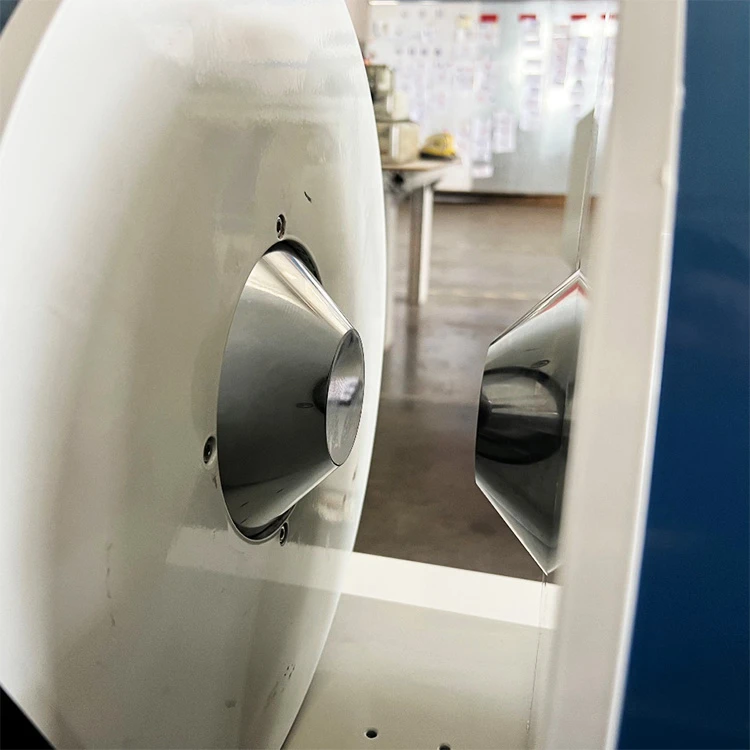

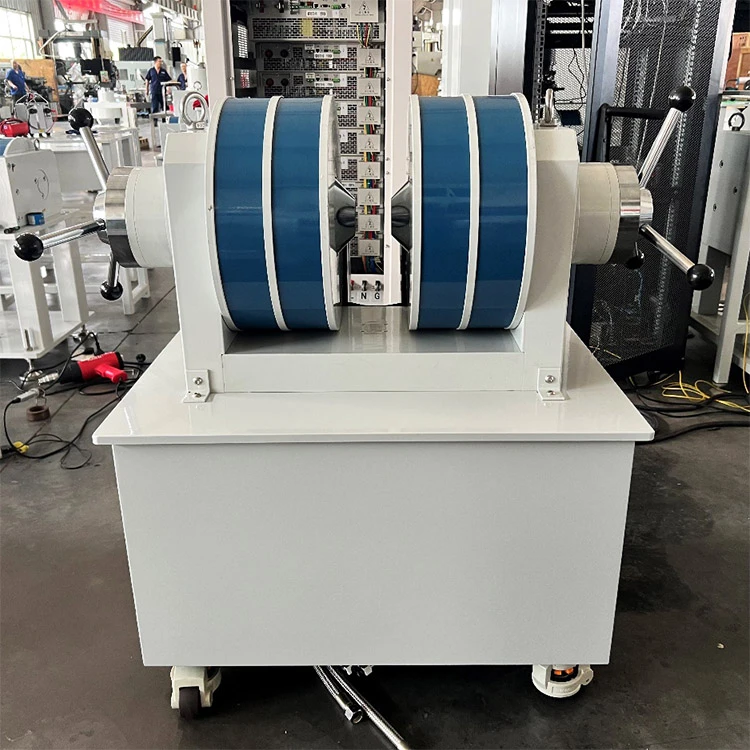

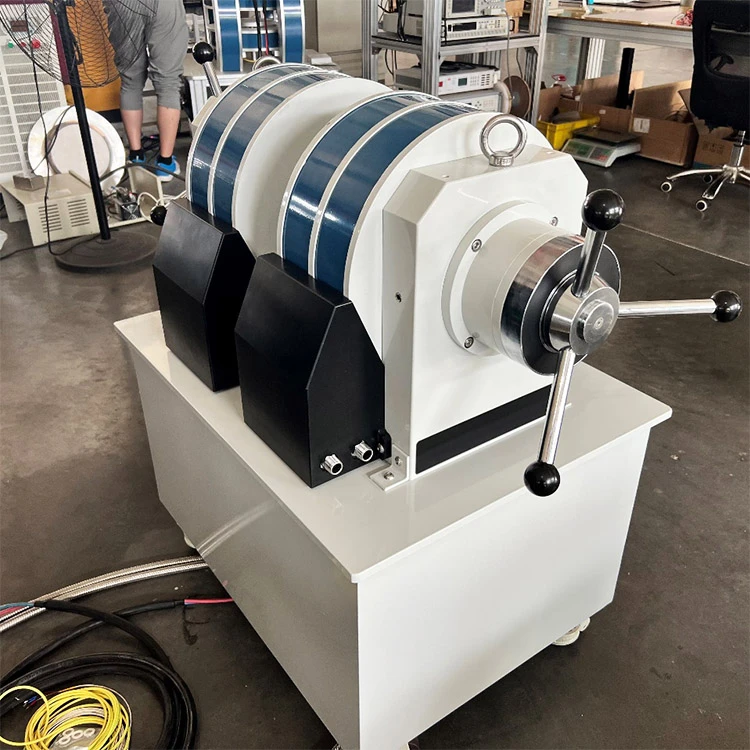

3. DXWD-130 High-Performance Option
- 130mm pole, 120mm adjustable range.
- Generates 2.5T at 10mm gap; supports extended operation at 1.5T.
Global Logistics & Support
- Shipping Options: Sea, air, or express courier.
- Service Commitment: Real-time tracking and dedicated technical assistance.
Designed for precision, scalability, and seamless integration in advanced research environments
