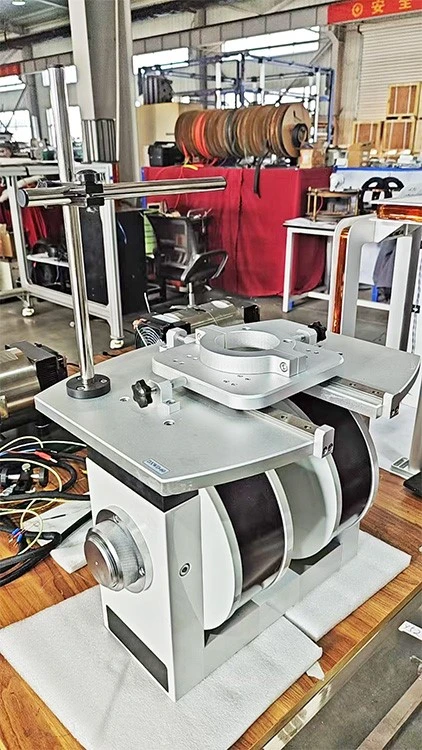

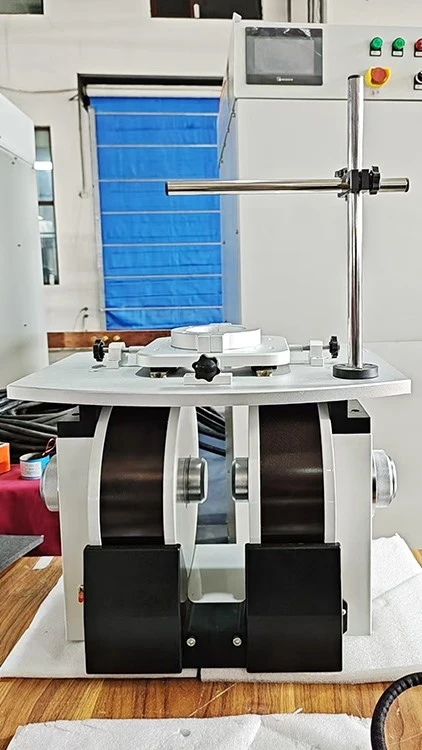

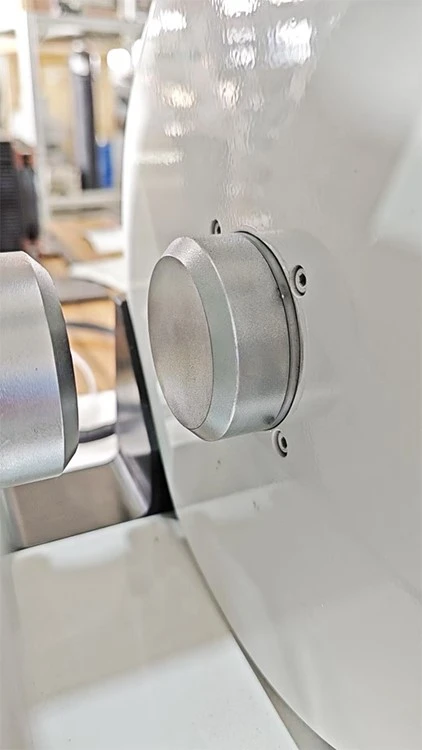

DXWD-60 Hall Effect Electromagnet: Performance Validation Report
Physical Specifications:
Length: 439 mm | Width: 340 mm | Height: 670 mm
Unit Mass: 98 kg
Performance Validation Summary
1. Evaluation Objectives
- Assess product conformance against technical specifications
- Document performance metrics for design reference and customer support
- Establish factory release compliance
2. Product Identification
Component: Hall Effect Electromagnet
Model: DXWD-60
Test Date: May 19, 2025
3. Test Conditions
Validation occurred under simulated operational environments:
- Ambient Temperature: 19.0°C
- Initial Component Temperature: 19.0°C
- Environmental Magnetic Field: 0-30 μT (stable geomagnetic period)
- Instrumentation preheated per standard calibration protocols
Magnetic Field Validation
Equipment:
- Power Source: DX-F2031
- Flux Density Meter: DX-180 Gauss Meter
Methodology:
Fixed-point flux density measurement at 35mm air gap yielded these results:
| Drive Current (A) | Supply Voltage (V) | Magnetic Flux Density (mT) |
|---|---|---|
| 1.0 | 11.89 | 113.28 |
| 2.0 | 24.07 | 224.09 |
| 3.0 | 36.08 | 334.08 |
| 4.0 | 48.14 | 442.95 |
| 4.6 | 55.55 | 509.84 |
| 5.0 | 60.34 | 551.48 |
Electrical Characteristics
Equipment:
- Precision Multimeter
- LCR Meter
Methodology:
Bridge circuit and voltammetric analysis confirmed resistance values:
- Measured @ 19°C: 11.970 Ω
- Normalized @ 20°C: 12.025 Ω
- Projected @ 85°C: 15.621 Ω
Certification Statement
Validation testing confirms compliance with all magnetic field and electrical performance requirements. This report constitutes the definitive performance record for release authorization.
