Dexinmag Releases Quality Inspection Report for DXHC16-05 One-dimensional AC Helmholtz Coil
Dexinmag, a leading provider of electromagnetic solutions, has recently published a comprehensive quality inspection report for its DXHC16-05 One-dimensional AC Helmholtz Coil. The report details the performance and specifications of this advanced electromagnetic device, which is designed to meet stringent technical requirements in various applications.

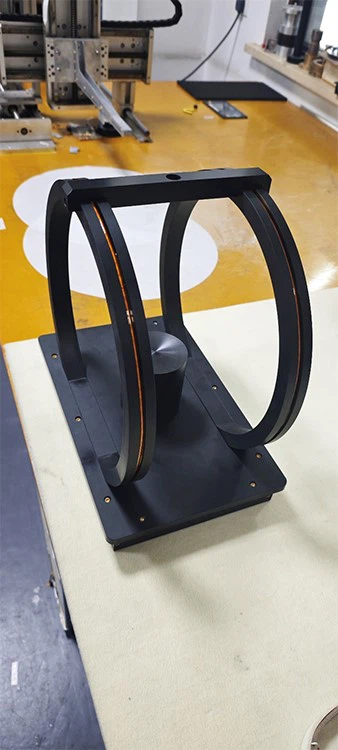

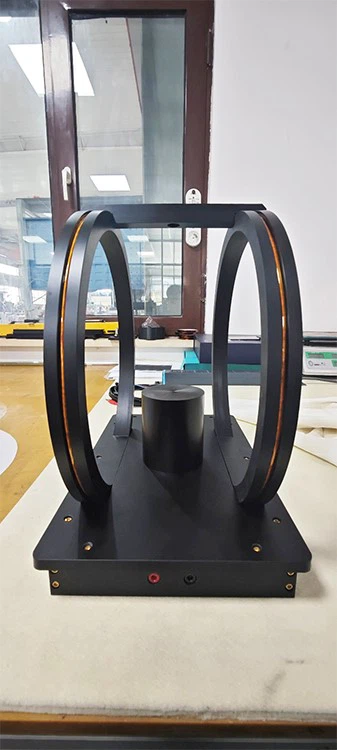

The DXHC16-05 Helmholtz Coil, with overall dimensions of 350mm x 225mm x 350mm and a weight of 3.49kg, boasts an inside diameter of 290mm and an outside diameter of 330mm. The coil spacing is set at 135mm, optimizing its electromagnetic properties.
Key findings from the quality inspection indicate that the magnetic field and electrical performance of the DXHC16-05 meet the required technical parameters. The report highlights the coil's ability to generate a stable and uniform alternating magnetic field, with a coil coefficient of 0.056 Gs/A. At a frequency of 100 KHz, the alternating magnetic field intensity reaches 0.52 Gs, demonstrating its high precision and reliability.
The inspection process involved rigorous testing of the magnetic field uniformity and electrical parameters. Using advanced equipment such as the DX-F2031 power supply, DX-180 Gauss Meter, and DXACP Power Amplifier, engineers conducted fixed-point measurements to assess the magnetic field strength at various target points. The results showed minimal variation, with a uniformity of -0.63% within a specified area.
Electrical parameter tests, utilizing digital multimeters and impedance analyzers, confirmed the coil's consistent performance across a range of frequencies. The measurement data for resistance, inductance, and reactance at different temperatures and frequencies provided valuable insights into the coil's electrical characteristics.
Dexinmag's commitment to quality is evident in the detailed and transparent reporting of the DXHC16-05's performance. This one-dimensional AC Helmholtz Coil is now available for customers seeking precise and reliable electromagnetic solutions.
For more information on the DXHC16-05 or to discuss customization options, please contact Dexinmag's customer service team.
Dexinmag continues to lead the way in electromagnetic technology, providing innovative solutions for a wide range of industries.
