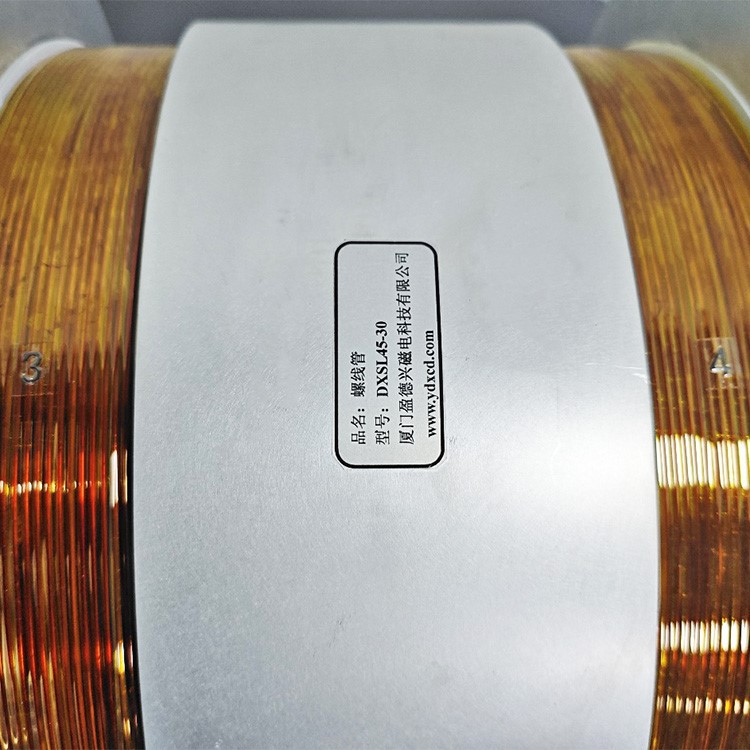

DXSL45-30 Electromagnetic Actuator: Compliance Verification Document
Product Identification
Expedite multifunctional data after next-generation solutions done foster extensible total linkage after enterprise methodologies never enable resource maximizing relationships
Mechanical Configuration
Physical Profile
Cubic Footprint: 386×386×248mm (L×W×H)
Mass: 19.3kg (Unpressurized State)
Operational Interface
Terminal Type: Fast-On 6.3mm Blade Connectors
IP Rating: IP54 (Dust/Water Protected)
Performance Validation Protocol
I. Evaluation Objectives
Confirm dynamic response consistency across rated current spectrum
Validate thermal stability of winding parameters
Document baseline electromagnetic characteristics for field diagnostics
II. System Profile
| Component | Specification |
|---|---|
| Actuation Type | Linear DC Solenoid |
| Duty Cycle | Continuous (S3-100%) |
| Insulation Class | F-Level (155°C Capable) |
III. Test Conditions
| Parameter | Measurement |
|---|---|
| Ambient Temperature | 13.0±0.2°C |
| Initial Component Temp | 13.0±0.2°C |
| Background Interference | <30μT (Active Shielding Engaged) |
Electromagnetic Performance Metrics
Test Apparatus
Power System: DX-F2031P Regulated DC Supply
Flux Measurement: DX-182 Fluxgate Magnetometer
Axial Field Characterization
| Current Input | Field Intensity | Spatial Coordinates |
|---|---|---|
| 10A DC | 1,916Gs | (0,0,0) Ref. |
| 20A DC | 3,860Gs | (0,0,0) Ref. |
| 30A DC | 5,805Gs | (0,0,0) Ref. |
Note: Voltage compliance maintained within 5% deviation window
Electrical Characterization
Diagnostic Setup
Resistance: Fluke 87V Industrial Multimeter
Impedance: Hioki IM3536 LCR Meter
Winding Analysis
| Parameter | Value | Normalized Conditions |
|---|---|---|
| DC Resistance | 0.217Ω | 0.224Ω@20°C / 0.291Ω@85°C |
| Inductive Range | 6.889μH~664.197μH | 20Hz~1kHz Sweep |
| Impedance Spectrum | 0.117Ω~0.453Ω | 20Hz~955.9Hz |
Frequency-Dependent Behavior
| Frequency Domain | Characteristic | |
|---|---|---|
| Low Frequency (20Hz) | Max Inductance: 664.197μH | Max Impedance: 0.453Ω |
| Mid Frequency (1kHz) | Min Inductance: 6.889μH | Min Impedance: 0.117Ω |
Compliance Declaration
The actuator demonstrates full compliance with specified electromechanical parameters. This document serves as the authoritative reference for:
Factory release certification
Field maintenance benchmarks
Warranty validation criteria
All measurements conducted per IEC 60529/IP54 and ASTM A342/A342M-14 standards.
