BH Tracer Hysteresis Graph Test System – Magnetic Property Measurement Solution

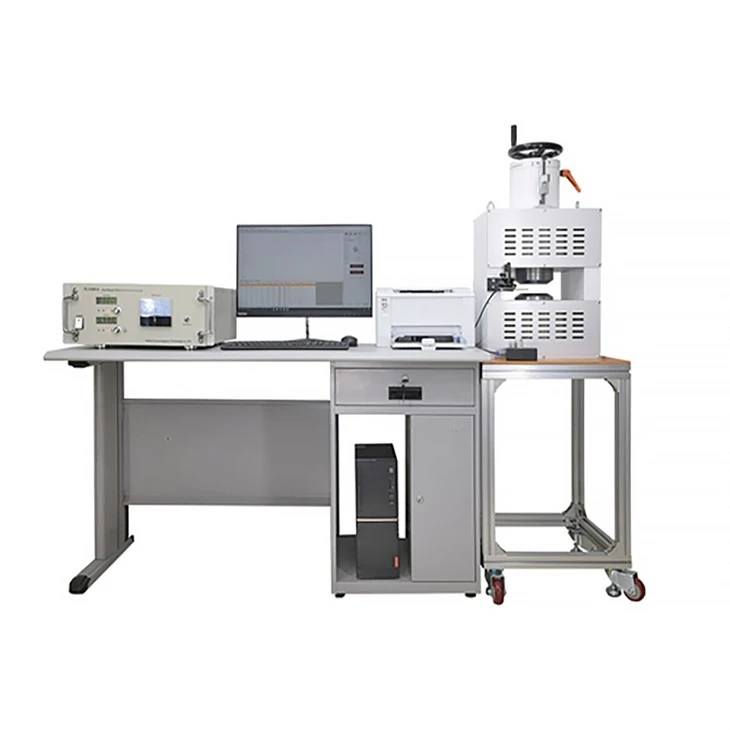

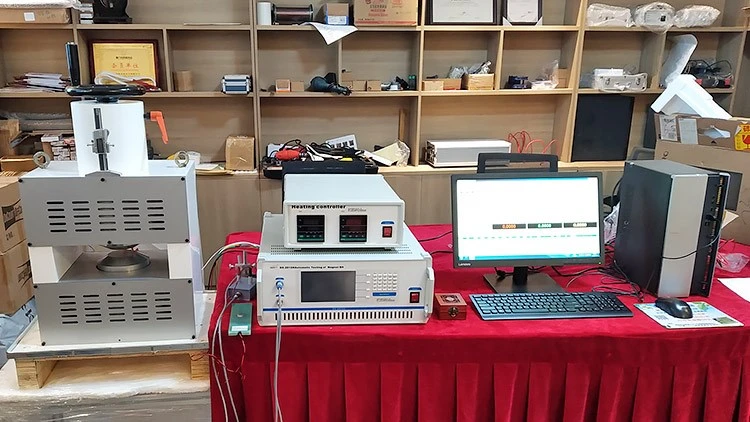

The BH Tracer Hysteresis Graph Test System (DX-2012H Series) is a precision-engineered magnetic testing instrument used to evaluate the full spectrum of magnetic properties in permanent magnets such as NdFeB, SmCo, Ferrite, and Alnico. Designed for advanced R&D laboratories, manufacturing plants, and academic institutions, this system delivers fast, reliable measurements of hysteresis curves, magnetization, flux density, demagnetization, and more.

Product Introduction

The DX-2012H permanent magnetic material measurement system is a highly advanced and sophisticated instrument that is widely used in a variety of industries and applications. The system is designed to accurately detect and measure the magnetic properties of various permanent magnet materials, including ferrite, neodymium-iron-boron (NdFeB), samarium cobalt (SmCo), and alnico.

The main function of the DX-2012H system is to perform a range of tests and measurements on permanent magnet materials, including magnetization curve measurement, magnetic hysteresis loop measurement, magnetic flux density measurement, magnetic field distribution measurement, demagnetization curve measurement, and more. The system is equipped with highly sensitive sensors and advanced data processing algorithms that are capable of providing accurate and reliable results even in challenging testing environments.

The DX-2012H system is widely used in a variety of industries, including the automotive, aerospace, defense, and electronics industries, as well as in research institutes and universities. Some of the common applications of the system include quality control and assurance, material development, magnetic design and modeling, magnetic device testing, and failure analysis.

The DX-2012H system is highly versatile and customizable, and can be tailored to meet the specific requirements and needs of different industries and applications. The system is easy to operate and can be used by both novice and experienced users

with minimal training. It also has a user-friendly interface that allows users to quickly and easily access and analyze test results.

In conclusion, the DX-2012H permanent magnetic material measurement system is an essential tool for anyone working with permanent magnet materials. Its advanced features and capabilities make it an ideal choice for a variety of applications, and its accuracy and reliability are second to none. With its user-friendly interface and customizable options, the DX-2012H is an instrument that will undoubtedly improve the quality and efficiency of any permanent magnet material testing process.

Specification

Item	Parameters

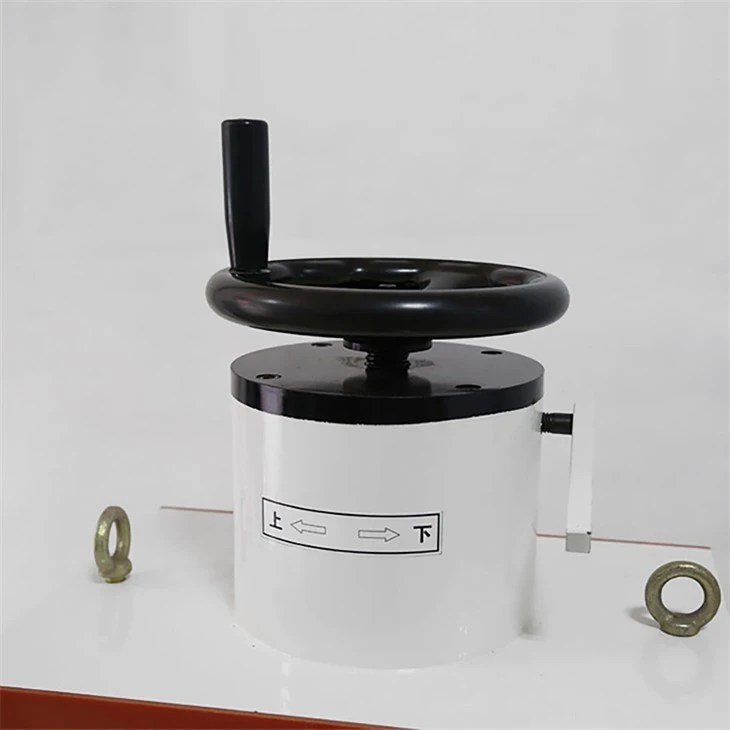

Electromagnet	DXT130	Head Diameter: 130mm Head Spacing: 0 ~ 50mm (continual adjustable) Maximal Magnetic Field: 1.5T (head spacing 10mm, coil current 20A)
	DXT-150	Head Diameter: 150mm shrink to 80mm Head Spacing: 0 ~ 50mm (continual adjustable) Maximal Magnetic Field: 2.4T (head spacing 10mm, coil current 30A)
	DXT-200	Head Diameter: 200mm shrink to 120mm Head Spacing: 0 ~ 50mm (continual adjustable) Maximal Magnetic Field: 2.4T (head spacing 10mm, coil current 40A)
	DXT-250	Head Diameter: 250mm shrink to 150mm Head Spacing: 0 ~ 50mm (continual adjustable) Maximal Magnetic Field: 2.7T (head spacing 10mm, coil current 80A)
Test power	Output Voltage: 0 ~±100V Output Current:±20A (maximum value) Stability: superior to 0.05% Stability: superior to 0.05%
DX-210B Fluxmeter	Range: 2.5, 5, 10, 20mWb Full Range Precision: 0.5% Zero Shift: 2µWb /30 seconds (2.5mWb)
DX-210H Magnetometer	Range: 0.5, 1, 1.5, 3T Full Range Precision: 0.5% Non-Linearity:±0.2% (software correction)
PC6616 A/D D/A card	A/D Conversion: 16 bits,16 channels Conversion Time: < 10µs Conversion Accuracy: 0.02% (full range) D/A Conversion: 12 bits, 2 channels Conversion Accuracy: 0.1% (full range)

2.1Configuration

2.2Models for reference

Serial No.	Product Model	DX-2012H130	DX-2012H150	DX-2012H200	DX-2012H250
1	Electromagnet Model	DXT130	DXT150	DXT200	DXT250
2	Test Power Supply	2kW	3kW	4kW	8kW
3	Fluxmeter Configuration	One DX-210B		Two DX-210B
4	Magnetometer	DX-210H
5	Data Acquisition Card	PC6616
6	Measurement Software	HMTest partial functions	HMTest all functions
7	Computer	Dell Dimension E-520n computer
8	Standard Specimen	One AlNiCo standard sample
9	Fixed Coil	One B coil	One J coil	J coil + H coil	J coil + H coil
10	Test Specimen Category	AlNiCo Ferrite	AlNiCo Ferrite NdFeB	AlNiCo Ferrite NdFeB SmCo	AlNiCo Ferrite NdFeB SmCo
11	Specimen Size (with the round sample as an example)	Diameter 3 ~ 100mm Thickness 3 ~ 50mm < 130 - 1.2H	General permanent magnetic: 3 ~ 60mm H3 ~ 50mm Rare earth permanent magnetic: 5 ~ 20mm H5 ~ 15mm	General permanent magnetic: 3 ~ 90mm H3 ~ 50mm Rare earth permanent magnetic: 5 ~ 30mm H5 ~ 20mm	General permanent magnetic: 3 ~ 120mm H3 ~ 50mm Rare earth permanent magnetic: 5 ~ 50mm H5 ~ 30mm

2.3 Optional accessories

Serial No.	Options Name	Functional Description	Remark
1	B Coil	Direct measurement on sample magnetic induction density, winding unnecessary	Customized, and adaptable to the measurement of general permanent-magnet material
2	J Coil	Direct measurement on sample magnetical polarization, winding unnecessary	Customized, and adaptable to the measurement of all permanent-magnet materials
3	Common Head	Work with an electromagnet to generate a uniform magnetic field	DCT130 standard configuration, other models optional
4	Horn Head	Generate a larger uniform magnetic field	All models of electromagnet optional
5	Shrinkage Head	Applies to improve the maximal magnetic field of an electromagnet	DCT130 optional, other models with standard configuration
6	Iron Cobalt Head	Can improve the maximal magnetic field for about 0.3T	Only DCT200 and DCT250 optional

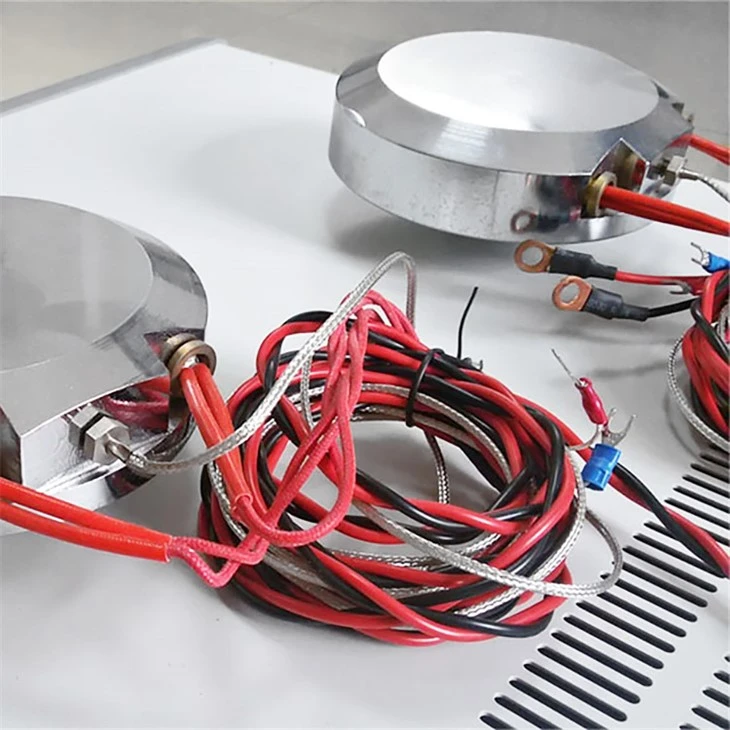

7	Heat Head	This applies to measuring high-temperature properties of permanent-magnet material	All models of electromagnet optional
8	TCS-200 Temperature Controller	Applies to control temperature of heat head, control range: 50 ~ 250°C	Optional, can match with various heat heads
9	Tile Jig	This applies to measuring magnetic shoe	Optional parts, customize according to magnetic shoe size, to match electromagnet with corresponding size

Product features and application

● Operating system: Win XP/7/8/10 Chinese or English operating system;

● Language display: support Chinese or English bilingual display;

● Operating characteristics:

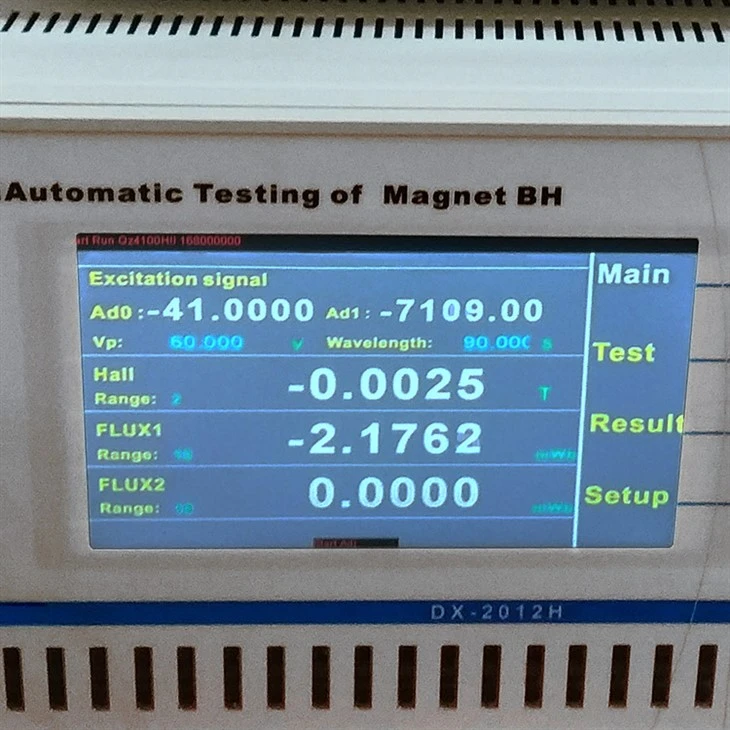

(1) The test waveform curve is displayed in real time during the measurement, and the measurement can be stopped at any time;

(2) The software can display up to 4 measurement curves at the same time, and compare the differences under different conditions more intuitively;

(3) The software has built-in temperature coefficients of various materials, which can provide data reference for temperature correction;

(4) The measurement cycle is 30-120 seconds (depending on the sample type and the proficiency of the operator);

● Storage Features:

(1) Measurement results are automatically saved (saved by test number or saved by manual intervention)

(2) sample number, size, parameters and other data can be automatically saved to reduce manual errors;

(3) The software has a print preview function, and can also directly print the measurement results and test curves;

(4) The measurement results and test curves can be output in graphic formats such as BMP, and can also be exported to data table form, and can be used for statistical processing by software such as Excel;
